Our Cell Module Assembly (CMA) units are packed and protected in a diecast aluminum casing for protection and durability.
A total solution that serves both OEMs and operators. OEMs can expect seamless integration with equipment and serviceable components. Operators receive instant, reliable power for the job at hand.
The modular battery pack was designed by our expert engineers to deliver electric power you can count on.

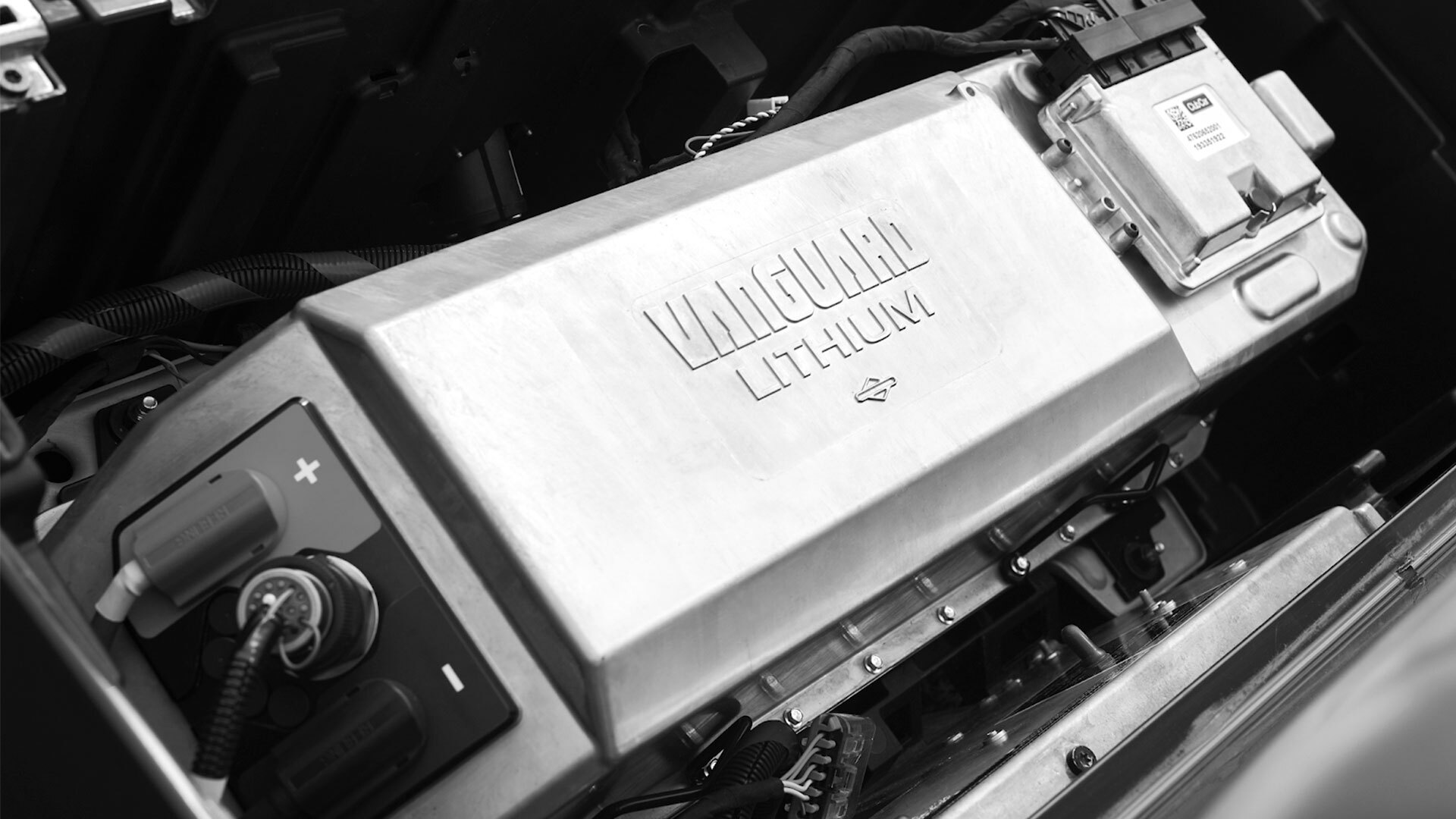

Withstands abuse, debris & dirt with an aluminum diecast enclosure.
Optimized Productivity
Similar to the 3.8kWh diecast pack, but with greater energy density. Designed to deliver a 2,000 cycle lifespan with virtually no scheduled maintenance.
The Confidence You Deserve
The Battery Management System (BMS) constantly measures voltage and temperature to ensure safe and efficient operations.
Simple Integration
OEMs can easily exchange information with the battery pack using its two CANbus ports. One CANbus uses the J1939 automotive standard, while the other is designed for uncomplicated data transfer with the OEM's current communication network: No reprogramming of that network is required.
Effortless Troubleshooting
Diagnostic protocols use standard CANbus procedures.
Industry-Leading Warranty

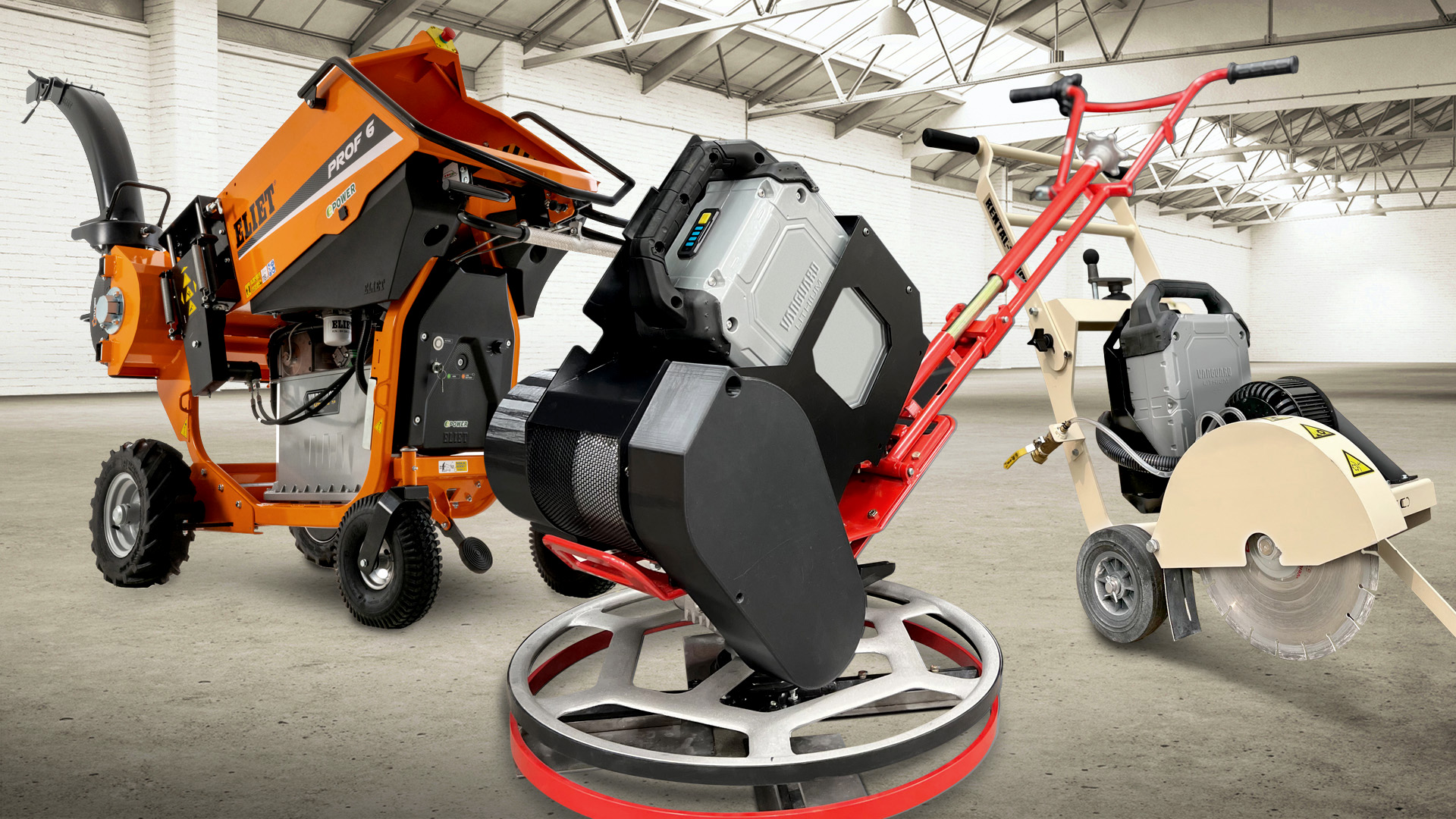

Robust three year commercial limited warranty. CLICK HERE for details.
Specifications
At least one product must be displayed. Please select another option to remove this product
Fi Series Name
Fi7.0
Configuration
Lithium-Ion, 14S
Nominal Voltage (V)
51.6
Top Voltage (V) per IEC 61960
58.8
Top Voltage (V) for EV-Applications
58.1
Cutoff Voltage (V)
35.0
Nominal Capacity per IEC 61960
135.9 Ah / 7.0 kWh
Communication Protocols
J1939 (29-bit), CAN Open (11-bit)
Discharge Temperature Range
-20°C to +70°C
Storage Temperature Range (1 Month / 1 Year)
-20° to +60°C / -20°C to +25°C
Charging Temperature Range
-10°C to +45°C
Marketed Durability Hours/Cycles
2000 cycles to 80% initial capacity
Rated Charging Current (A)
40.0
Rate Discharging Current (A)
134
Parallel Capable
Yes, up to 10 batteries
Standard Charge Time
8 Hours
Vanguard Charger Output Power (W)
1050 W
On-Board or Stand Alone
Either
Manuals
*Total energy measured using a 0.2C discharge per IEC 61960-3:2017
