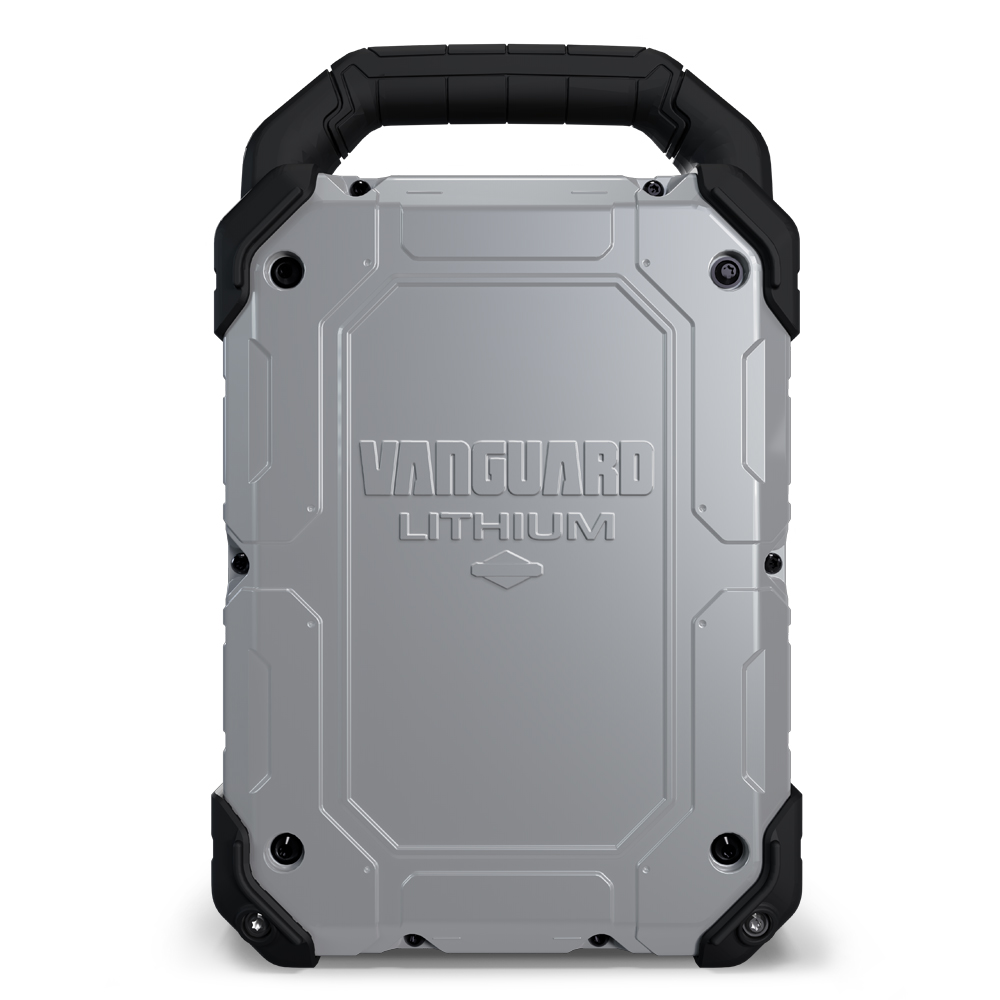

1.5kWh* Swappable Battery Pack

1.5kWh* Swappable Battery Pack

Coming Soon!

  • Same Battery. Multiple Applications.
  • Ability to swap out from application to application on the jobsite to reduce downtime.
  • Independent paralleling provides the ability to connect multiple batteries easily to get the power you need.
  • Disclaimer: Concept only. What is shown and specs listed will not be final production product.

Features

Reliable and Durable

Withstands abuse, debris & dirt.

User Replaceable

Ability to swap out from application to application on the jobsite to reduce downtime. This allows the user to easily remove batteries without causing strain or injury.

Brand/Equipment Agnostic

Works across multiple product platforms providing flexibility and cost efficiencies. Expandable power allows for more than one pack to power applications, based on how much power is needed.

Easy Integration

Dual CANbus communication protocol allows OEMs to communicate with the battery's J1939 (automotive standard) CANbus and use the second CANbus to communicate with the existing communication network without having to reprogram the legacy system.

Quick, Tool-less Locking and Unlocking

User will clearly understand if the battery is not locked in and ready. There is a self locking/auto locking feature, and a padlock/cable feature for theft prevention.

Secure Hold on Battery

Minimal movement, if any, to prevent wear on electrical connections.

No-Hassle Troubleshooting

Diagnostic protocols use standard CANbus procedures.

Warranty

Robust three year commercial limited warranty. CLICK HERE for details.

*Total energy measured using a 0.2C discharge per IEC 61960-3:2017

Specifications

At least one product must be displayed. Please select another option to remove this product

Nominal Voltage (V)
51.6
Top Voltage (V) per IEC 61960
58.8
Top Voltage (V) for EV-Applications
58.1
Cutoff Voltage (V)
35.0
Nominal Capacity per IEC 61960
29.4 Ah / 1.51kWh
Communication Protocols
CANJ1939 (29-bit, 500kbps)
Discharge Temperature Range
-40°C to +60°C
Storage Temperature Range
TBD
Charging Temperature Range
0°C to +45°C
Marketed Durability Hours/Cycles
Up to 1,000 cycles to 80% initial capacity
Parallel Capable
Yes, up to 10 batteries
Standard Charge Time
< 2 hours
Vanguard Charger Input Power
<12A, 120V, 60HZ/220V, 50HZ
Vanguard Charger Output Power (W)
1050
Manuals

*Total energy measured using a 0.2C discharge per IEC 61960-3:2017
