Vanguard® 1050W Charger
Vanguard® 1050W Charger
Works seamlessly with battery pack.

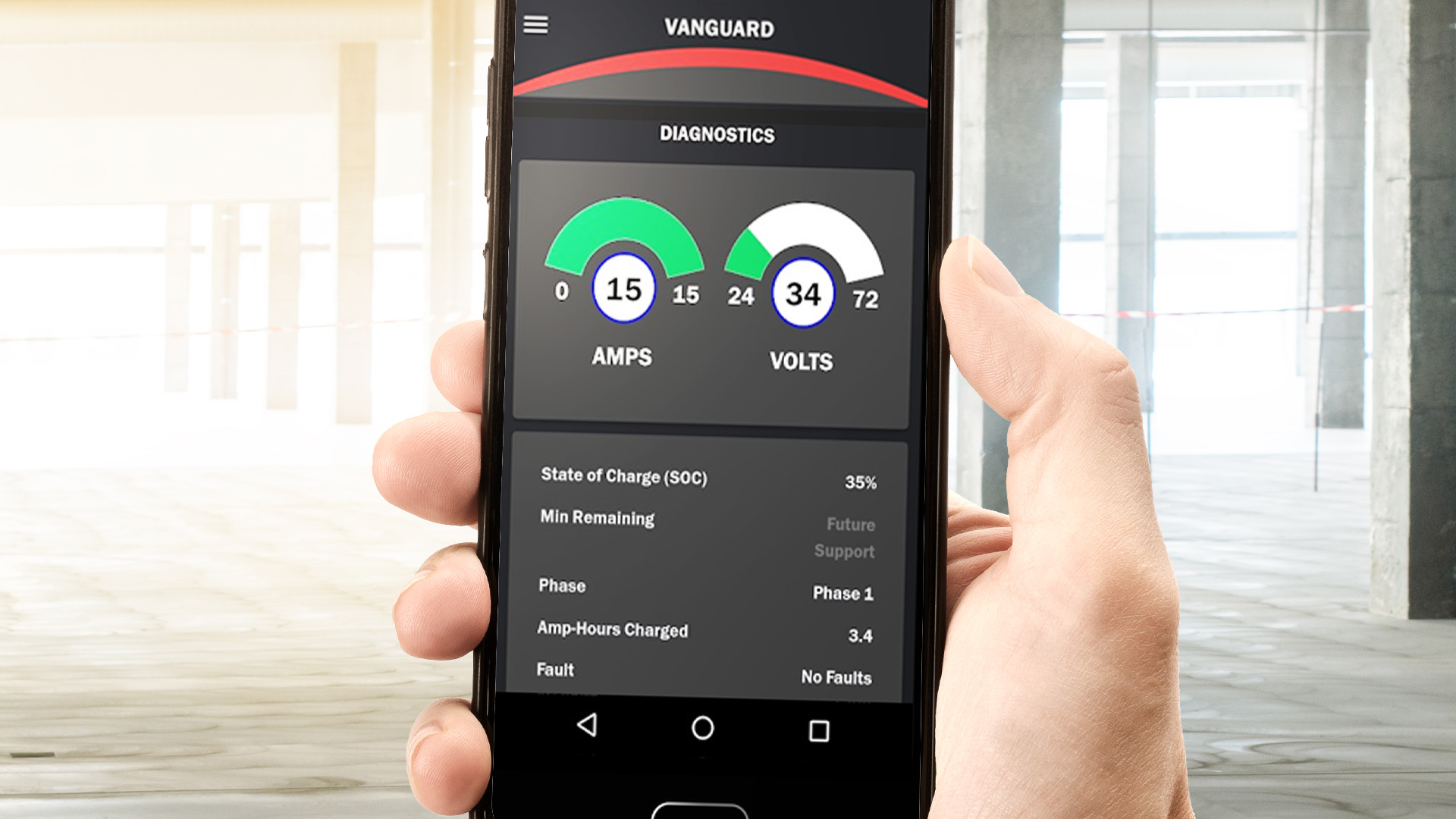

Bluetooth capabilities for monitoring AC input and DC output specifications.
Features advanced charge and termination algorithms, optimizing daily battery capacity as well as overall battery life.
Fast recharge time of 3 hours (3.8kWh*), 6 hours (5kWh*) and 12 hours (10kWh*).
The 1050W Vanguard® Charger is not compatible with the Fi1.5 and Si1.5 commercial batteries.
Two chargers can be connected in parallel to reduce charging time.
Click and drag image to rotate.
Features
Specifications
At least one product must be displayed. Please select another option to remove this product
Enclosure Rating
IP66, NEMA 4
Voltage Range, Rated (AC Input)
100-240 Vac
Voltage Range, Operating (AC Input)
85-265 VAC (< 108 Vac: reduced power)
Frequency, Rated (AC Input)
50-60 Hz
Frequency, Operating (AC Input)
45-65 Hz
Phase (AC Input)
Single-phase
Current, Maximum (AC Input)
< 12 A
Efficiency (AC Input)
< 91% peak, CEC test procedure, 115 Vac, AC and DC losses included
Protection (AC Input)
Current limit, surge, transient, under voltage, over voltage
Power (DC Output)
1050W
Top Voltage (V)
36 Vdc, 54 Vdc, 72 Vdc (DC Output)
Current Maximum (DC Output)
25 A, 25 A, 22 A
Voltage, Min Start-up (DC Output)
10 Vdc
Protection (DC Output)
Current limit, short circuit, reverse polarity, under voltage, over voltage, wrong battery voltage
Operating Temperature Range
-25°C to 60°C (-13°F to 140°F)
Storage Temperature Range
-40°C to 85°C (-40°F to 185°F)
Manuals
Operator's Manual
- English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishOperator's Manual
- JapaneseOperator's Manual
- English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishOperator's Manual
- English, Spanish-Colombian, French-Canadian*Total energy measured using a 0.2C discharge per IEC 61960-3:2017
