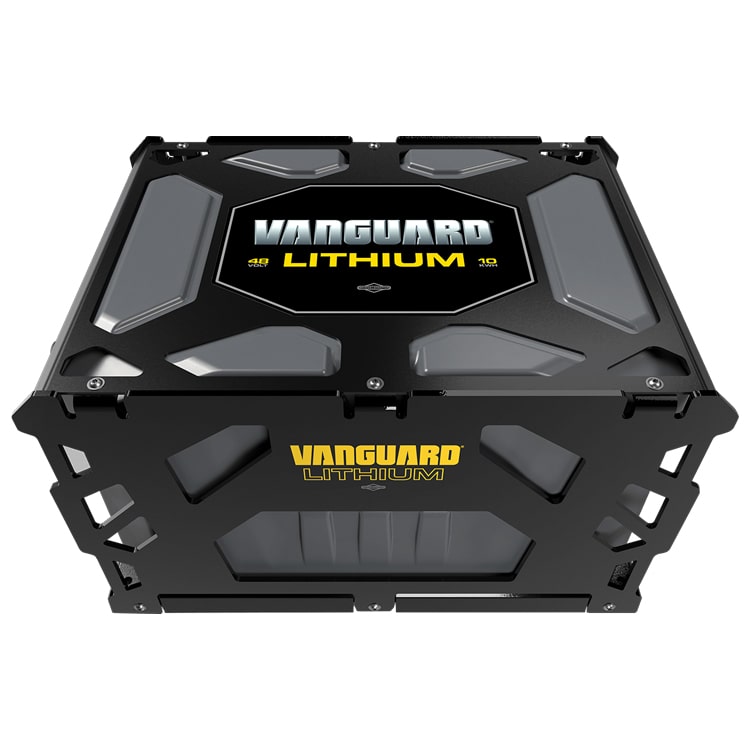

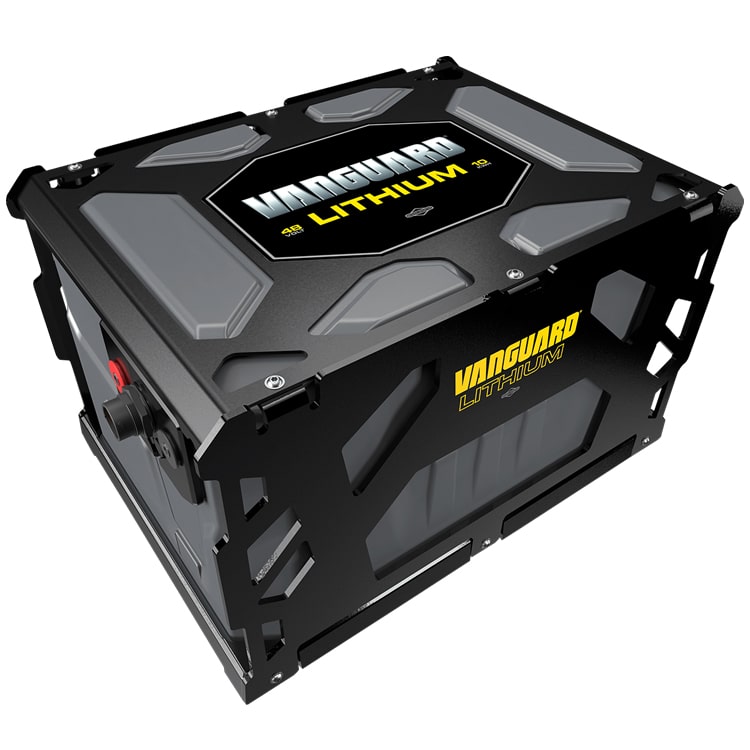

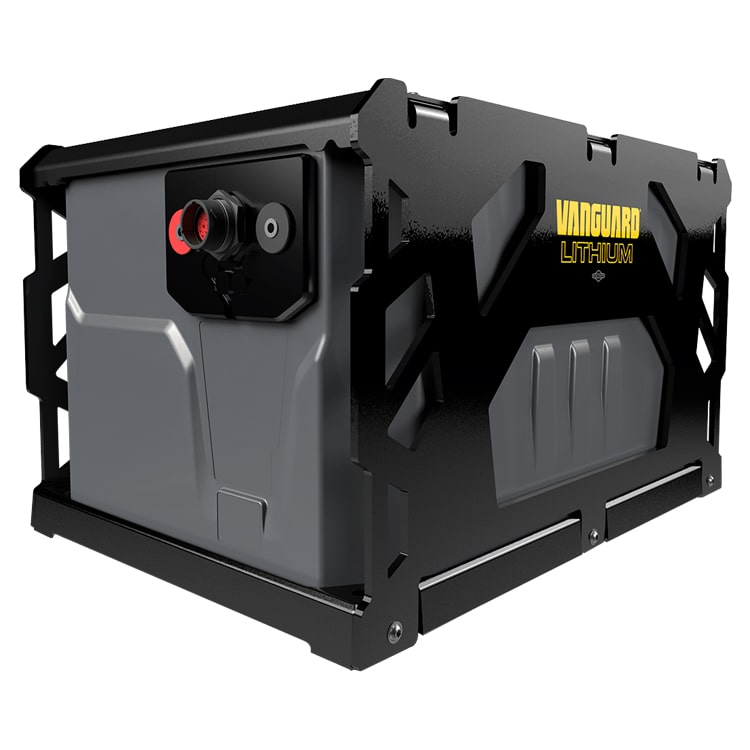

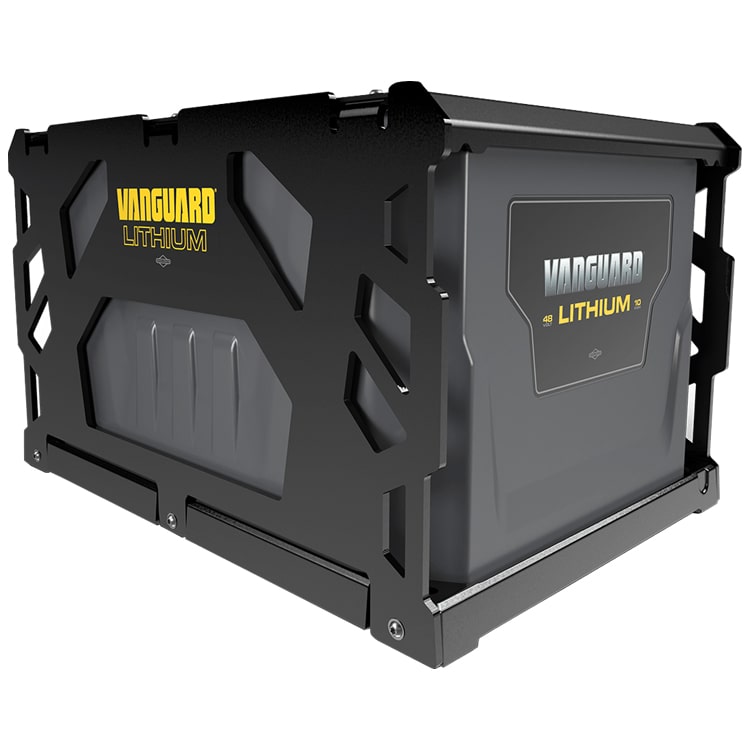

48V 10kWh* Commercial Battery

48V 10kWh* Commercial Battery

Fixed Battery Pack - Fi10.0

Seamless integration. One solution – multiple applications.

The Vanguard Commercial Battery with an integrated Battery Management System (BMS) is designed to power multiple commercial applications providing efficient power and performance. The CANbus-controlled Vanguard charger provides safe charging with the Vanguard special charge profile.

This is the next generation of integrated power.

  • Download battery literature to get more information.

  • Features

    Powerfully Robust

    Double the power capacity of our 5kWh in a single pack.

    Increased Uptime

    Designed for a life of up to 2.000 cycles with no scheduled maintenance needs. All major components are serviceable and modules can be replaced rather than having to replace the entire battery.

    Easy Troubleshooting

    Via standard CANbus diagnostic protocols. The individual modules can be replaced and major components are serviceable.

    8 Year Commercial Limited Warranty

    Vanguard now offers an 8 year commercial limited warranty for all lithium-ion battery packs. CLICK HERE for more information.

    Specifications

    At least one product must be displayed. Please select another option to remove this product

    Fi Series Name
    Fi10.0
    Configuration
    Lithium-Ion, 14S32P
    Nominal Voltage (V)
    51.6
    Top Voltage (V) per IEC 61960
    58.8
    Top Voltage for EV-Applications
    58.1
    Cutoff Voltage (V)
    35.0
    Nominal Capacity per IEC 61960
    197.4Ah / 10.17kWh
    Communication Protocols
    CAN J1939 (29-bit) Plus flexible secondary CAN interface
    Discharge Temperature Range
    -20˚ - 60˚C
    Charging Temperature Range
    -10˚C to +50˚C
    Marketed Durability Hours/Cycles
    Up to 2000 to 80% of initial capacity
    Parallel Capable
    Yes, up to 10 batteries
    Standard Charge Time
    < 12 Hours
    Vanguard Charger Input Power
    < 12A, 120V, 60Hz / 220V, 50Hz
    Vanguard Charger Output Power (W)
    1050W, 20A
    On-Board or Stand Alone
    Either
    Capacity at Max Discharge per EVApplications
    195Ah / 9.5kWh
    Rated Discharging Current
    100A

    *Total energy measured using a 0.2C discharge per IEC 61960-3:2017

    Lithium-Ion VS. Lead Acid Batteries
