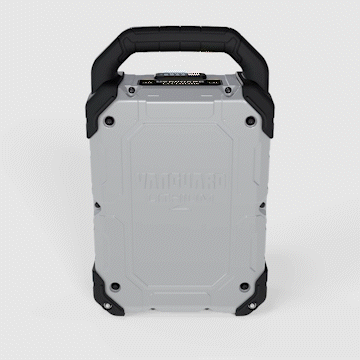

    Swappable Battery Pack - Si1.5

    COMING SOON!

    • Same Battery. Multiple Applications.
    • Ability to swap out from application to application on the jobsite to reduce downtime.
    • Independent paralleling provides the ability to connect multiple batteries easily to get the power you need.
    • Disclaimer: Concept only. What is shown and specs listed will not be final production product.

    Feature

    Features

    Reliable and Durable

    Withstands abuse, debris & dirt.

    User Replaceable

    Ability to swap out from application to application on the jobsite to reduce downtime. This allows the user to easily remove batteries without causing strain or injury.

    Brand/Equipment Agnostic

    Works across multiple product platforms providing flexibility and cost efficiencies. Expandable power allows for more than one pack to power applications, based on how much power is needed.

    Flexibility

    Single CANbus J1939 communication protocol allows OEMs to communicate with the battery's J1939 (automotive standards) CANbus.

    Quick, Tool-less Locking and Unlocking

    User will clearly understand if the battery is not locked in and ready. There is a self locking/auto locking feature, and a padlock/cable feature for theft prevention.

    Secure Hold on Battery

    Minimal movement, if any, to prevent wear on electrical connections.

    No-Hassle Troubleshooting

    Diagnostic protocols use standard CANbus procedures.

    Global Warranty Coverage

    Three year limited commercial warranty. See warranty details.

    Specifications

    At least one product must be displayed. Please select another option to remove this product

    Si Series Name
    Si1.5
    Nominal Voltage (V)
    51.6
    Top Voltage (V) per IEC 61960
    58.8
    Top Voltage for EV-Applications
    58.1
    Cutoff Voltage (V)
    35.0
    Nominal Capacity per IEC 61960
    29.4 Ah / 1.51kWh
    Communication Protocols
    CANJ1939 (29-bit, 500kbps)
    Discharge Temperature Range
    -40°C to +60°C
    Charging Temperature Range
    0°C to +45°C
    Marketed Durability Hours/Cycles
    Up to 1,000 cycles to 80% initial capacity
    Parallel Capable
    Yes, up to 10 batteries
    Standard Charge Time
    < 2 hours
    Vanguard Charger Input Power
    <12A, 120V, 60HZ/220V, 50HZ
    Vanguard Charger Output Power (W)
    1050

    *Total energy measured using a 0.2C discharge per IEC 61960-3:2017
