13,4 Gross kW*

13,4 Gross kW*

EASIER STARTING. INTEGRITY AND DURABILITY.

The Vanguard® range of vertical shaft V-Twin engines have been designed and application engineered to meet the requirements of the most demanding applications. Available in 4 different power ratings, these VANGUARD engines offer a 3-Year Limited Global Warranty.

13,4

Gross kW*

570

Displacement (cc)

2

No. of Cylinders

Petrol

Fuel Type

Features

Durable Design

Light and more compact design, without compromising power and performance.

V-Twin OHV Technology

V-Twin engine design provides better balance and allows for increased power. OHV technology optimizes performance for a longer engine life and enhanced fuel economy.

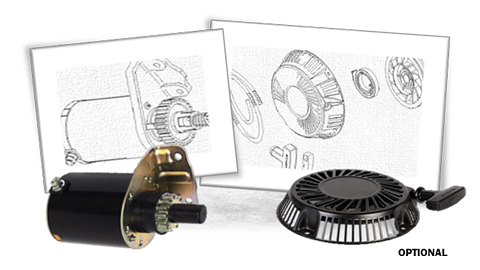

Smooth Easy Starting

The mechanical compression release eases the starter to crank the engine. Magnetron electronic ignition system ensures quick dependable starts with no maintenance required. The result is a smooth easier starting and longer starter life. Optional rewind start and solenoid shift starter.

Maximum Durability

Engine block designed to provide superior durability. Cast iron cylinder sleeve adds integrity and durability that withstands wear and abuse while providing improved oil control.

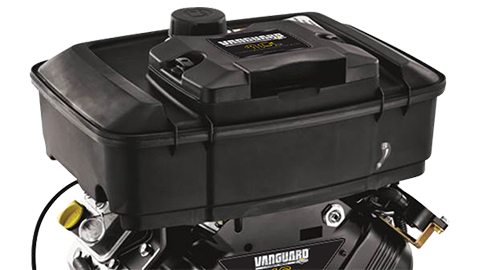

Increased Engine Cooling

Increased engine cooling means less maintenance and equipment downtime. Cooler Cleaner Technology efficiently reduces engine and oil temperatures by 14-17°C while effectively managing airborn debris.

Superior Balance

The dynamically balanced crankshaft, light weight piston and ring package minimize engine noise and vibration and improve high temperature durability.

Extended Engine Life

Maximum lubrication and critical engine components protection. The spin-on filter keeps oil cleaner for an extended engine life.

Electronic Fuel Management (Optional Feature)

EFM ensures familiar automotive-style key starting (no more manual choke) at any temperature from -28 to 50°C.

Global Warranty Coverage

Three year limited commercial engine warranty for all applications.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Engine Type
V-Twin, 4-stroke, air cooled, OHV (Overhead Valve)
Model Number
3567
Gross kW* @ 3’600 rpm
13,4
Gross HP* @ 3’600 rpm
18,0
Displacement (cc)
570
Cylinder
Cast Iron sleeve
Bore (mm)
72,0
Stroke (mm)
70,0
Fuel Tank Capacity (l)
NA
Oil Capacity (l)
1,7
Compression Ratio
8.2:1
Air Cleaner
Low Profile Dual-Clean™ Air Cleaner
Ignition System
Magnetron® Electronic Ignition
Lubrication System
Full Pressure Lubrication with Spin-On Oil Filter

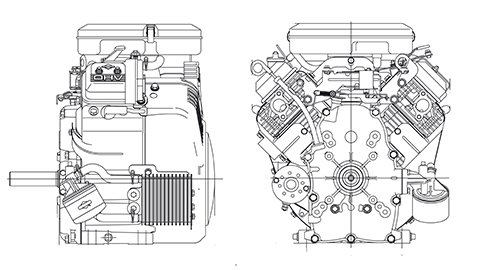

Length (mm)
439
Width (mm)
406
Height (mm)
344
Dry Weight (kg)
33,3
Commercial Warranty**
3 Year Limited
Certified Power Rating

* Power levels are stated gross kilowatts per SAE J1940 as rated by Briggs & Stratton.
** See operator's manual or dealer for complete warranty details.

Options

Electronic Fuel Management
Solenoid Shift Starter
Key Switch
Alternators (9, 16, 20, 20-59 amp)
Oil Cooler
Oil Pressure Switch
Straight Keyed Tapered Cranks (1" & 1-1/8" Diameters)
Flywheel Stub Shaft
Integrated Fuel Tank
Cyclonic Air Cleaner
High, Low and Side Mount Mufflers
CARB Compliant Purge Ports
