27,6 Gross kW* EFI

27,6 Gross kW* EFI

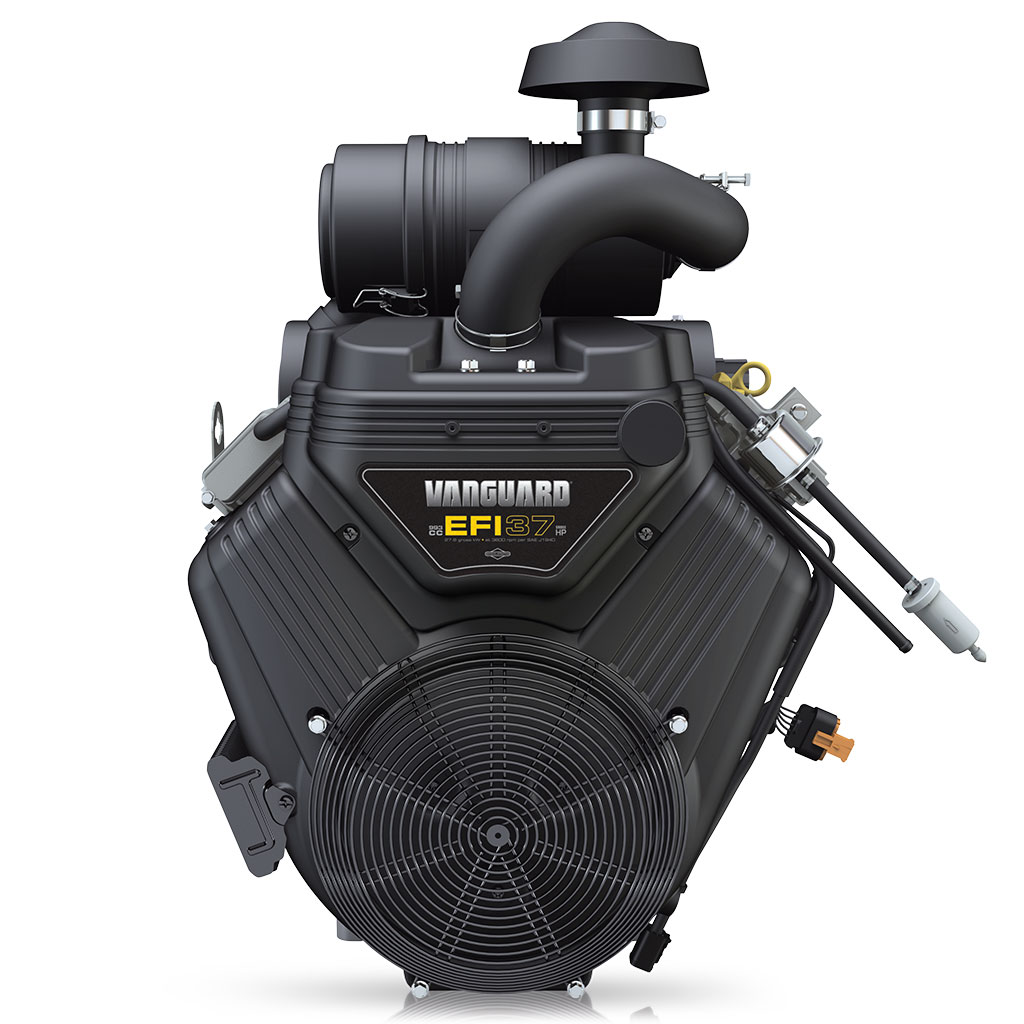

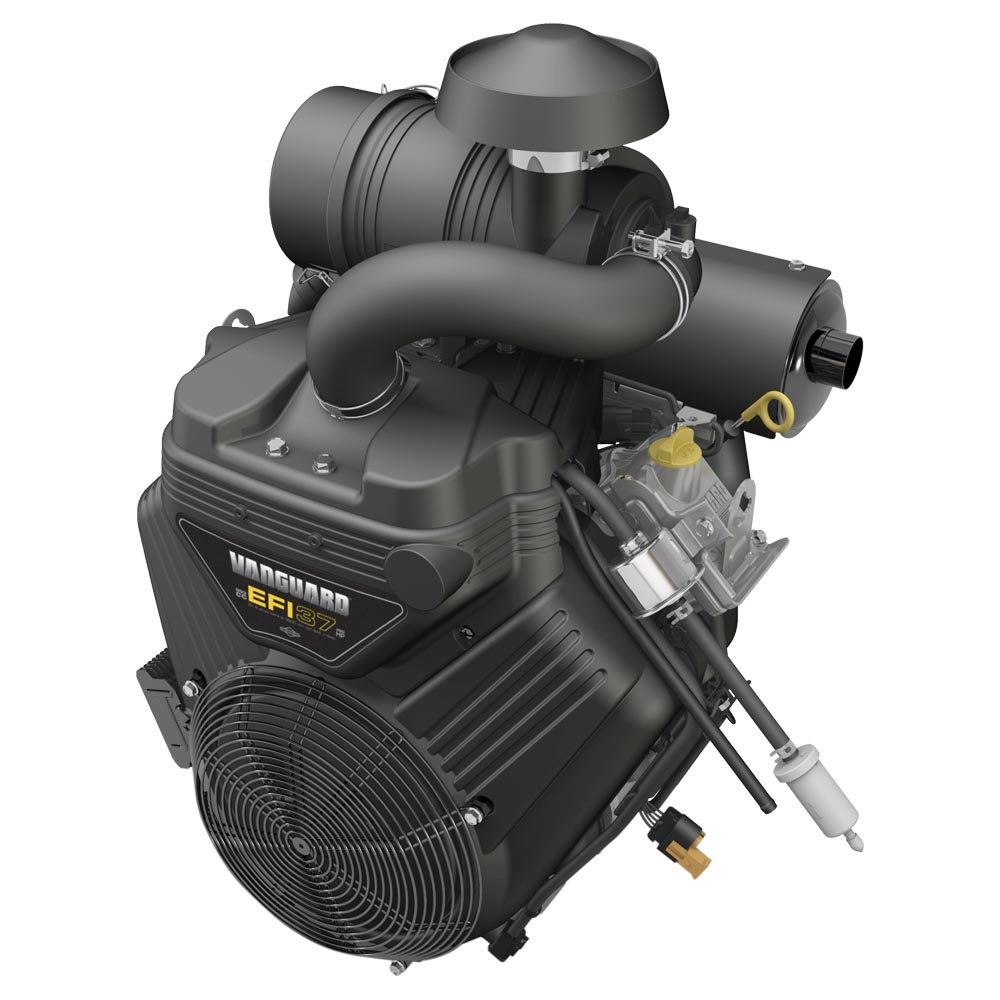

The premium Vanguard® V-Twin horizontal engine range has been designed and application engineered to deliver the most durable performance. The premium engine range offers a full 3-Year limited global warranty for commercial use which demonstrates our commitment to deliver the best performing products.


Gross kW*


Displacement (cc)


No. of Cylinders


Fuel Type


V-Twin OHV Technology

V-Twin engine design provides better balance and allows for increased power. OHV technology optimizes performance for a longer engine life and enhanced fuel economy.

Maximum Durability

Aluminium block designed to provide superior durability. Cast iron cylinder sleeve adds integrity and durability that withstands wear and abuse while providing improved oil control.

Electronic Fuel Injection

The Vanguard V-Twin EFI engines feature an automotive-based, closed-loop EFI system that delivers easier starting and improved performance, with fuel savings of up to 25%*.

* Closed-loop EFI system fuel savings may vary based on cutting conditions and other factors.

Smooth Easy Starting

Battery ignition with variable timing as part of the EFI system. Featuring the industrial grade solenoid shift starter. The result is a smooth easier starting and longer starter life.

Superior Balance

The dynamically balanced crankshaft, light weight piston and ring package minimize engine noise and vibration and improve high temperature durability.

Extended Engine Life

Maximum lubrication and critical engine components protection. The spin-on filter keeps oil cleaner for an extended engine life.

High Efficiency Head Design

Angled ports optimizes tumble and mixture preparation for improved efficiency, smoother idle, lower emissions and more power.

Cyclonic Air Cleaner

Advanced protection against airborne debris entering the engine.

Improved Sound Quality

Engineered resin blower housing and phase modulated flywheel fan for lower noise level and improved sound quality.

Global Warranty Coverage

Three year limited commercial engine warranty for all applications.


Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Engine Type
V-Twin, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number
Gross kW* @ 3’600 rpm
Gross HP* @ 3’600 rpm
Displacement (cc)
Cast Iron sleeve
Bore (mm)
Stroke (mm)
Fuel Tank Capacity (l)
Oil Capacity (l)
Compression Ratio
Air Cleaner
Five-Inch Cyclonic Air Cleaner
Ignition System
Computer Controlled Battery Ignition
Lubrication System
Full Pressure Lubrication with Oil Filter
Length (mm)
Width (mm)
Height (mm)
Dry Weight (kg)
Commercial Warranty**
3 Year Limited
Certified Power Rating

* Power levels are stated gross kilowatts per SAE J1940 as rated by Briggs & Stratton.
** See operator's manual or dealer for complete warranty details.
*** Fuel savings may vary based on cutting conditions and other factors.


Key Switch
Alternators (9, 16, 20, 20-59 amp)
Oil Pressure Switch
Straight Keyed Cranks (1-1/8" & 1-7/16" Diameters)
CDI Ignition with Rev Limiter
Engine Mounted Choke and Throttle Control
Flywheel Stub Shaft
Low Profile Air Cleaner
High & Mid Mounted Mufflers
High Speed 4750rpm Package
Direct Throttle Control
Tach/Hour Meter with Check Engine Light
Low Idle Speed Control
