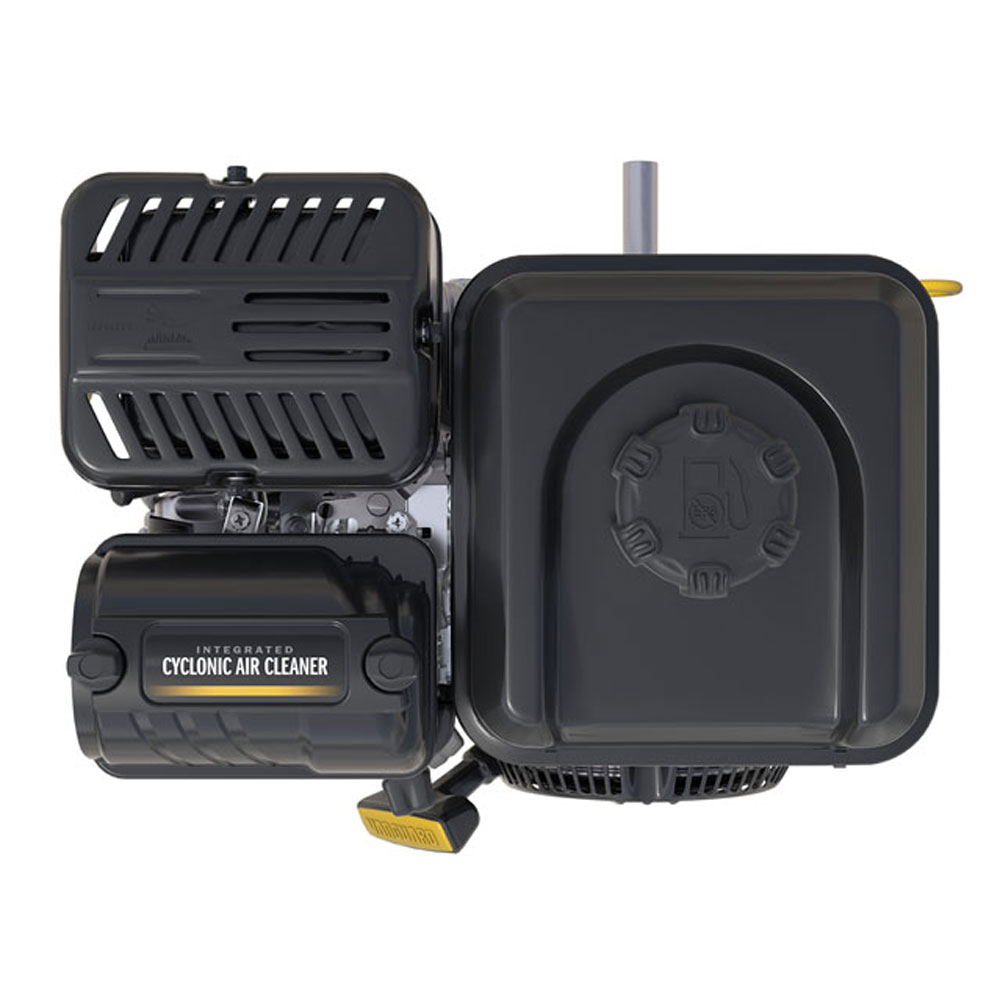

    Vanguard® 160

    Vanguard 160
    Vanguard 160
    Vanguard 160

    Vanguard® 160

    Model Number : 10V3

    This 169cc single-cylinder engine was built with a clean-sheet design approach to deliver what you care about most: overall performance, true power and maintenance.

    • Features standard Integrated Cyclonic Air Filtration that doubles your equipment’s air filter replacement intervals to 600 hours.
    • Includes 3-in-1 controls with the new TransportGuard® that controls throttle, ignition and fuel to prevent mixing of fuel and oil during transport.
    • Designed to deliver a lower total cost of ownership. See how much you could save here.

    See even more reasons why the Vanguard 160 is Your Single Advantage.

    5

    Horsepower (HP)

    169

    Displacement (cc)

    1

    No. of Cylinders

    Gas

    Fuel Type
    Feature

    Features

    Starts Down to 0° F

    Mechanical compression release and choke optimized for improved cold weather starting.

    Cyclonic Air Cleaner

    Standard feature on all Vanguard engines, 600 hour replacement interval.

    Optimized Starting

    A three step system that requires less effort.

    Nano Media Air Cleaner Filter Element with Autoshed Technology

    Proprietary self-cleaning filter media specially engineered to work with the Vanguard 160 engine.

    Commercial-style Carburetor

    Carburetor optimized to ensure reliable starting and smooth running operation over a wide range of loads.

    Liquid Cylinder Gasket

    Provides more durable seal and reliable lubrication.

    Stale Fuel Resistance

    Specially designed fuel system improves resistance to effects of stale fuel.

    Acoustically Designed Engine

    Air Cleaner, Fuel Tank and Muffler optimized to reduce noise and deliver improved tonal quality.

    Governed Idle

    Allows more usable power at idle, precise speed setting and better load response.

    TransportGuard® System

    Simultaneous fuel/ignition shut-off protects the engine from oil/fuel dilution during transport and allows for both on-engine and remote controls.

    High Inclination Package

    Optional feature allows 45° operation in any direction.

    Engine Warranty**

    Three year limited commercial engine warranty for all applications. REGISTER YOUR VANGUARD 160 ENGINE and receive an additional year of warranty.

    Engine Cooling

    Specially designed blower, rewind and shielding to help engine run cooler for longer.

    Easy Repower

    Accommodates leading competitor's controls and dimensions, making it an easy drop-in replacement.

    Universal Controls

    Easy to convert from manual friction to return-to-idle or fixed-speed without additional parts.

    Oil Sensor

    Protects the engine from low oil level conditions.

    Specifications

    Only 2 products can be compared at once. Please remove one of your selections to compare this product.

    Only 3 products can be compared at once. Please remove one of your selections to compare this product.

    At least one product must be displayed. Please select another option to remove this product

    Model
    10V3
    HP (gross) *
    5
    Engine Displacement (cc)
    169
    Engine Configuration
    Horizontal
    Bore (in)
    2.44
    Stroke (in)
    2.2
    Weight (lbs)
    39.5
    Oil Capacity (oz)
    20
    Lubrication System
    Splash Lubrication
    Air Filter
    Integrated Cyclonic Air Cleaner
    Ignition System
    CDI Ignition
    Fuel Tank Capacity (L)
    3.1
    Compression Ratio
    8.5:1
    Width (in)
    14.42
    Length (in)
    10.78
    Height (in)
    14.22
    Warranty**
    3 Year Limited; +1 Year Bonus Warranty with Registration
    Certified Power Rating
    Download Power Curve
    Manuals
    DownloadsOperator's Manual - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, Turkish
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian
    DownloadsOperator's Manual - English, Chinese-Simplified, Vietnamese, Indonesian, Thai, Khmer, Korean, Malay, Japanese
    DownloadsOperator's Manual - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, Swedish
    DownloadsOperator's Manual - English, Spanish-Colombian, Portuguese-Brazilian, French-European, Arabic, Swahili
    DownloadsOperator's Manual - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, Turkish
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian
    DownloadsOperator's Manual - English, Spanish-Colombian, Portuguese-Brazilian, French-European, Arabic, Swahili
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian
    DownloadsOperator's Manual - English, Spanish-Colombian, Portuguese-Brazilian, French-European, Arabic, Swahili
    DownloadsOperator's Manual - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, Swedish
    DownloadsOperator's Manual - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, Swedish
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian
    DownloadsOperator's Manual - English, Spanish-Colombian, Portuguese-Brazilian, French-European, Arabic, Swahili
    DownloadsOperator's Manual - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, Swedish
    DownloadsOperator's Manual - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, Swedish
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian
    DownloadsOperator's Manual - English, Spanish-Colombian, Portuguese-Brazilian, French-European, Arabic, Swahili
    DownloadsOperator's Manual - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, Swedish
    DownloadsOperator's Manual - English, Chinese-Simplified, Vietnamese, Indonesian, Thai, Khmer, Korean, Malay, Japanese
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian
    DownloadsOperator's Manual - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, Swedish
    DownloadsOperator's Manual - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, Swedish
    DownloadsOperator's Manual - English, Chinese-Simplified, Vietnamese, Indonesian, Thai, Khmer, Korean, Malay, Japanese
    DownloadsOperator's Manual - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, Swedish
    DownloadsOperator's Manual - English, Chinese-Simplified, Vietnamese, Indonesian, Thai, Khmer, Korean, Malay, Japanese
    DownloadsOperator's Manual - English, Chinese-Simplified, Vietnamese, Indonesian, Thai, Khmer, Korean, Malay, Japanese
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian
    DownloadsOperator's Manual - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, Swedish
    DownloadsOperator's Manual - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, Turkish
    DownloadsOperator's Manual - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, Swedish
    DownloadsOperator's Manual - English, Chinese-Simplified, Vietnamese, Indonesian, Thai, Khmer, Korean, Malay, Japanese
    DownloadsOperator's Manual -
    DownloadsOperator's Manual - English, Spanish-Colombian, Portuguese-Brazilian, French-European, Arabic, Swahili
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian
    DownloadsOperator's Manual - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, Turkish
    DownloadsOperator's Manual - English, Chinese-Simplified, Vietnamese, Indonesian, Thai, Khmer, Korean, Malay, Japanese
    DownloadsOperator's Manual - English, Spanish-Colombian, Portuguese-Brazilian, French-European, Arabic, Swahili
    DownloadsOperator's Manual -
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian
    DownloadsOperator's Manual - English, Chinese-Simplified, Vietnamese, Indonesian, Thai, Khmer, Korean, Malay, Japanese
    DownloadsOperator's Manual - English, Chinese-Simplified, Vietnamese, Indonesian, Thai, Khmer, Korean, Malay, Japanese
    DownloadsOperator's Manual - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, Turkish
    DownloadsOperator's Manual - English, Spanish-Colombian, Portuguese-Brazilian, French-European, Arabic, Swahili
    DownloadsOperator's Manual - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, Turkish
    DownloadsOperator's Manual - English, Chinese-Simplified, Vietnamese, Indonesian, Thai, Khmer, Korean, Malay, Japanese
    DownloadsOperator's Manual - English, Spanish-Colombian, French-Canadian

    *All power levels are stated gross HP at 3,600 RPM per SAE J1940
    **See operator's manual or dealer for complete warranty details.

    Support

    Manuals

    Download the operator's manual or illustrated parts list for your Vanguard™ engine by searching your engine model number.

    Find Manuals >

    Tips & Troubleshooting

    Have a question? Search our Frequently Asked Questions to find answers related to model specifications, routine maintenance, repair or troubleshooting.

    Search FAQs >

    Dealer Locator

    World class parts delivery, industry-leading global warranties and unparalleled service & training keeps your equipment out of the shop and on the jobsite.

    Find a Dealer >

    Commercial Limited Warranty

    Three-year commercial engine warranty for all applications. See operator's manual or dealer for complete warranty details.

    Learn More >

    Options

    12V Electric Start
    Alternators - 3.0 & 20.0 amp
    Threaded Crankshaft
    Tapered Crankshaft
    Metric Flange
    Low Profile Air Cleaner
    Clear Flange Muffler
    Wire Muffler
    Tankless / Mufferless
    High Inclination Package (45° operation)
    6:1 Gear Reduction Package
    2:1 Gear Reduction Package
