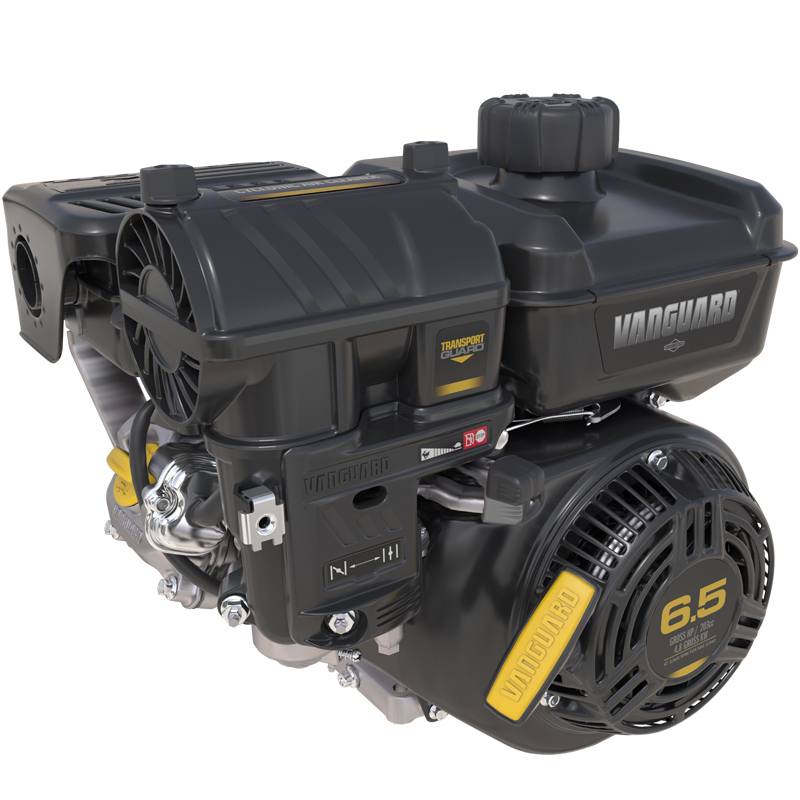

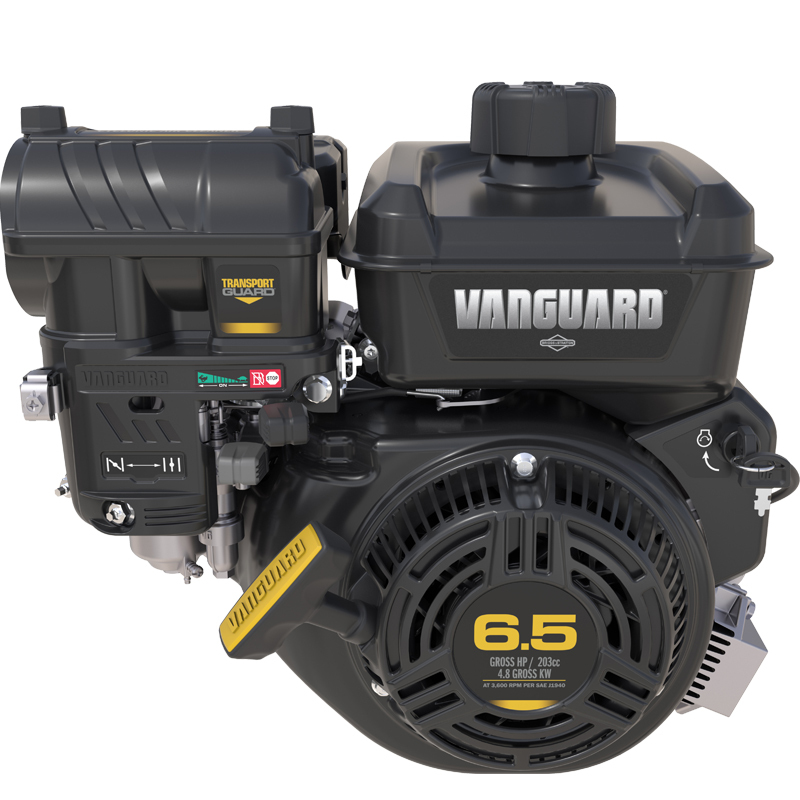

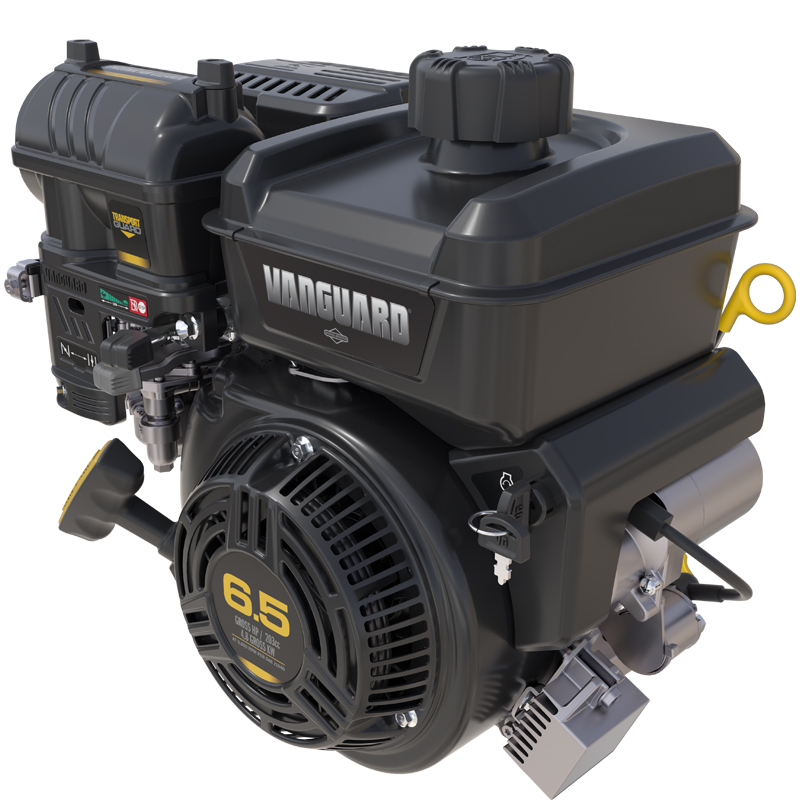

Vanguard® 200
This 203cc single-cylinder engine is full of practical innovations that provide end users exceptional power with less maintenance.
- Features standard Integrated Cyclonic Air Filtration that doubles your equipment’s air filter replacement intervals to 600 hours.
- Includes 3-in-1 controls with the new TransportGuard® that controls throttle, ignition and fuel to prevent mixing of fuel and oil during transport.
- Designed to deliver a lower total cost of ownership. See how much you could save here.
See even more reasons why the Vanguard 200 is Your Single Advantage.
Horsepower (HP)
6.5
Displacement (cc)
203
No. of Cylinders
1
Fuel Type
Gas
Features
TransportGuard®
Simultaneous fuel/ignition shut-off protects the engine from oil/fuel dilution during transport. This means fewer unscheduled oil changes and equipment that is ready to rent, minimizing downtown and enhancing ROI. Learn more >>>
Optimized Starting
The Vanguard starting sequence requires less effort and is tested to perform down to 0°F, providing reliable, easy starting in all seasons.
Cyclonic Air Filtration
The cyclonic air chamber actively manages the air flow and features our Advanced Nano Filter Media with Autoshed technology. This all combined extends the air filter replacement interval to 600 hours.
Engine Warranty**
Three year limited commercial engine warranty for all applications. REGISTER YOUR VANGUARD 200 ENGINE and receive an additional year of warranty.
Specifications
| Vanguard® 200 | |
| Model Number | 12V3 |
| HP (Gross)* | 6.5 |
| Engine Displacement (cc) | 203.0 |
| Engine Configuration | Horizontal |
| Bore (in) | 2.68 |
| Stroke (in) | 2.2 |
| Oil Capacity (oz) | 20.0 |
| Fuel Tank Capacity (gal) | 3.1 |
| Compression Ratio | 8.4:1 |
| Air Cleaner | Integrated Cyclonic Air Cleaner |
| Ignition System | CDI Ignition |
| Lubrication System | Splash Lubrication |
| Length (in) | 11.39 |
| Width (in) | 14.78 |
| Height (in) | 14.22 |
| Weight (lbs) | 39.5 |
| Certified Power Rating | Download Power Curve |
| Commercial Engine Warranty** | 3-Year Limited; +1-Year Bonus Warranty With Registration |
| Operator's Manuals |
**See operator's manual or dealer for complete warranty details.
