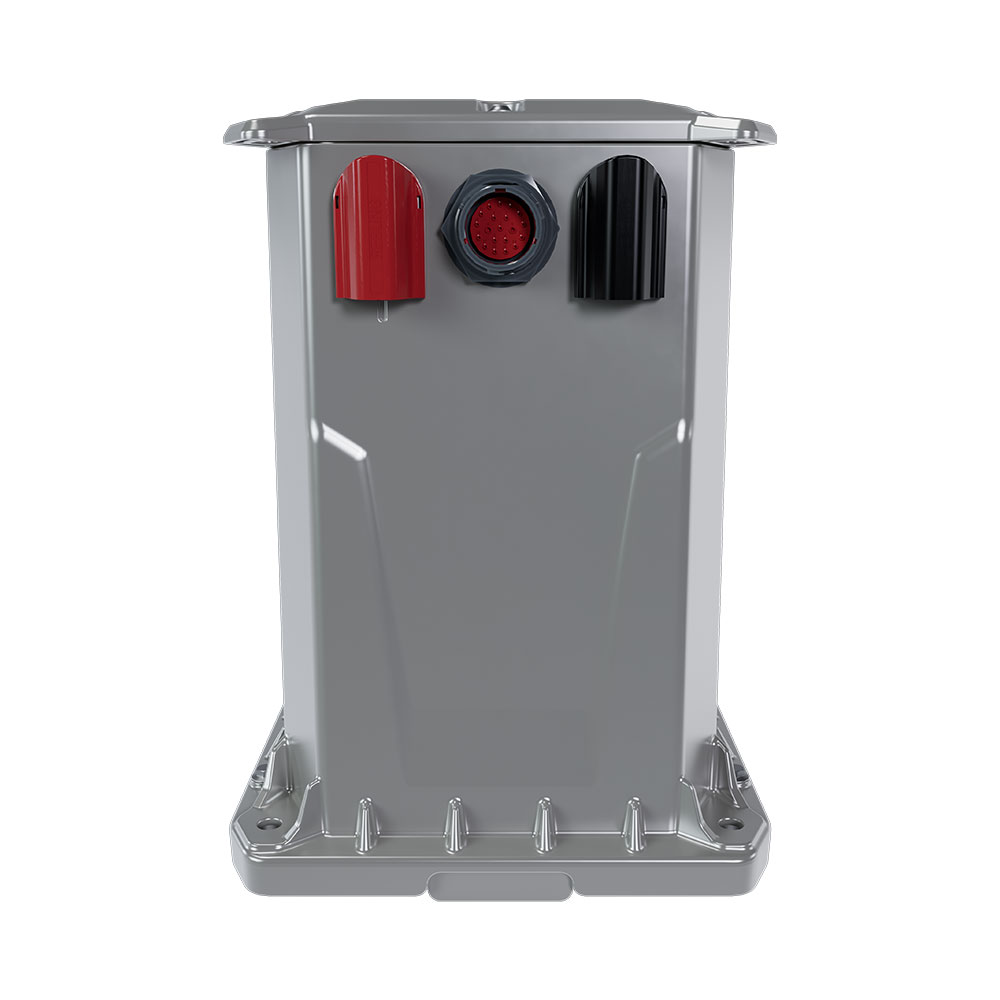

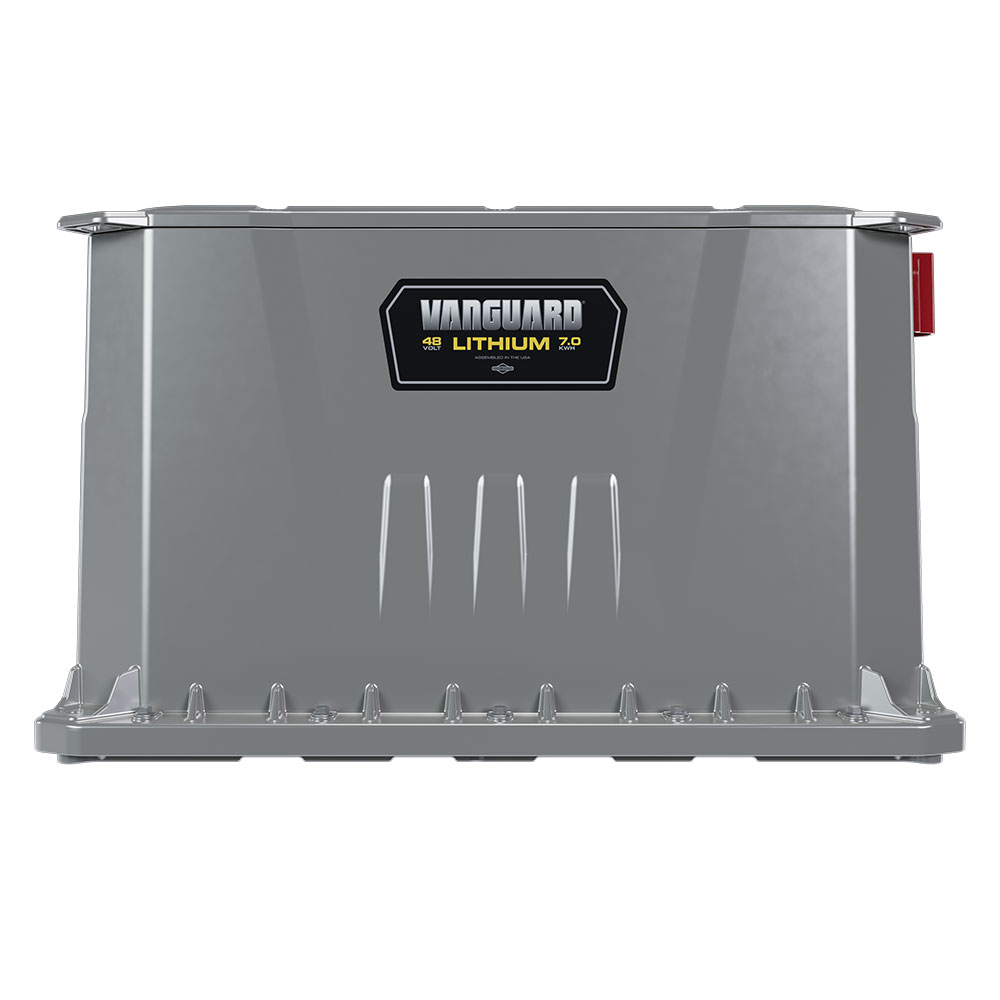

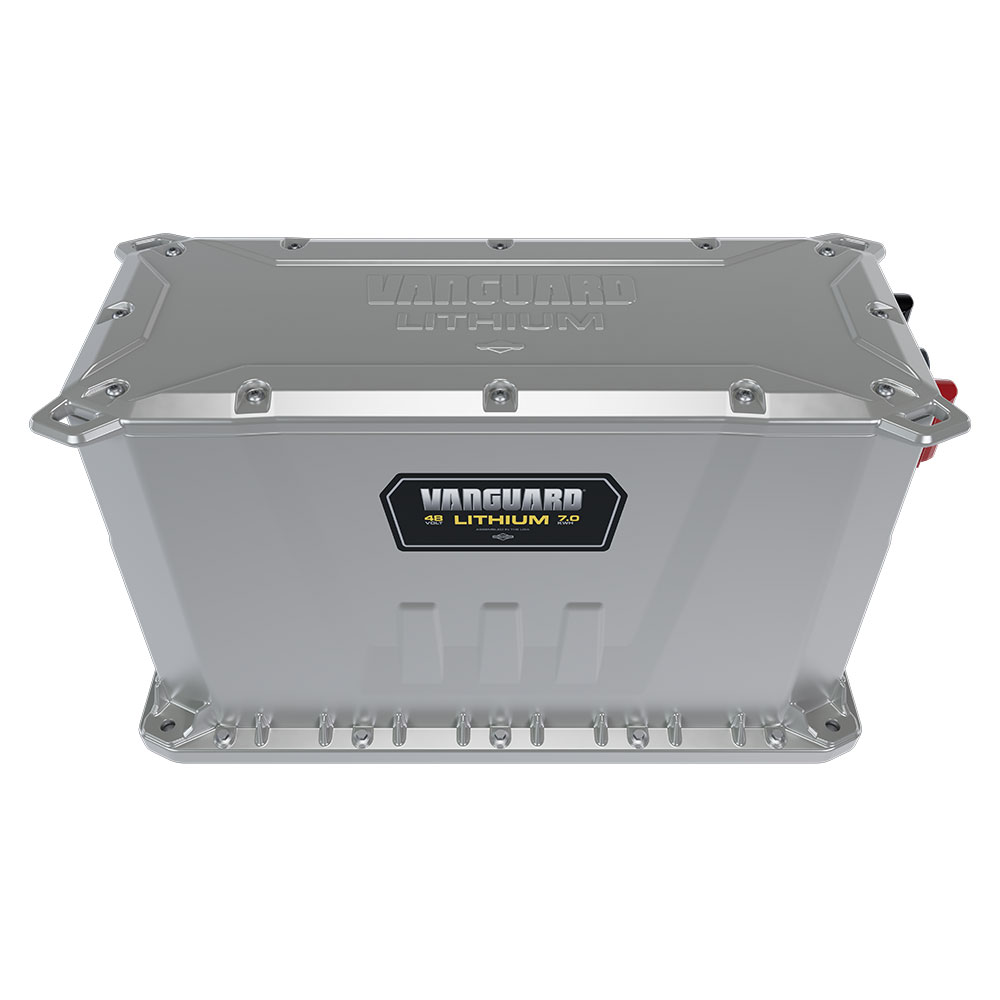

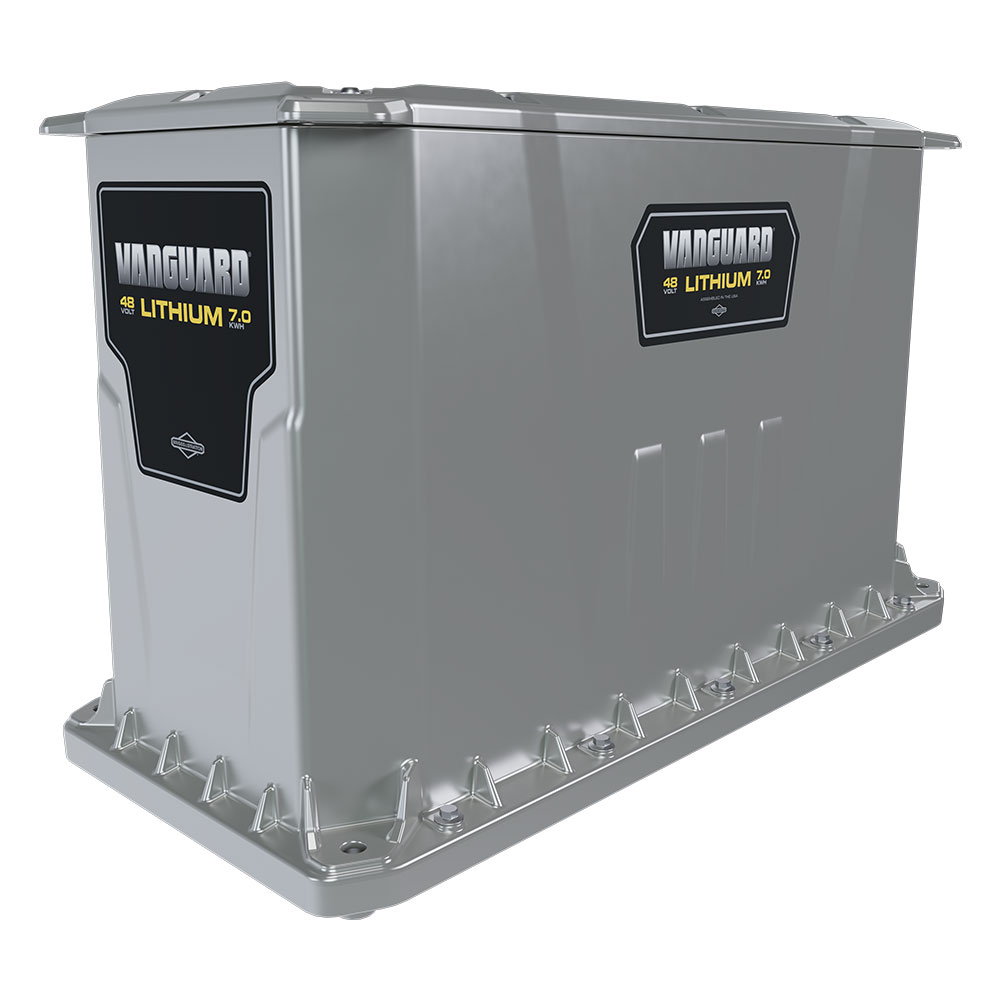

48V 7kWh* Commercial Battery

Fixed Battery Pack - Fi7.0

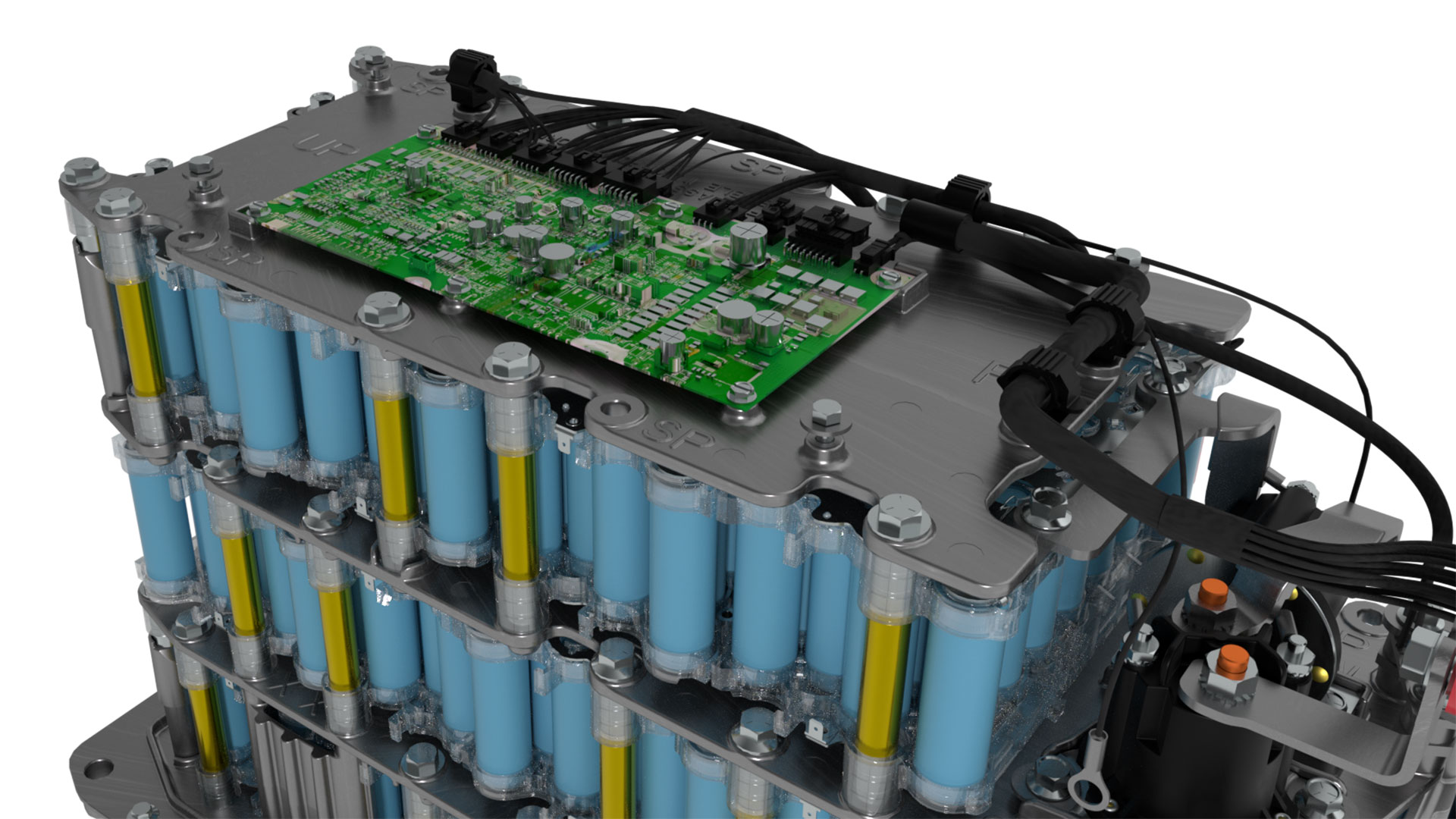

The diecast aluminum casing provides protection and durability for the internal Cell Module Assembly (CMA) units.
OEMs are able to seamlessly integrate and service components while operators receive always-ready, instant-on power for the tasks at hand - a total solution.
Our expert engineers designed the modular battery pack to deliver electric power you can count on.
Download our battery literature to get more information.

Learn About Battery Innovations

Features

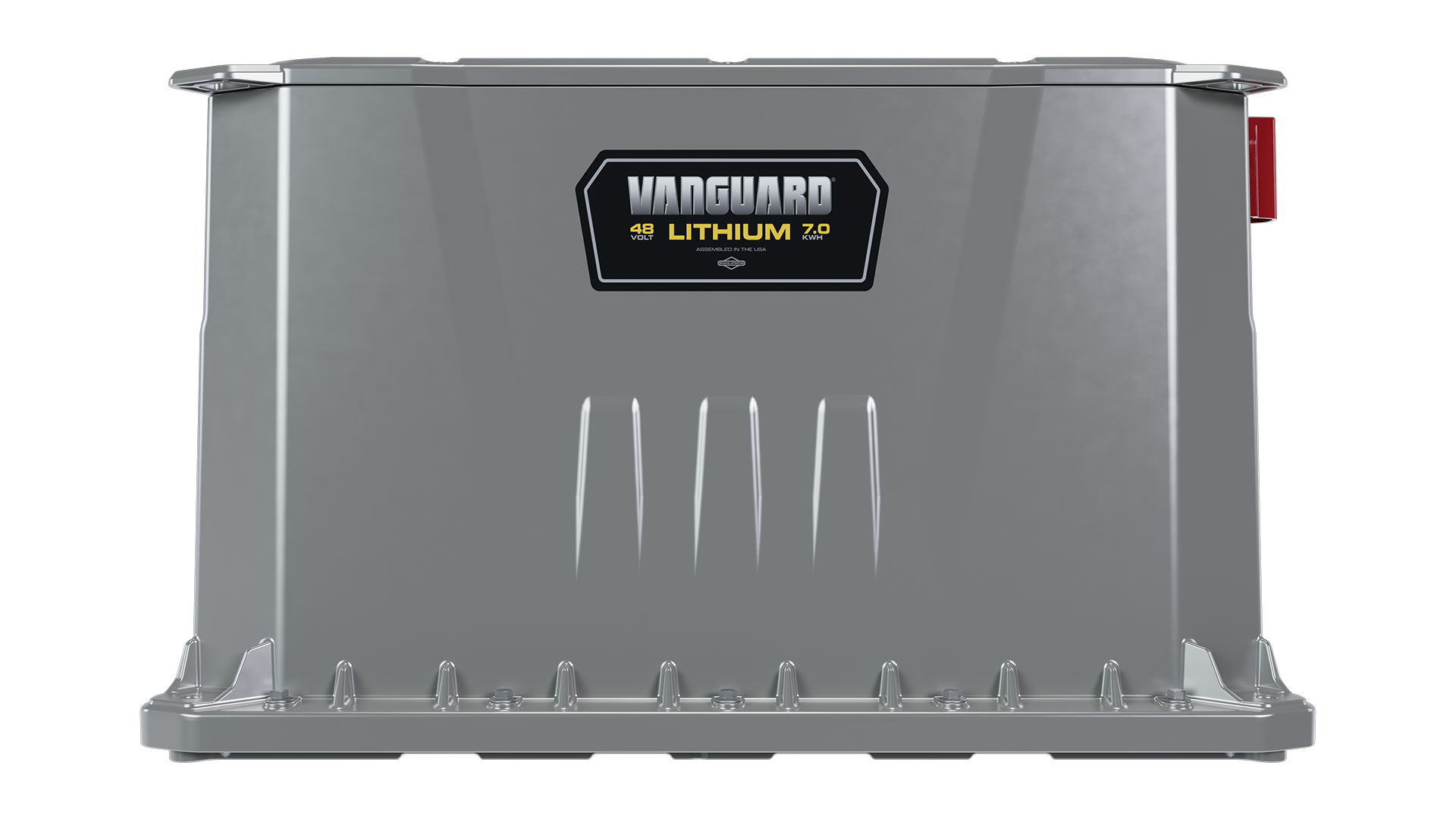

A Reliable Power Source

Combats wear and tear in the toughest environments with an aluminum diecast enclosure.

Paramount Productivity

Designed to deliver a 2,000 cycle lifespan with virtually no scheduled maintenance.

Smarter And Safer

The Battery Management System (BMS) is a dedicated technology that constantly monitors voltage and temperature to ensure safe and efficient operations.

Black & White Troubleshooting

No guesswork when it comes to troubleshooting on the job.

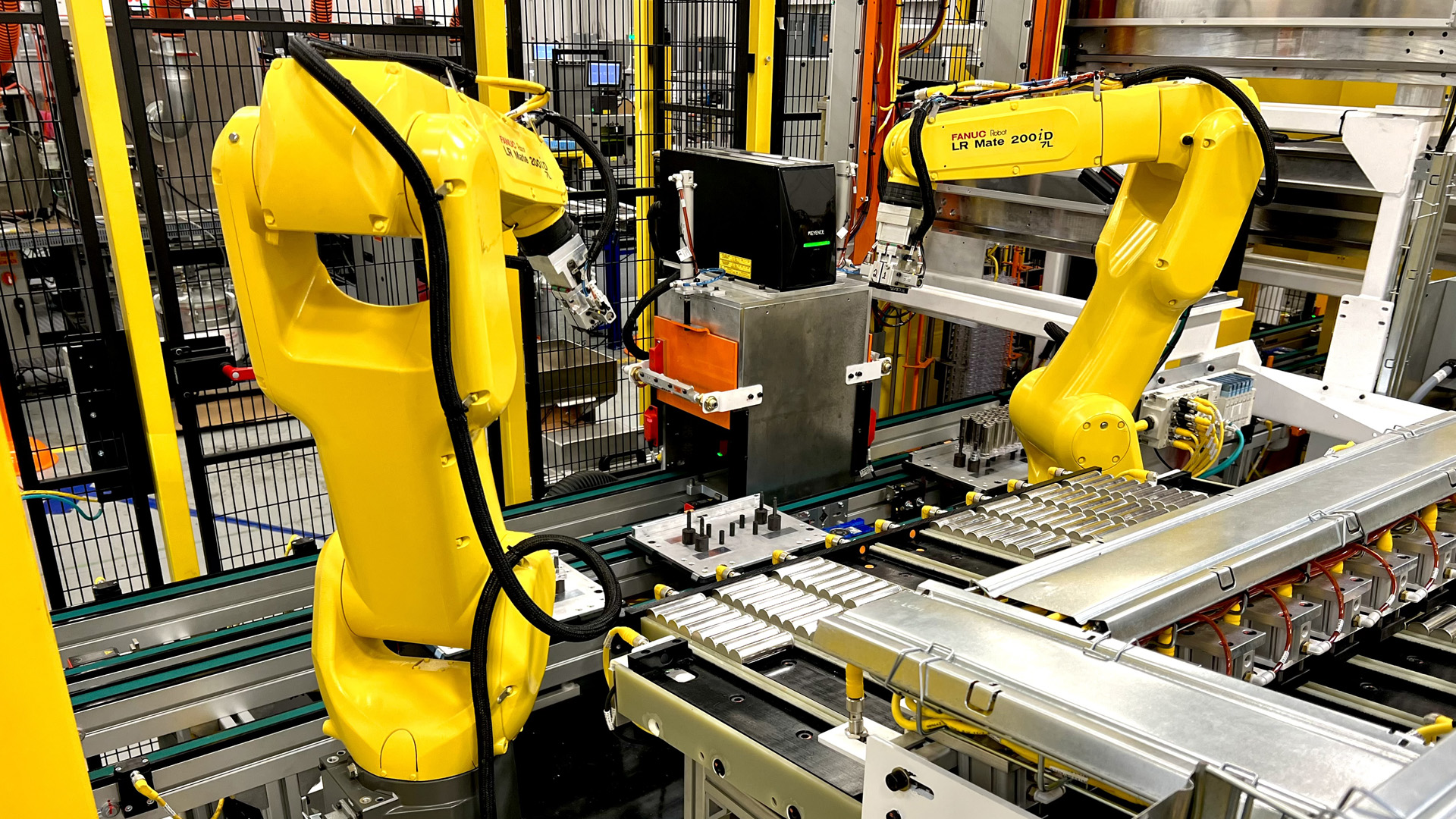

Advanced Manufacturing in the USA

Our new automation facility in Tucker, Georgia produces batteries with quality consistency.

8 Year Commercial Limited Warranty

Vanguard now offers an 8 year commercial limited warranty for all lithium-ion battery packs. CLICK HERE for more information.

Specifications

	48V 7kWh* Commercial Battery - Tall
Model Number	48V 7kWh* Commercial Battery - Tall
Fi Series Name	Fi7.0
Nominal Voltage (V)	51.7
Charge Voltage (per IEC 61960)	58.8
Discharge Cutoff Voltage	35.0
Nominal Capacity per IEC 61960	134.6 Ah / 7.0 kWh
Communication Protocols	J1939 (29-bit)
Discharge Temperature Range	-20°C to +60°C
Storage Temperature Range (1 Month / 1 Year)	-20° to +60°C / -20°C to +25°C
Charge Temperature Range	0°C to +45°C
Marketed Durability	2000 cycles to 80% initial capacity
Discharge Current, Nominal	134
Parallel Capable	Yes, up to 10 batteries
