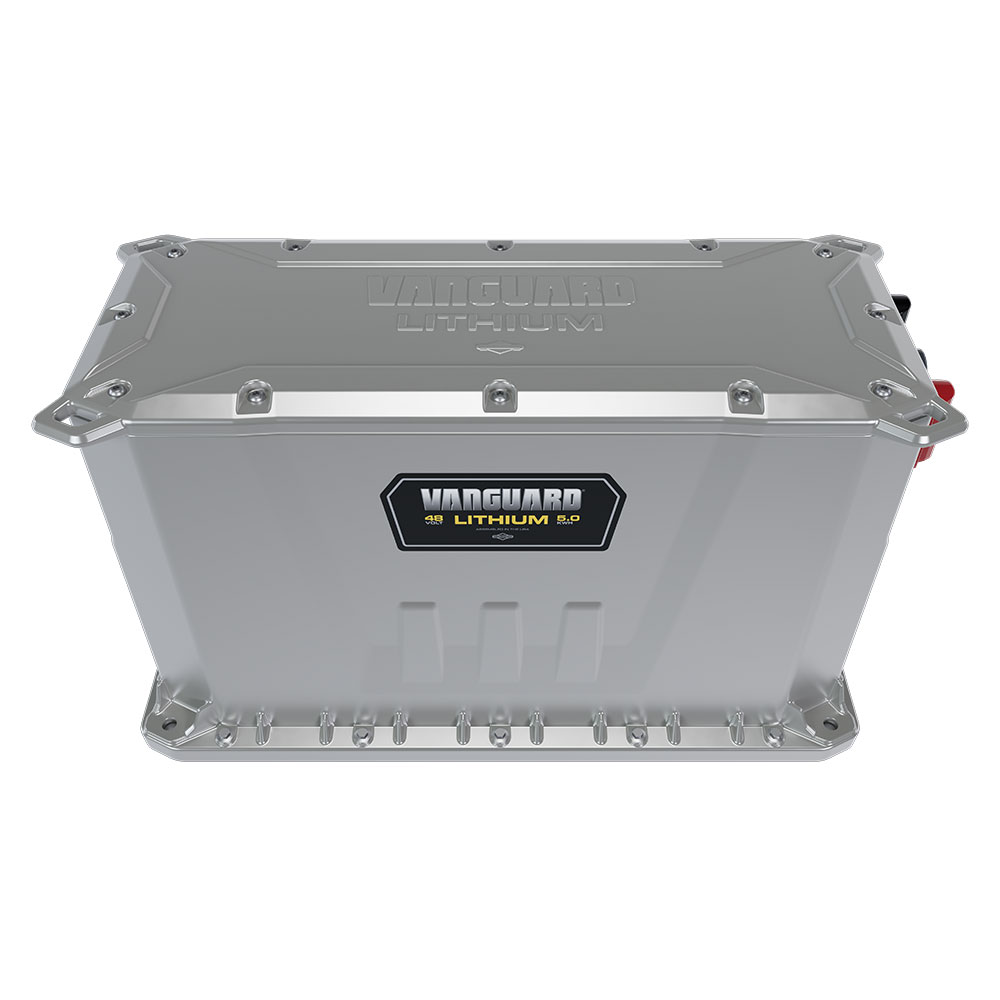

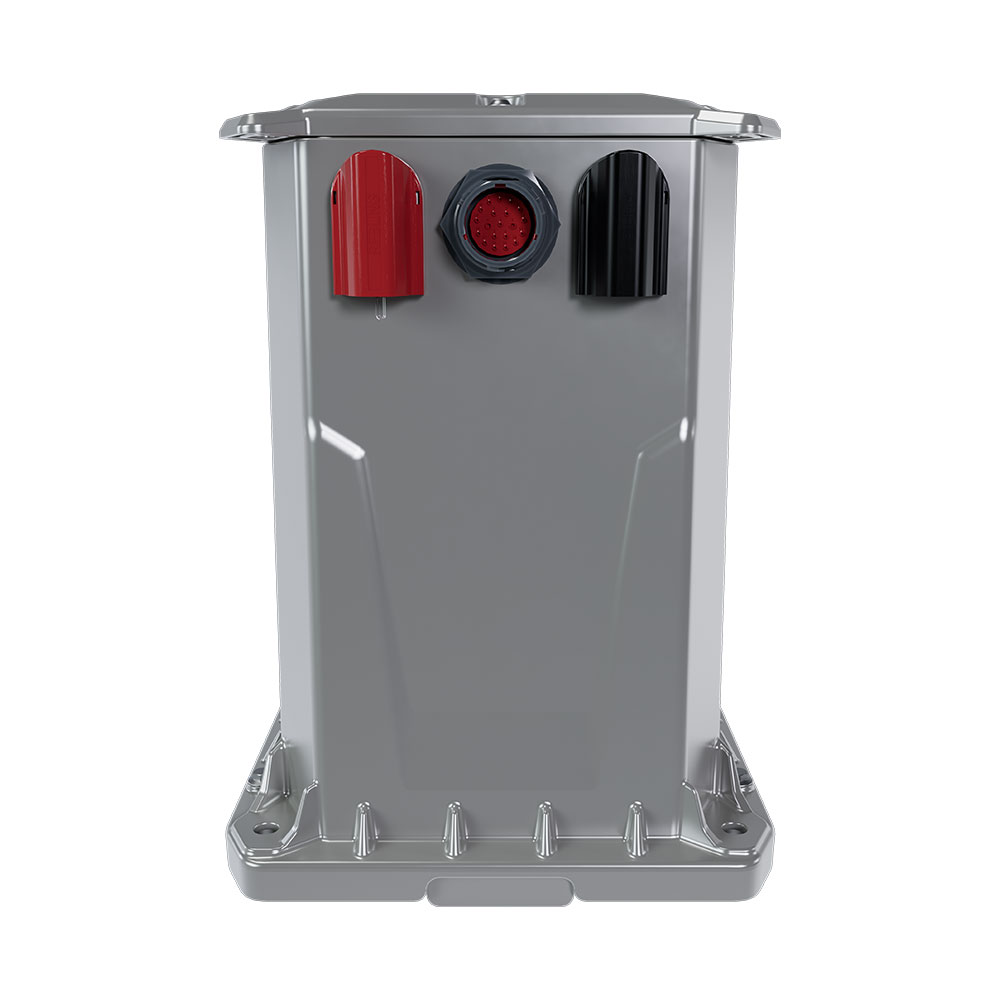

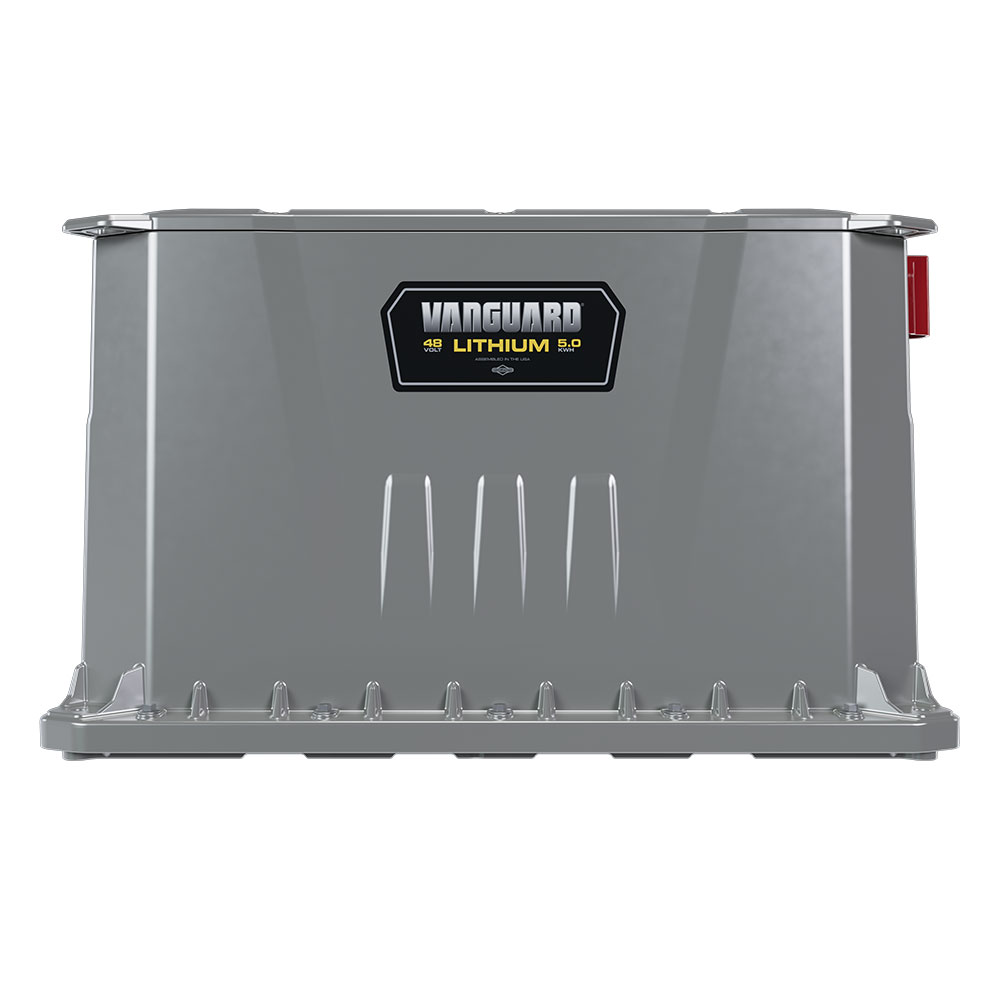

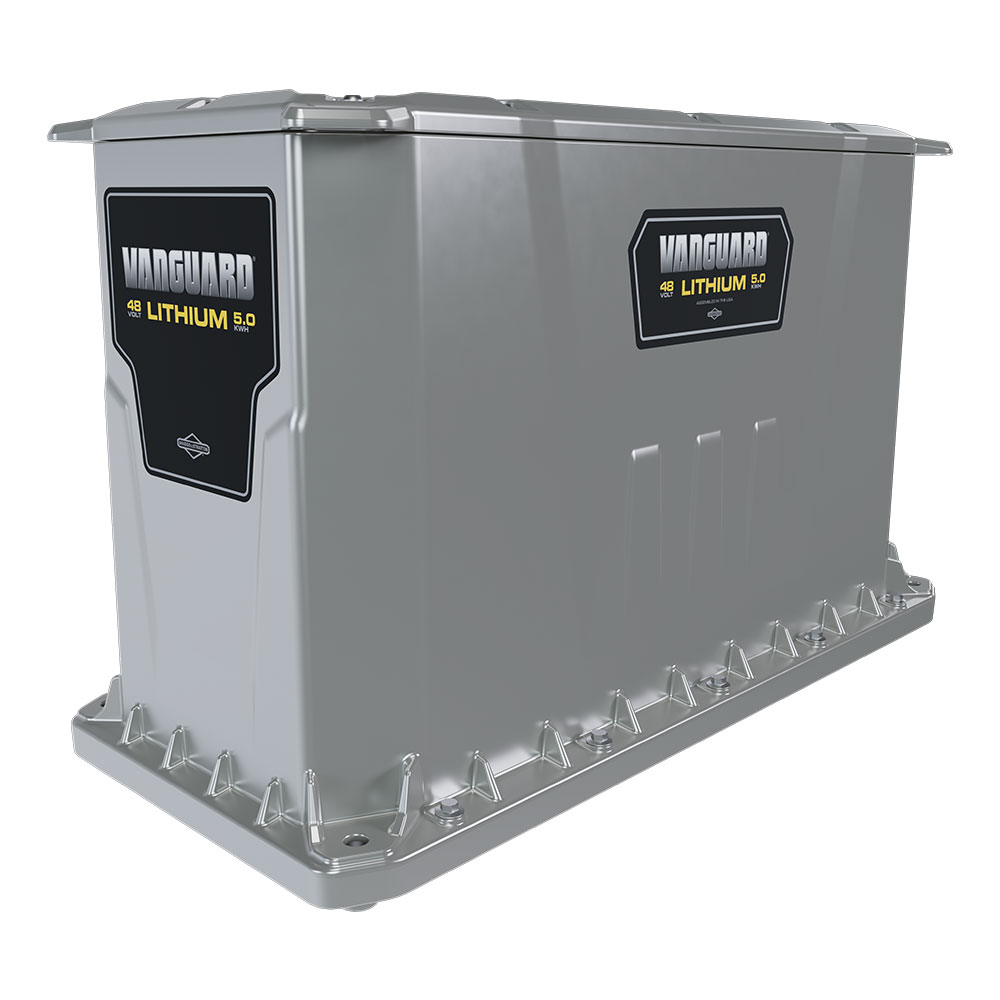

48V 5kWh* Commercial Battery

Fixed Battery Pack - Fi5.0

For maximum durability and protection, we have enclosed the Cell Module Assembly (CMA) units in a diecast casing.
For OEMs and operators, it's a total solution. OEMs get easy integration with their equipment and components that are serviceable. Operators get instant, reliable power for their jobs.
You can confidently apply battery power using modular designs that are engineered by experts.
To get more information, download our battery literature.

Learn About Battery Innovations

Features

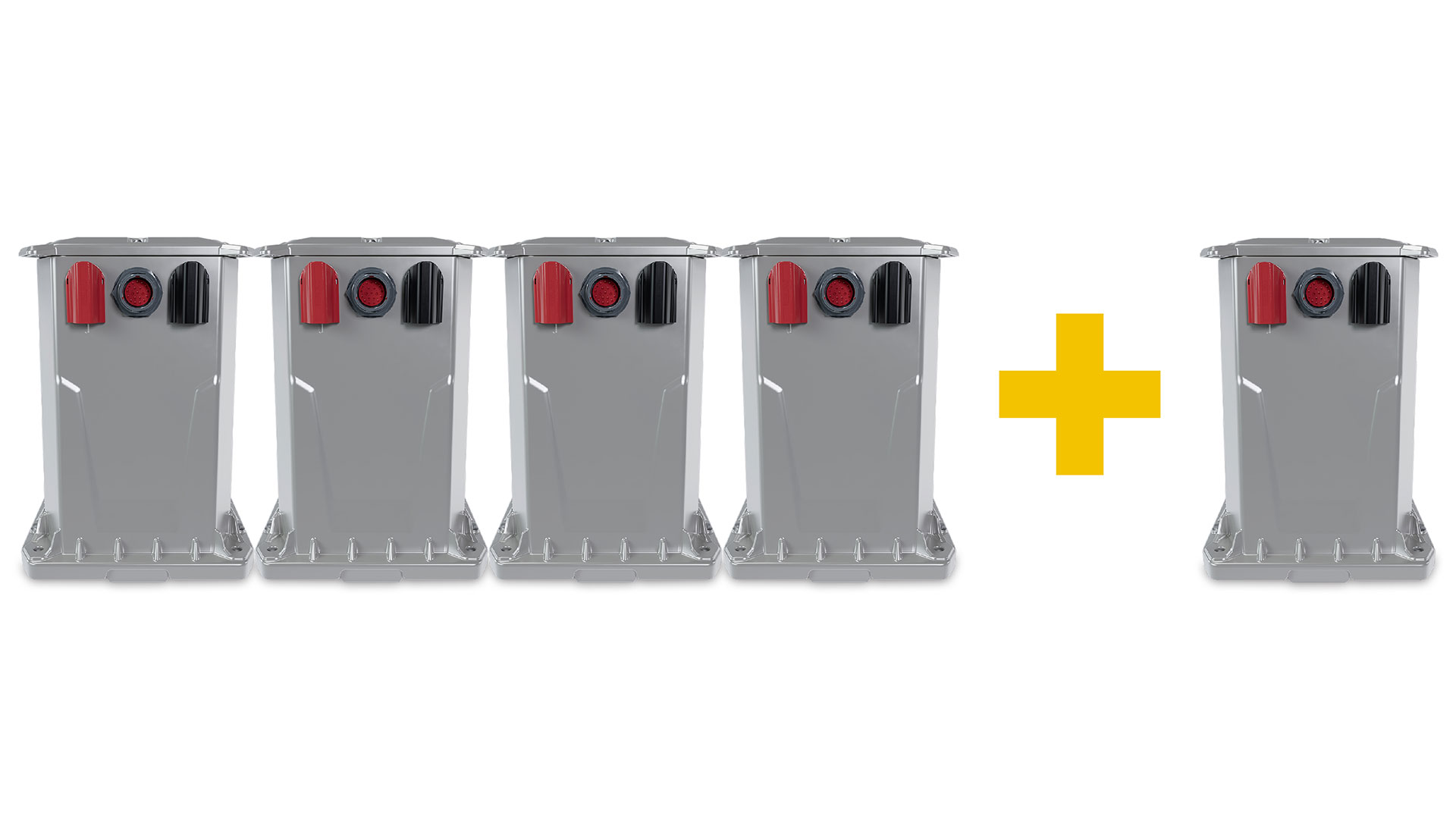

Expandable Power

Ability to add capacity ranges based on customer needs by connecting packs in parallel. For example, five 5kWh packs can be connected together for 25kWh of energy.

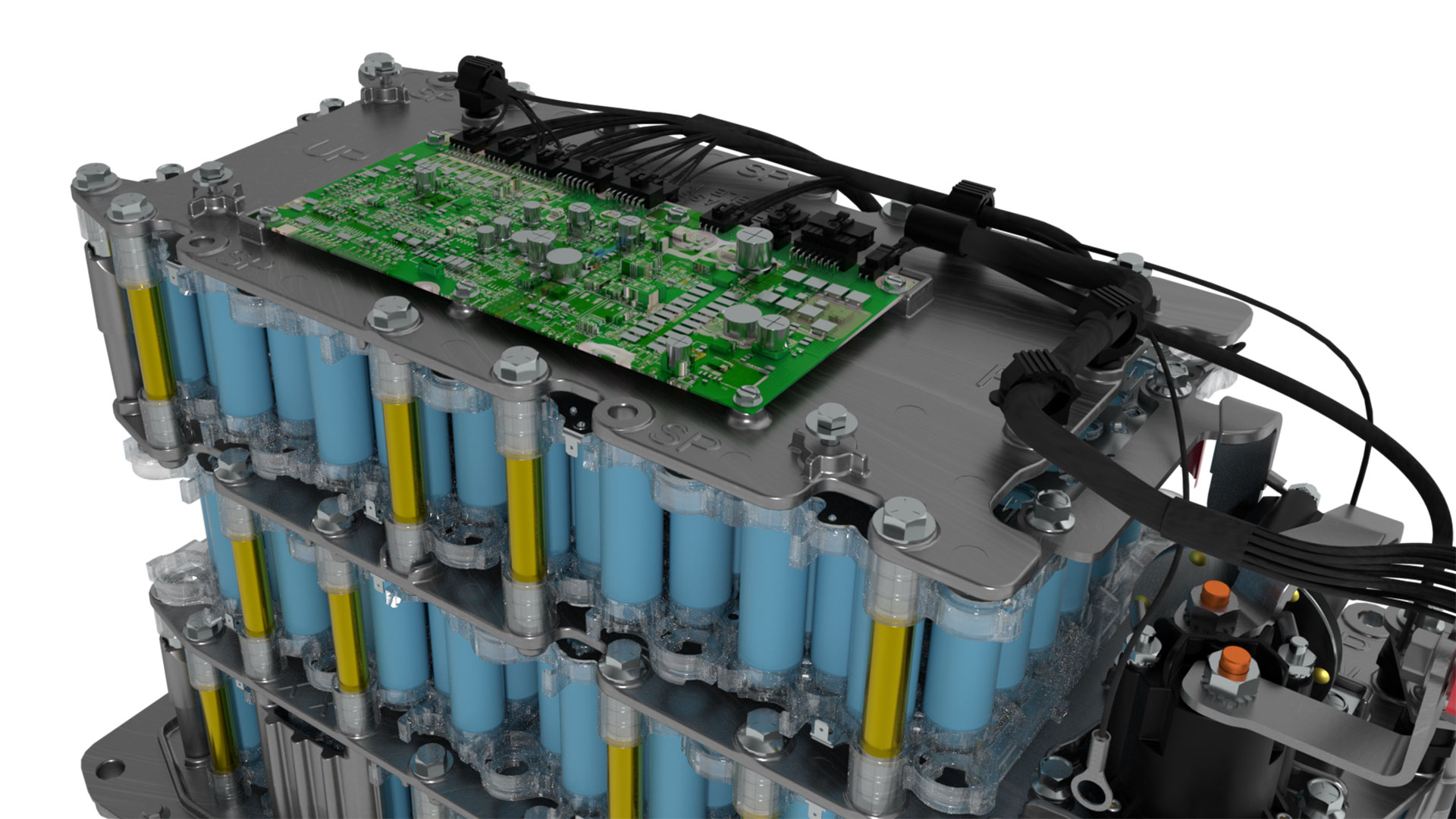

Safer Power

The Battery Management System (BMS) has features engineered to monitor the voltage and temperature of each CMA to make sure that it is operating within the nominal range for safety.

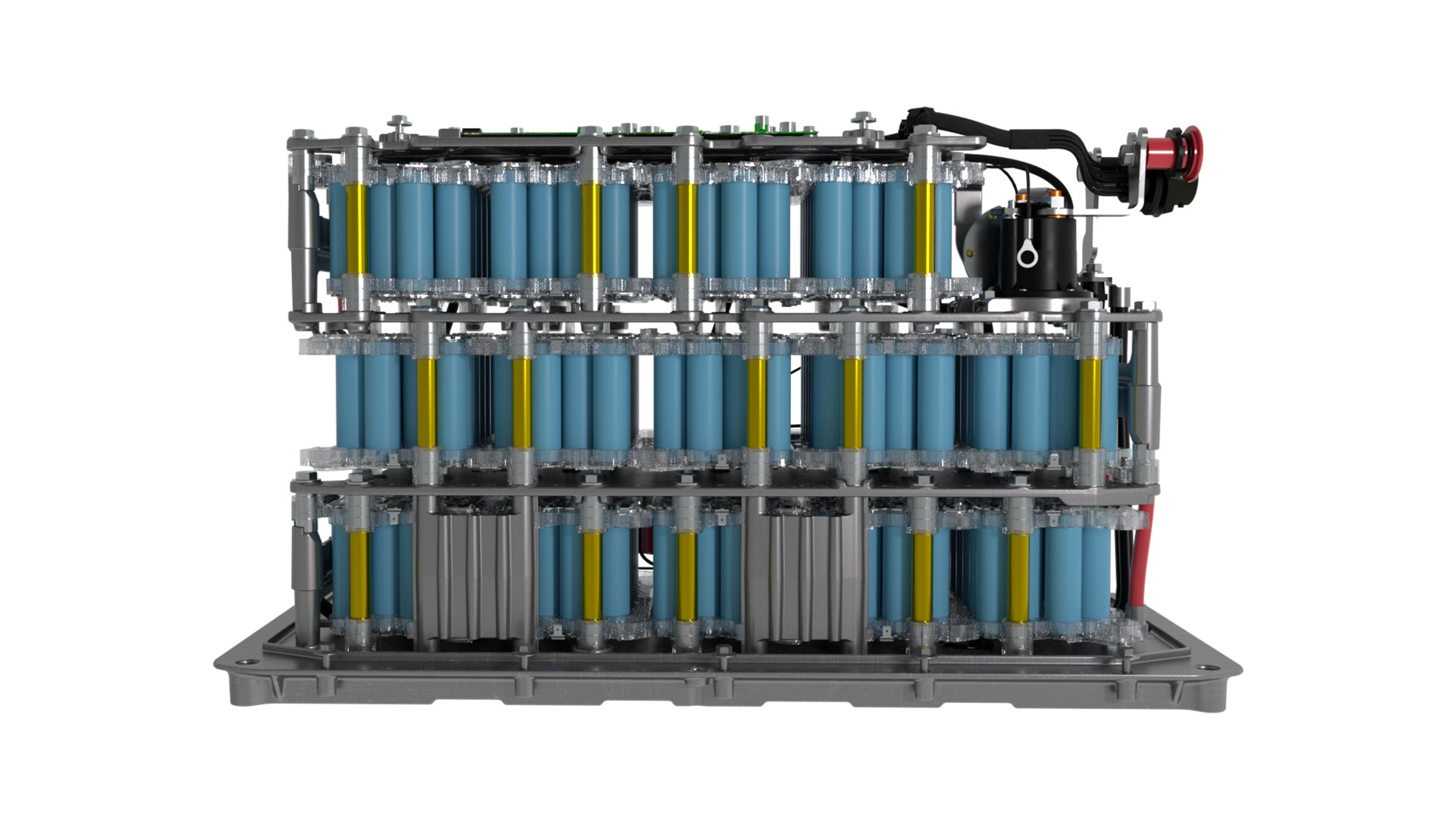

Passive Propagation Resistance

Tier plates are used to separate each Cell Module Assembly so that if one cell has an issue, it cannot propagate to neighboring cells.

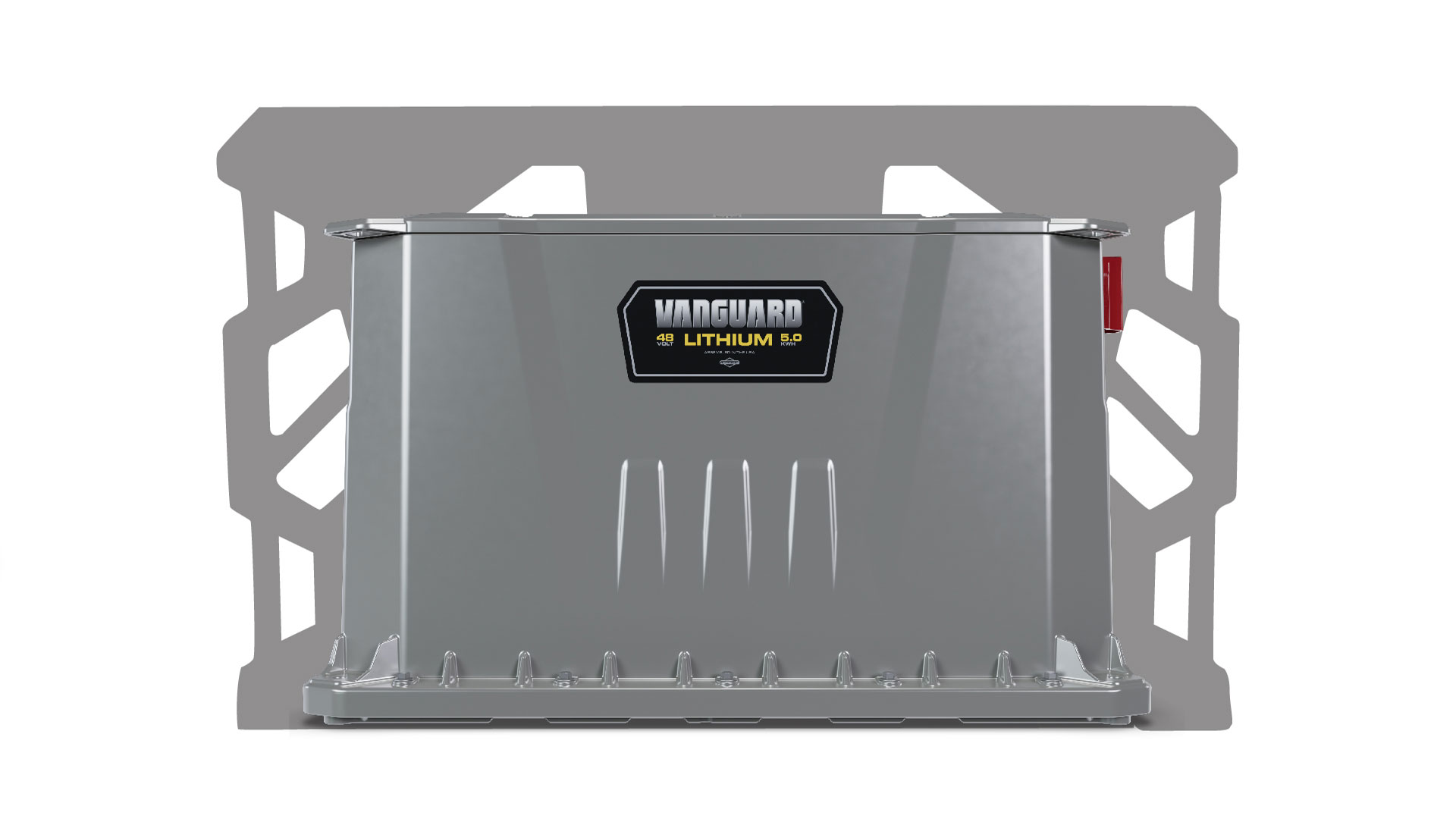

Lighter In Weight

The new diecast enclosure is 20% lighter in weight compared to the 5kWh roll cage battery.

Assembled_in_the_USA

Assembled in the USA

All battery packs are assembled at our advanced battery manufacturing facility in Tucker, Georgia.

8 Year Commercial Limited Warranty

Vanguard now offers an 8 year commercial limited warranty for all lithium-ion battery packs. CLICK HERE for more information.

Specifications

	48V 5kWh* Commercial Battery
Model Number	48V 5kWh* Commercial Battery
Fi Series Name	Fi5.0
Nominal Voltage (V)	51.6
Charge Voltage (per IEC 61960)	58.8
Discharge Cutoff Voltage	35.0
Nominal Capacity per IEC 61960	98.7 Ah / 5.0 kWh
Communication Protocols	J1939 (29-bit)
Discharge Temperature Range	-20°C to +60°C
Storage Temperature Range (1 Month / 1 Year)	-20° to +60°C / -20°C to +25°C
Charge Temperature Range	-10°C to +45°C
Marketed Durability	2000 cycles to 80% initial capacity
Discharge Current, Nominal	100
Parallel Capable	Yes, up to 10 batteries
