48V 3.5kWh* Commercial Battery

Fixed Battery Pack - Fi3.5

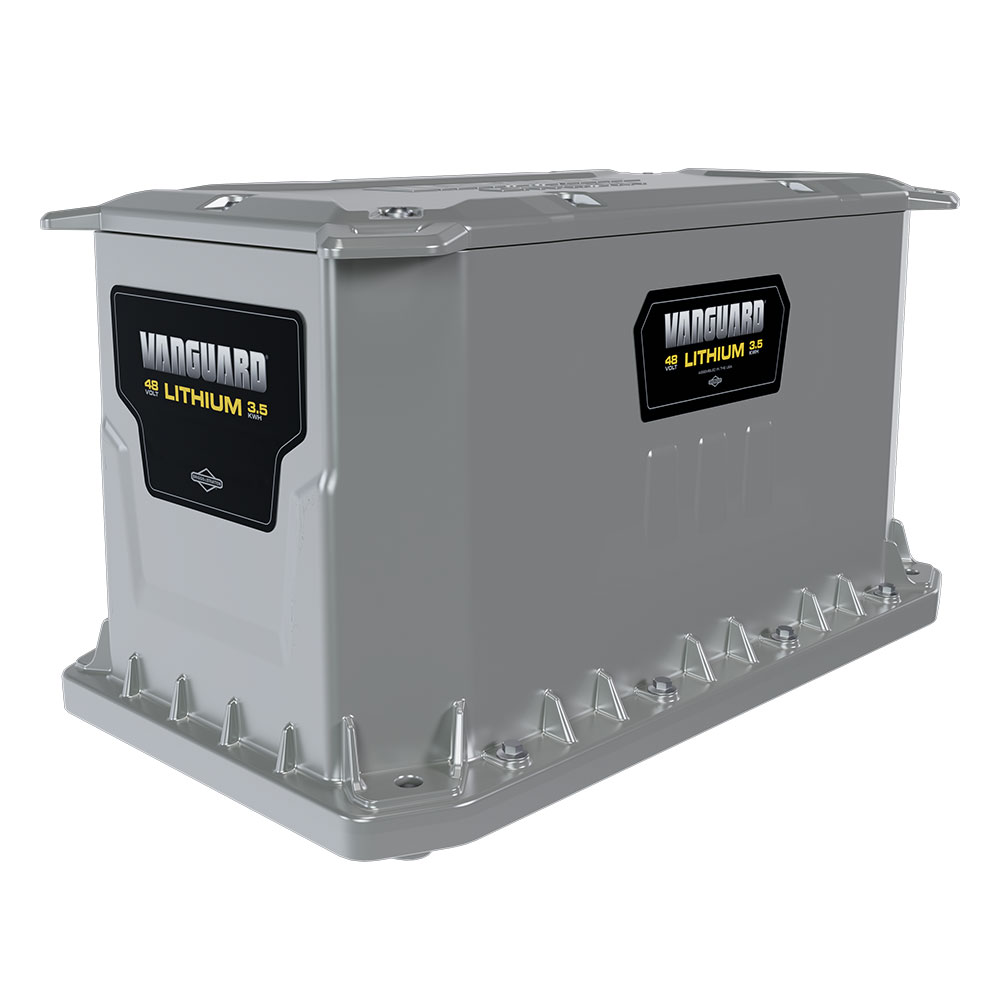

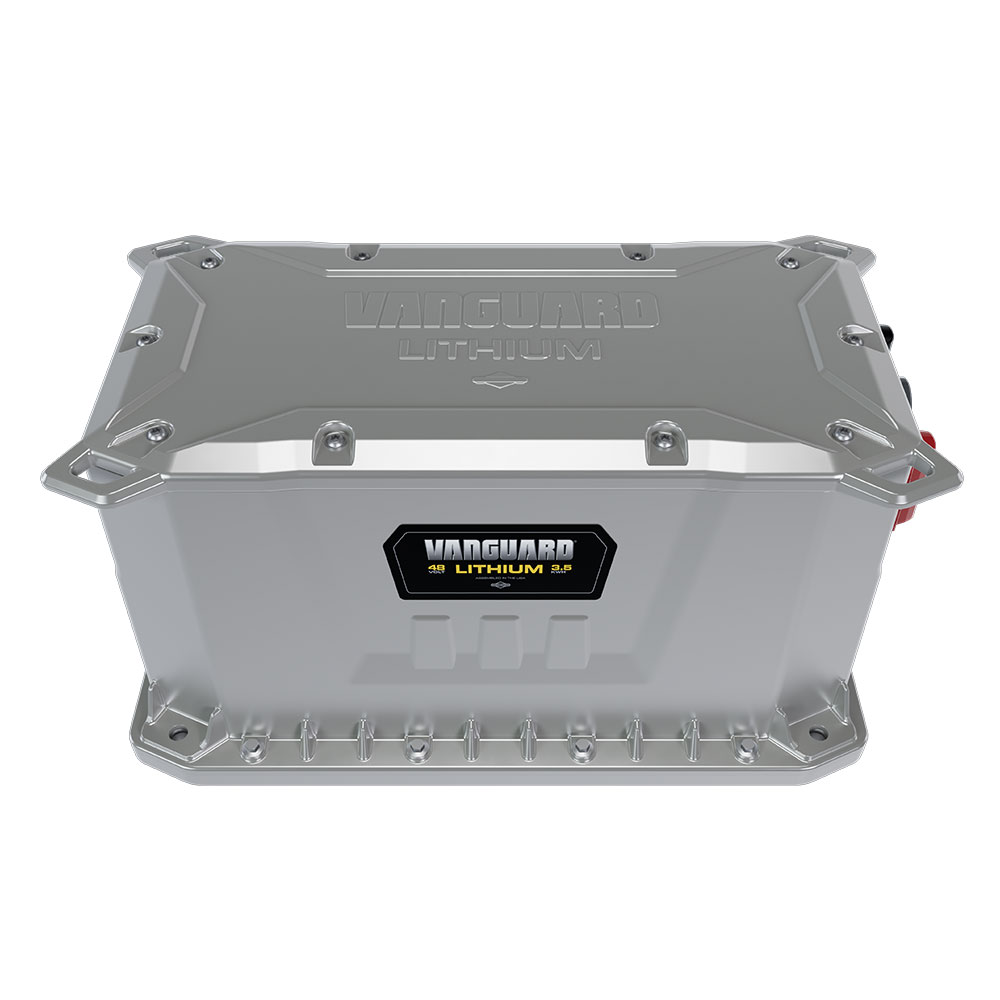

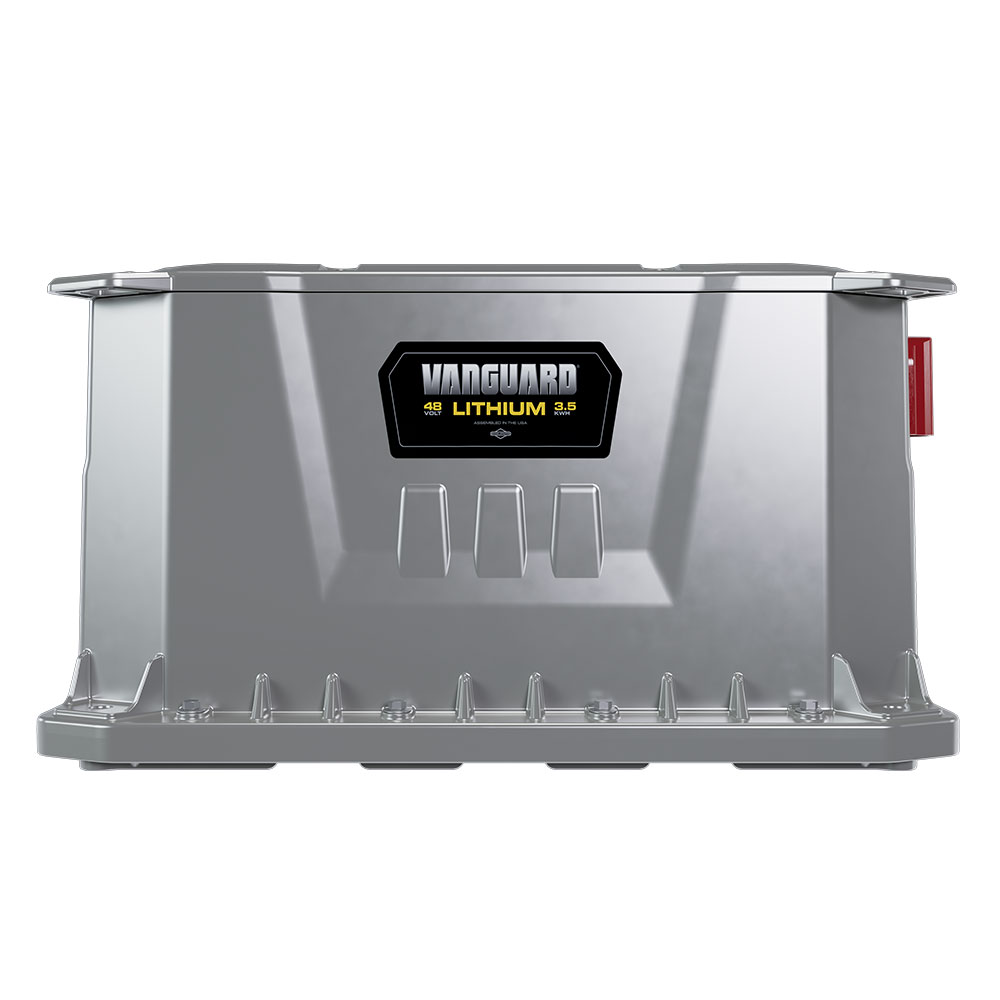

For maximum durability and protection, we pack our Cell Module Assembly (CMA) units in a diecast aluminum casing.
To serve both OEMs and operators, we have created a total solution that seamlessly integrates with OEMs’ equipment. Operators can expect instant, reliable power for the job at hand.
Our battery’s modular design was designed by expert engineers to apply power you can rely upon.
To get more information, download our battery literature.

Learn About Battery Innovations

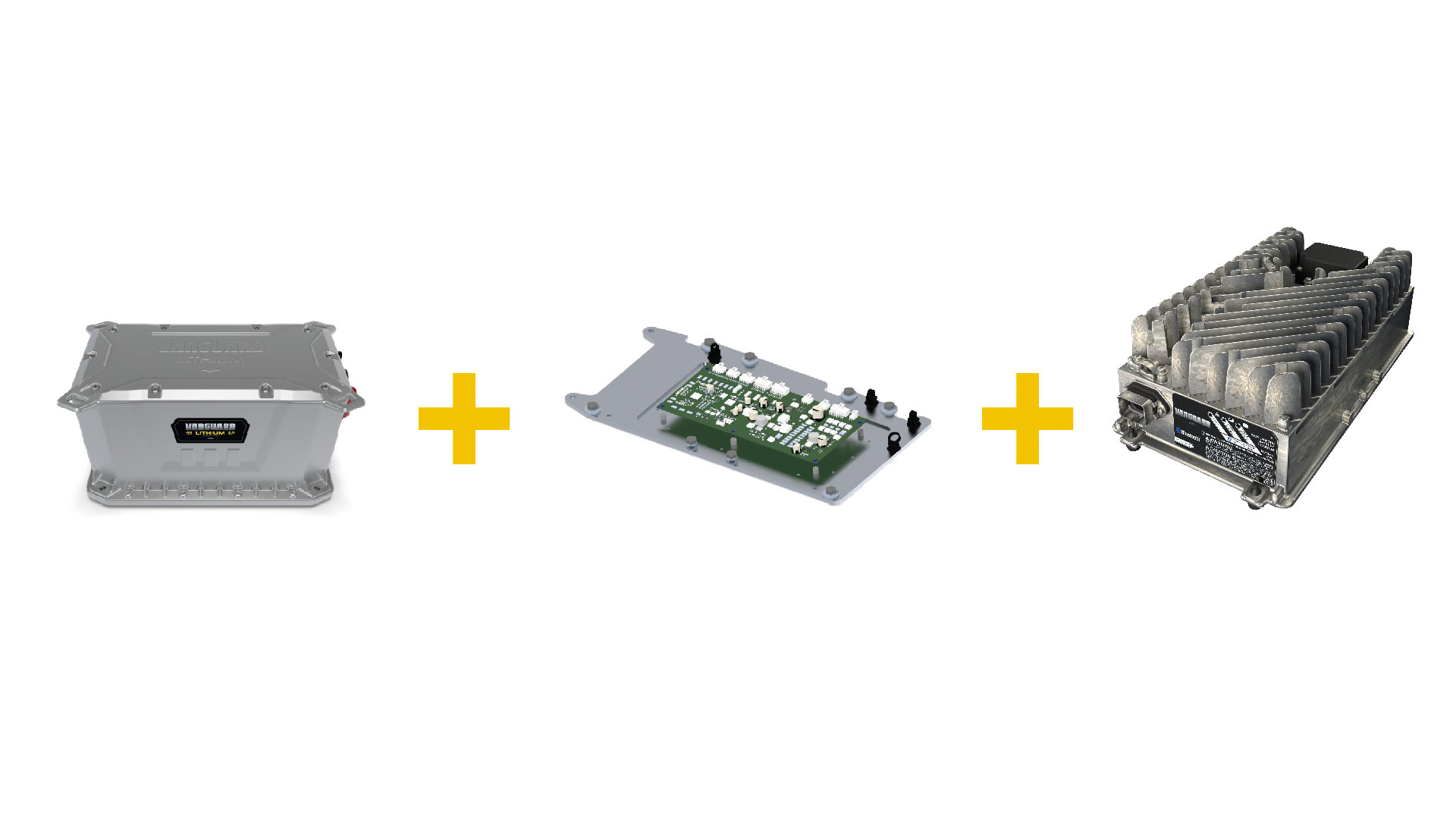

The commercial battery is part of an all-in-one system; this includes its lithium-ion cells, computerized Battery Management System, and charger.

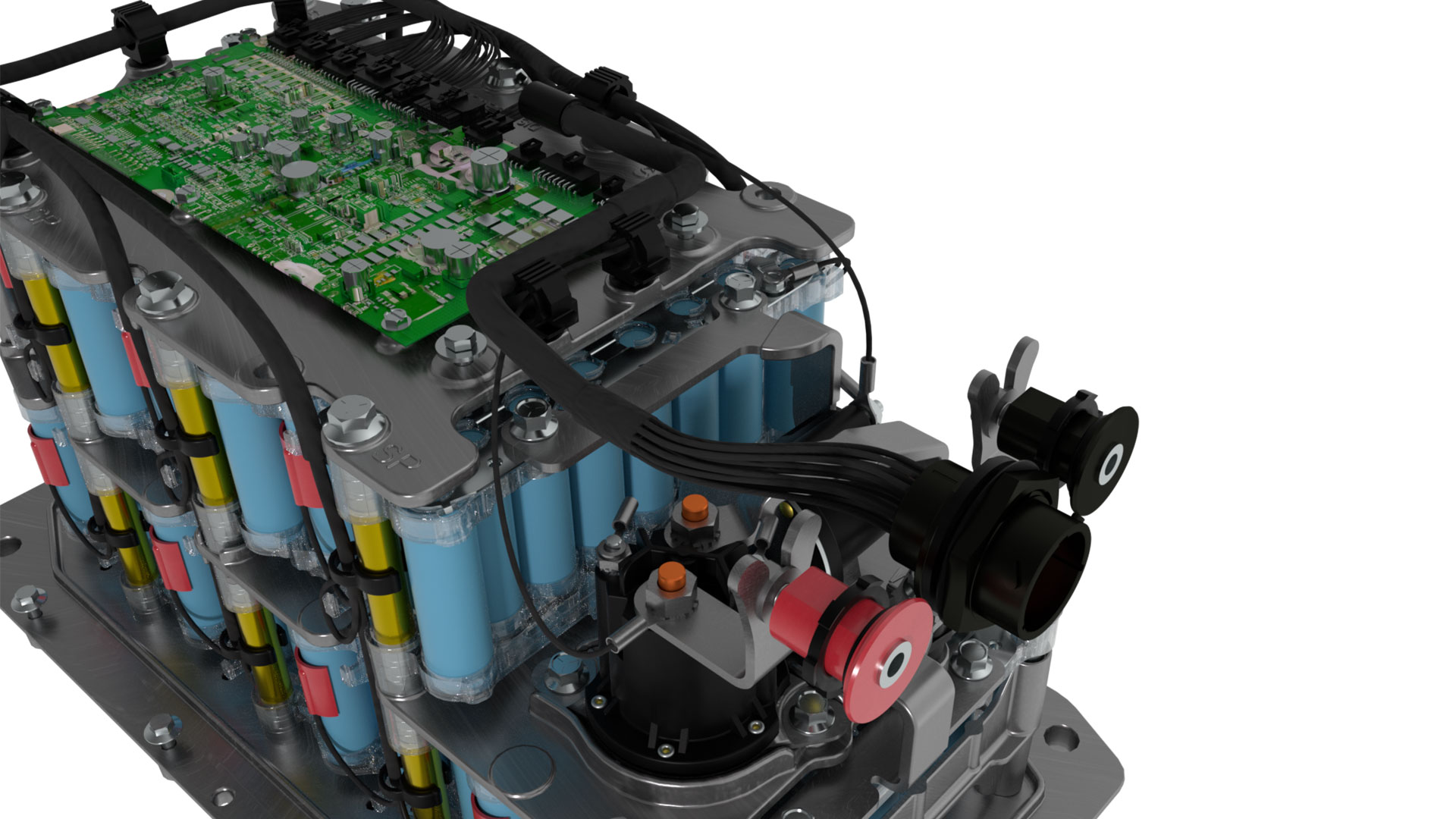

We are committed to safety and efficient operations, which is why the Battery Management System (BMS) constantly measures voltage and temperature.

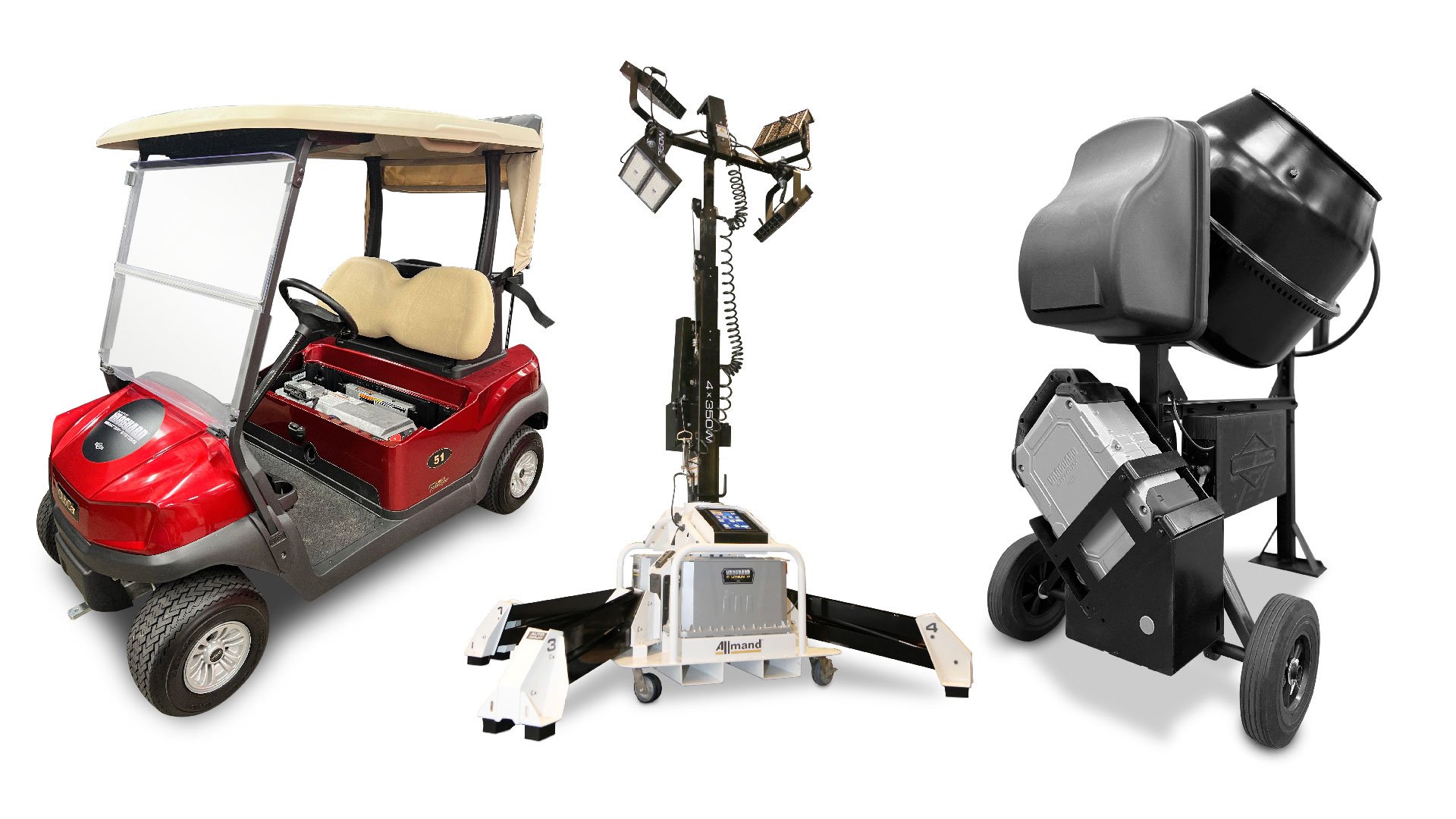

Vanguard batteries can power a diverse range of applications across many markets.

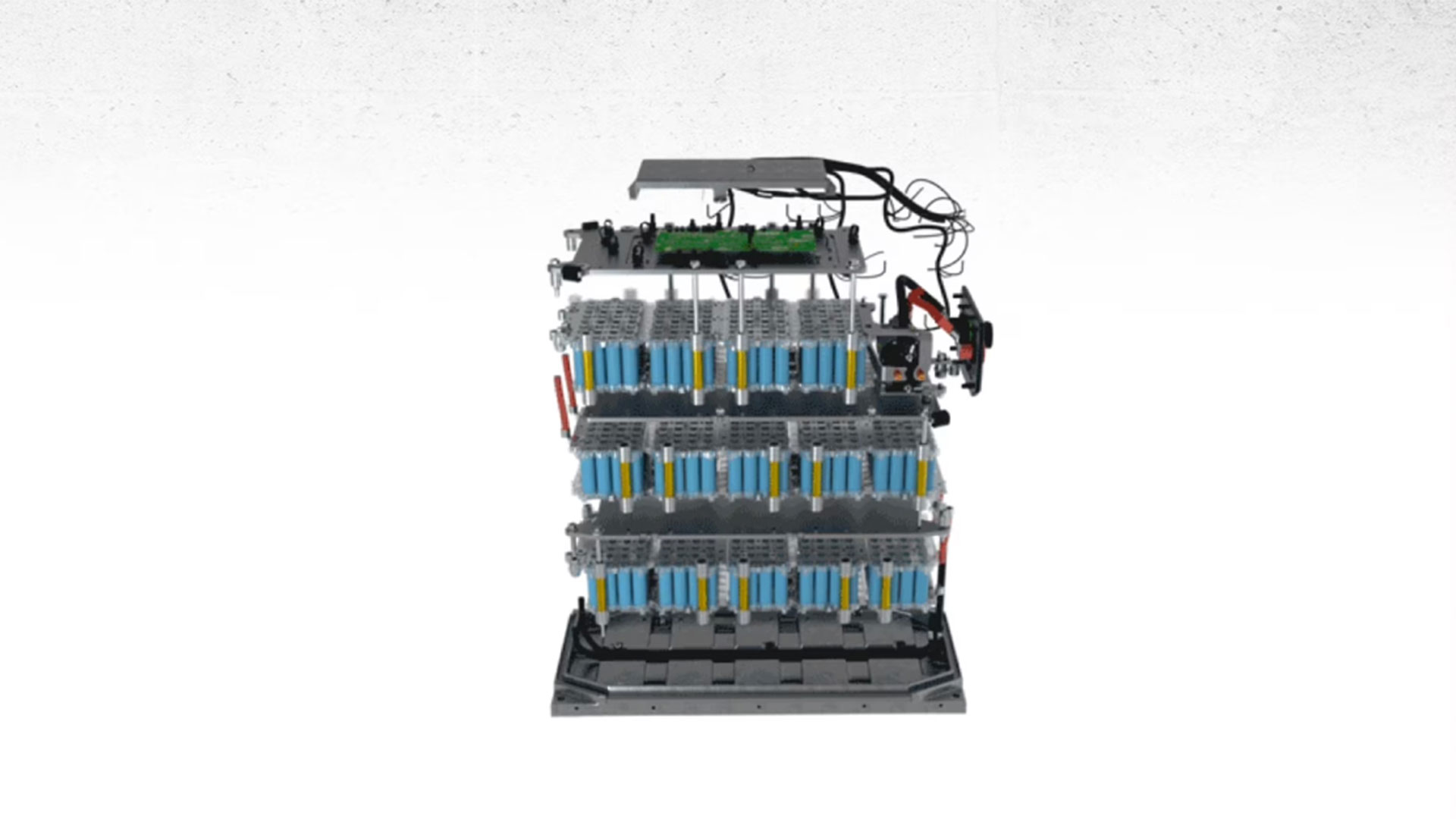

There is very limited plastic or combustible material on the inside of the battery.

The complete elimination of harmful gases makes this product great for indoor use and reduces environmental impacts.

Vanguard now offers an 8 year commercial limited warranty for all lithium-ion battery packs. CLICK HERE for more information.

	48V 3.5kWh* Commercial Battery
Model Number	48V 3.5kWh* Commercial Battery
Fi Series Name	Fi3.5
Nominal Voltage (V)	51.6
Charge Voltage (per IEC 61960)	58.8
Discharge Cutoff Voltage	35.0
Nominal Capacity per IEC 61960	67.5 Ah / 3.5 kWh
Communication Protocols	J1939 (29-bit)
Discharge Temperature Range	-20°C to +60°C
Storage Temperature Range (1 Month / 1 Year)	-20° to +60°C / -20°C to +25°C
Charge Temperature Range	0°C to +45°C
Marketed Durability	2000 cycles to 80% initial capacity
Discharge Current, Nominal	67
Parallel Capable	Yes, up to 10 batteries
