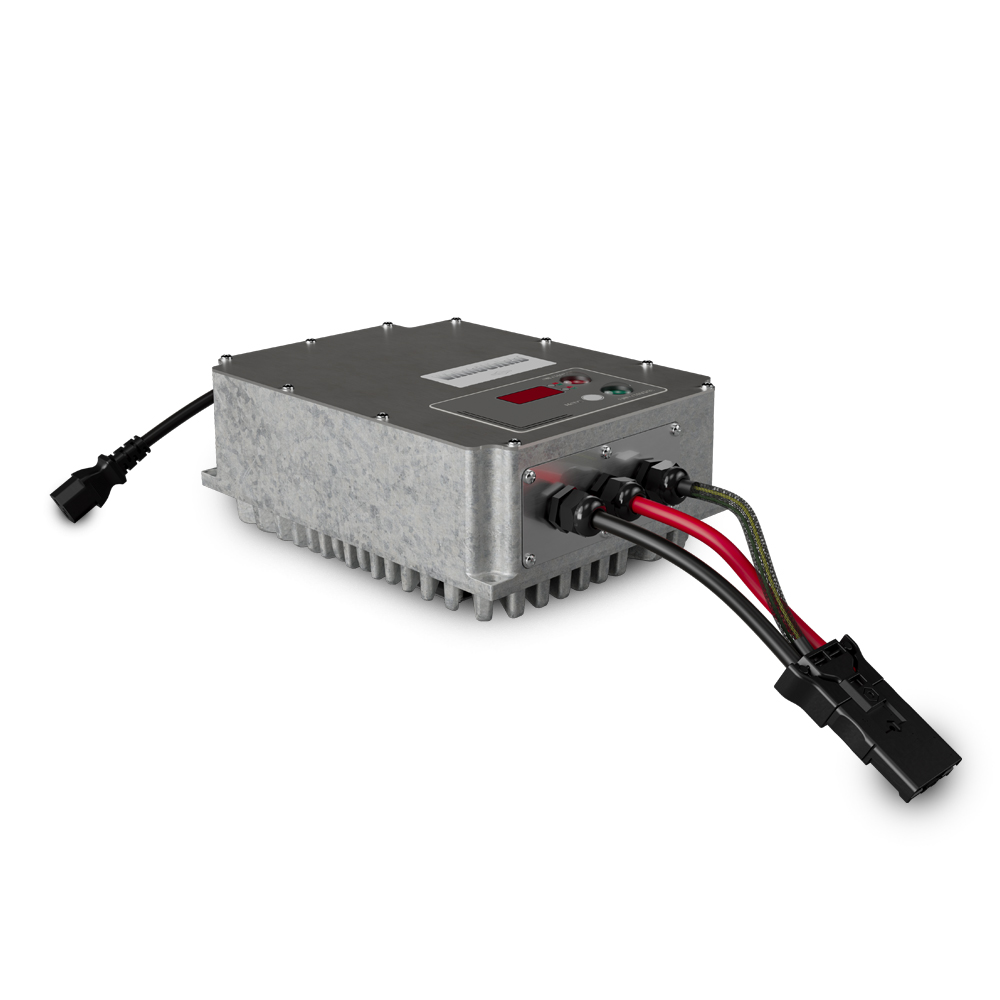

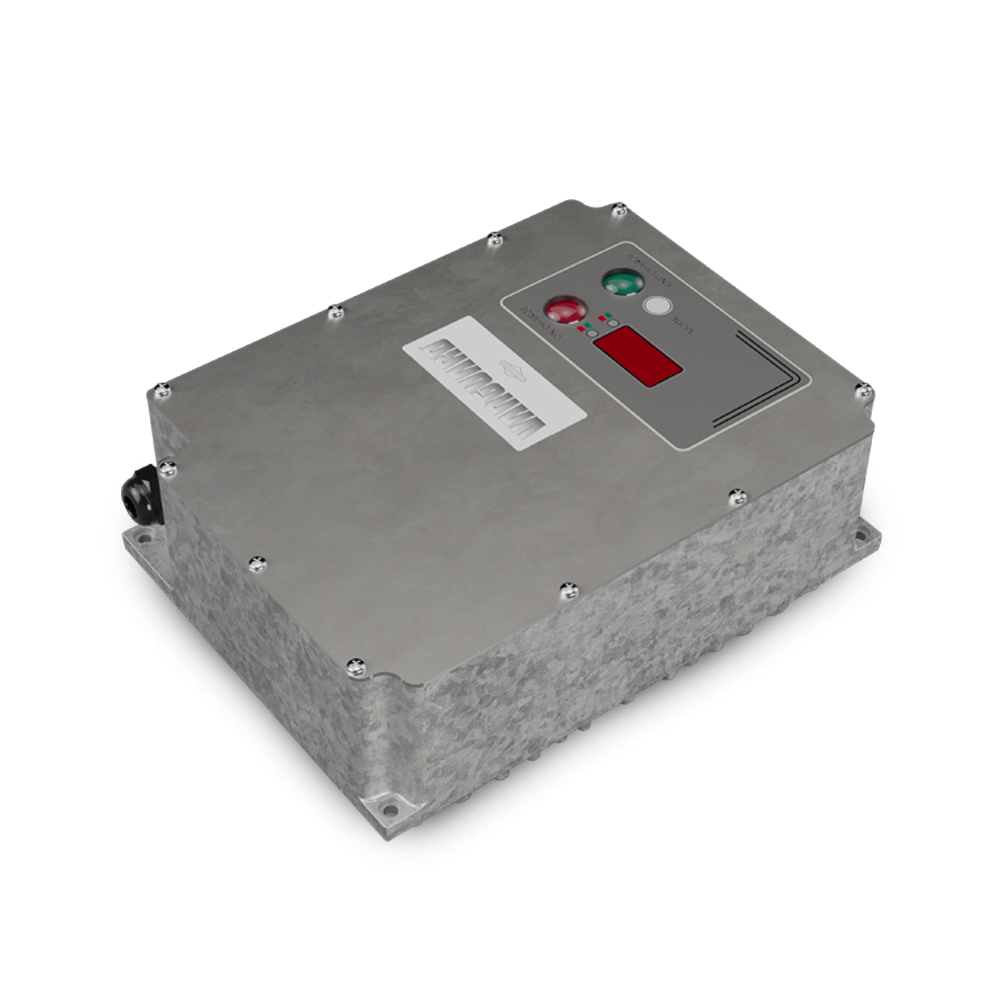

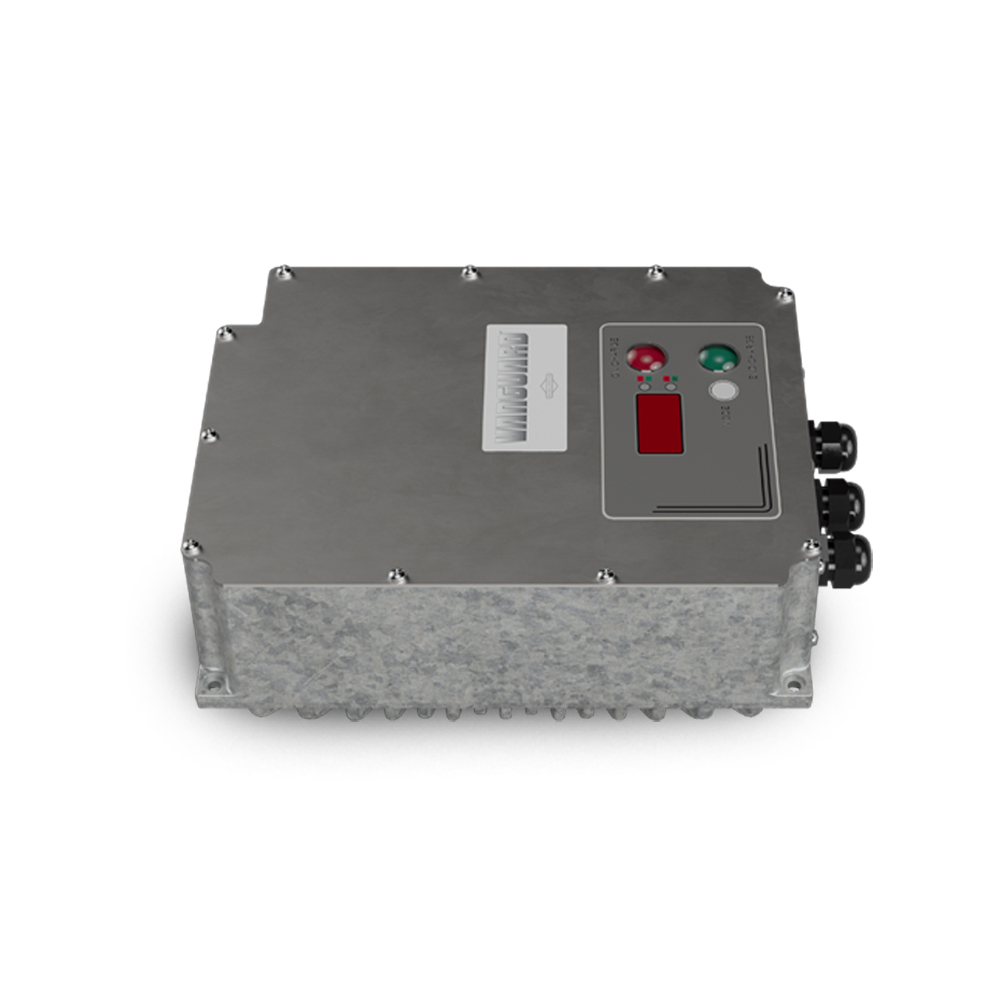

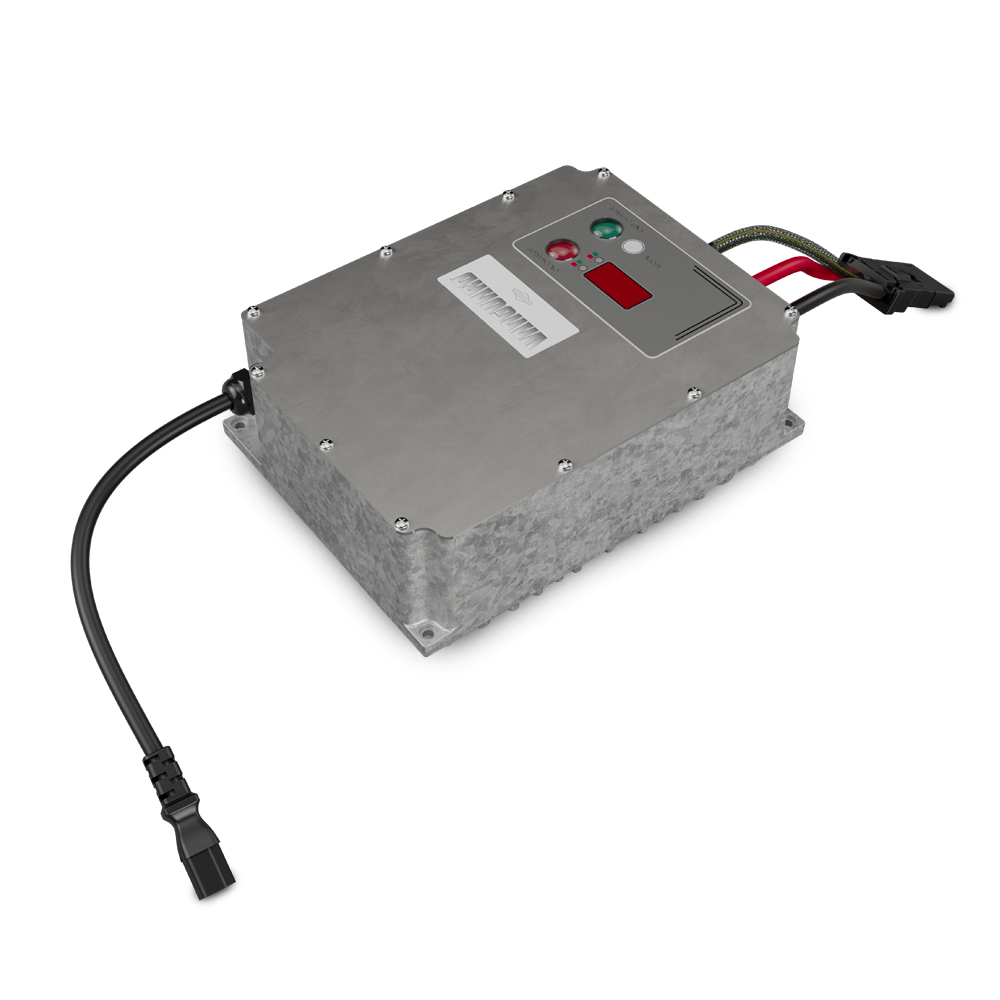

Vanguard™ 3000W Charger

  • NEW!
  • Works seamlessly with all Vanguard Battery Packs.
  • A higher wattage charger for more power.

Features

Convenient Charging Options

Ability to plug the charger into a standard 120-volt wall outlet or 240V outlet to seamlessly deliver electric current to the Vanguard battery.

Powerful and Safe Charging

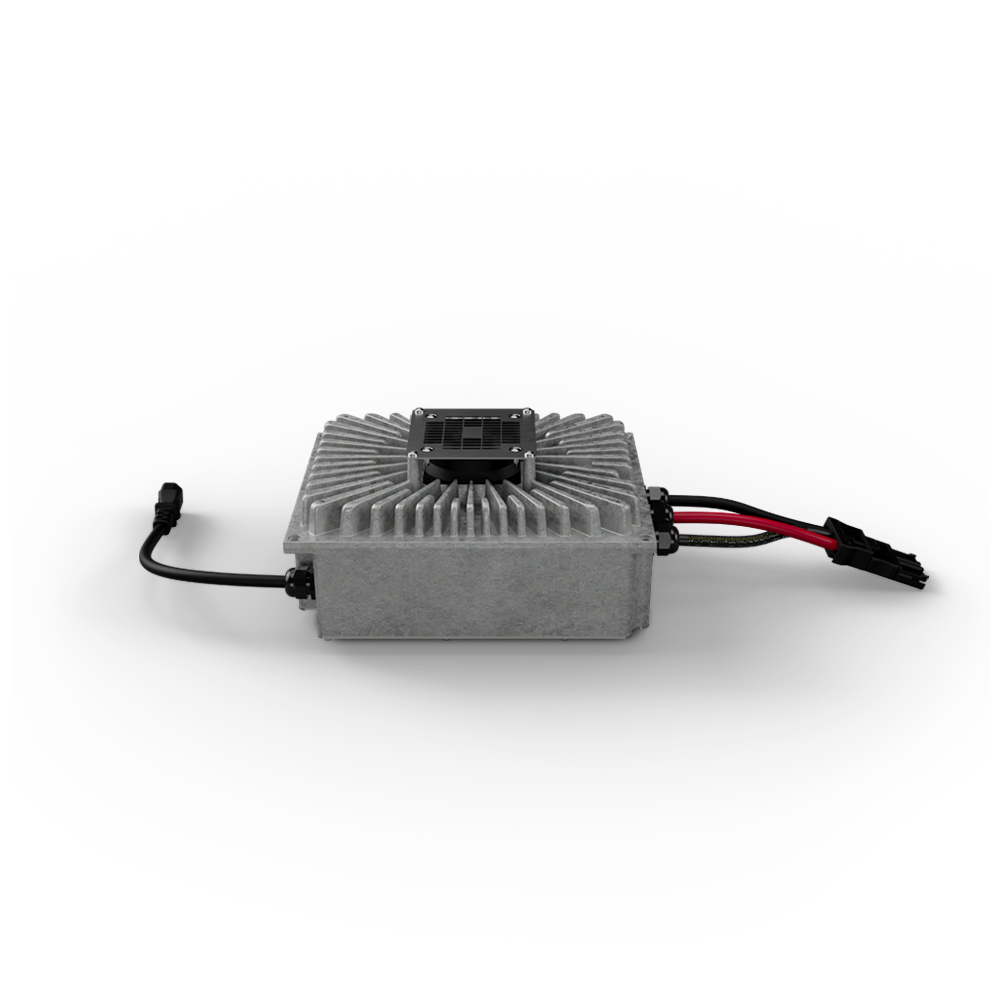

Rugged design made to be mounted on-board or off-board. The Vanguard charger is built with cooling fins that dissipate heat. Active cooling allows you to both safely and effectively maximize the charging rate to your Vanguard batteries.

Clear Charging Communication

This battery charger is designed with LED lights to clearly illuminate the battery’s charging status – ON charge, END charge.

Supports Many Applications

This charger gives Vanguard batteries the power it needs to support applications in the recreation, floor care, industrial, and outdoor power equipment markets.

Specifications

  Vanguard™ 3000W Charger
Model Number Vanguard™ 3000W Charger
Storage Temperature Range (1 Month / 1 Year) -40°C to 80°C (-40°F to 176°F)
Enclosure Rating IP55
Voltage Range, Rated (AC Input) 100-240 Vac
Voltage Range, Operating (AC Input) 90-264 VAC (reduced output when powered by 120 VAC)
Frequency, Rated (AC Input) 50-60 Hz
Phase (AC Input) Single-phase
Current, Maximum (AC Input) 16 A (at 220 VAC)
Efficiency (AC Input) ≥90%
Protection (AC Input) Current limit, surge, transient, under voltage, over voltage
Power (DC Output) 3000W
Voltage, Nominal (DC Output) 48 VDC
Voltage, Maximum (DC Output) 58.8 VDC
Current Maximum (DC Output) 60 A
Protection (DC Output) Current limit, short circuit, reverse polarity, under voltage, over voltage, wrong battery voltage
Operating Temperature Range -20°C to 50°C (-4°F to 122°F)
Operator's Manuals No documents found.
*Total energy measured using a 0.2C discharge per IEC 61960-3:2017
