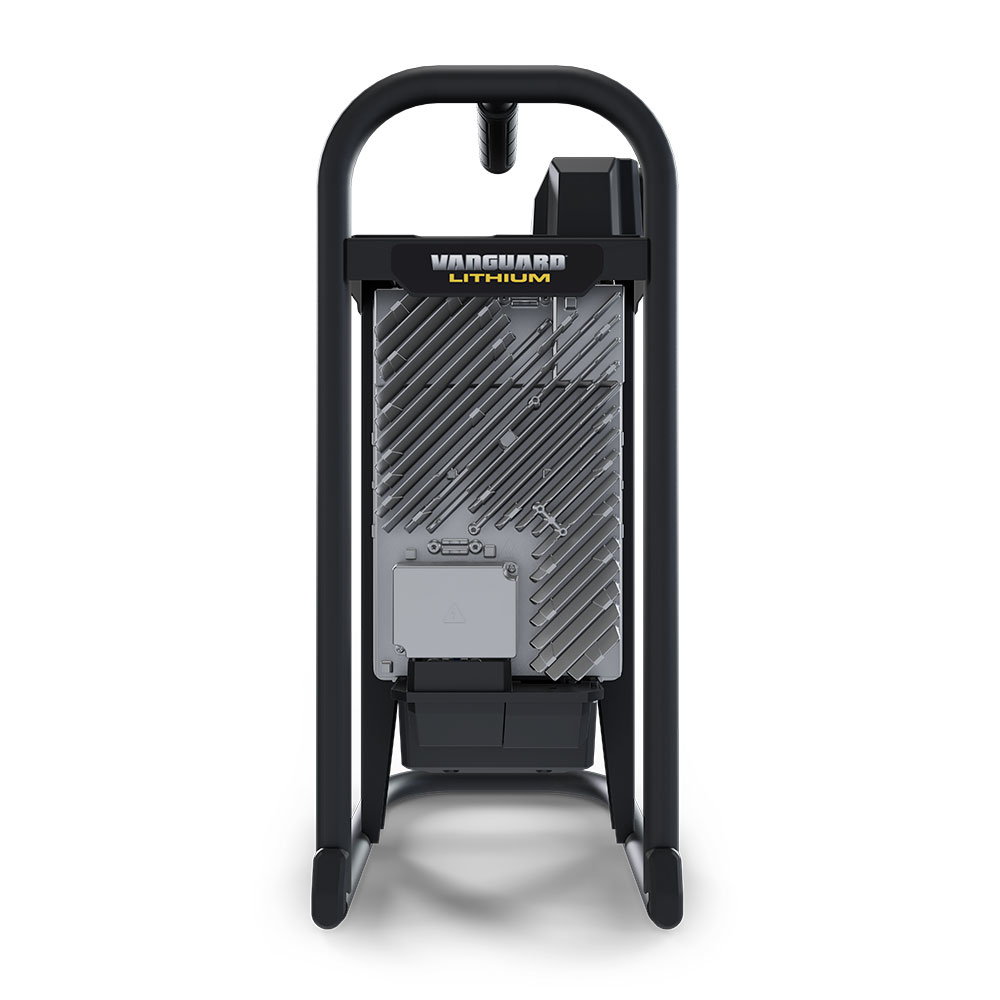

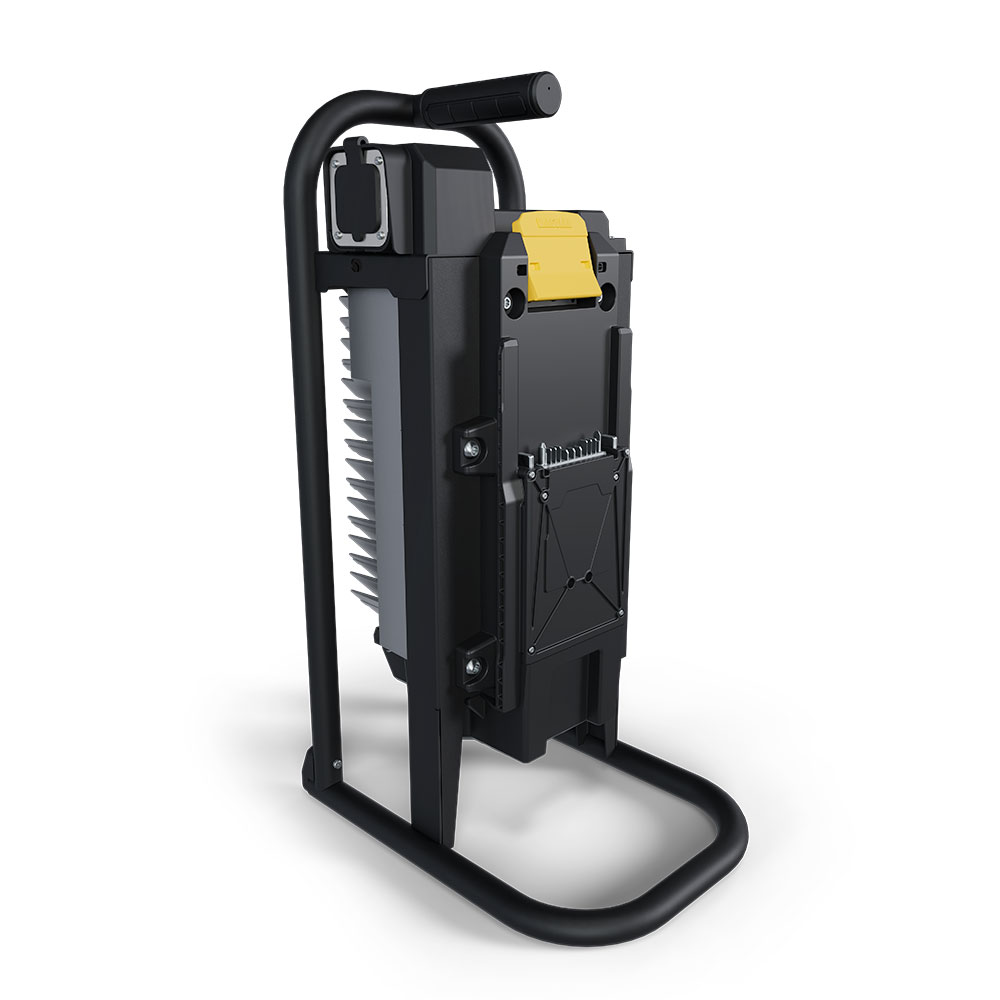

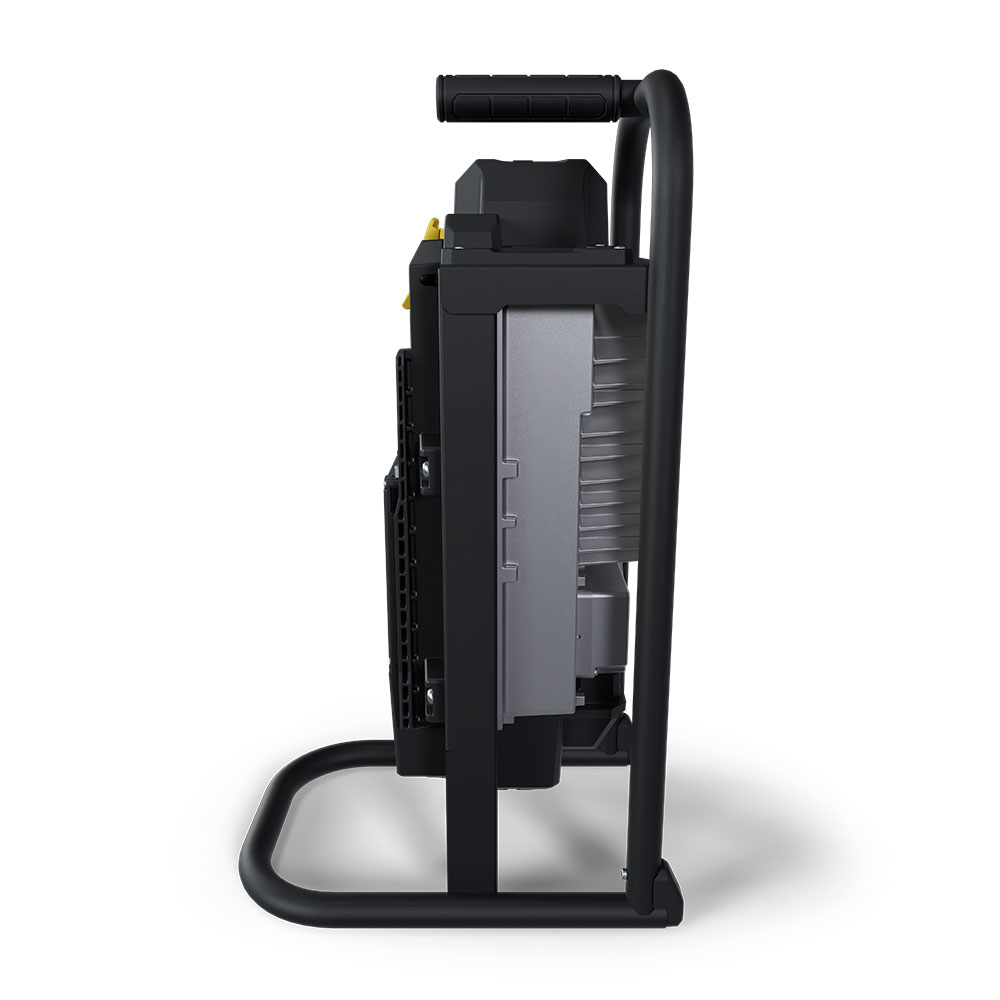

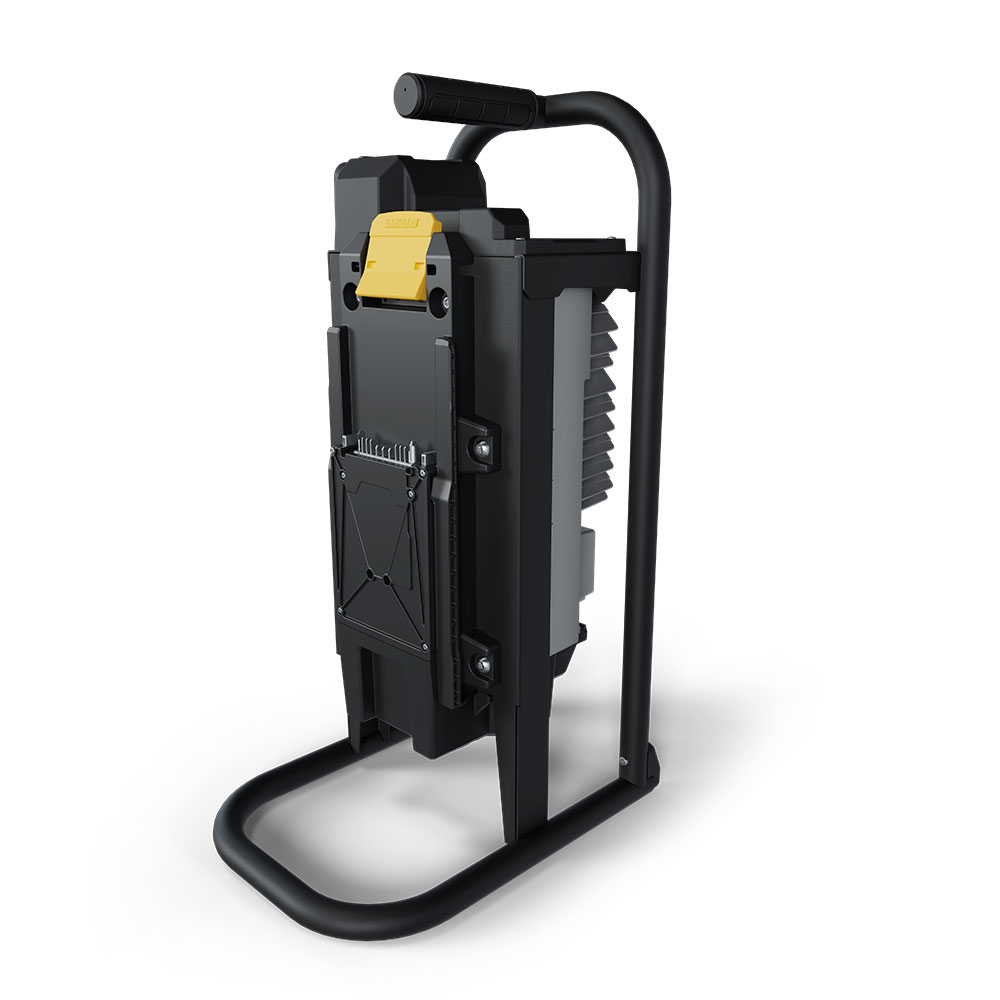

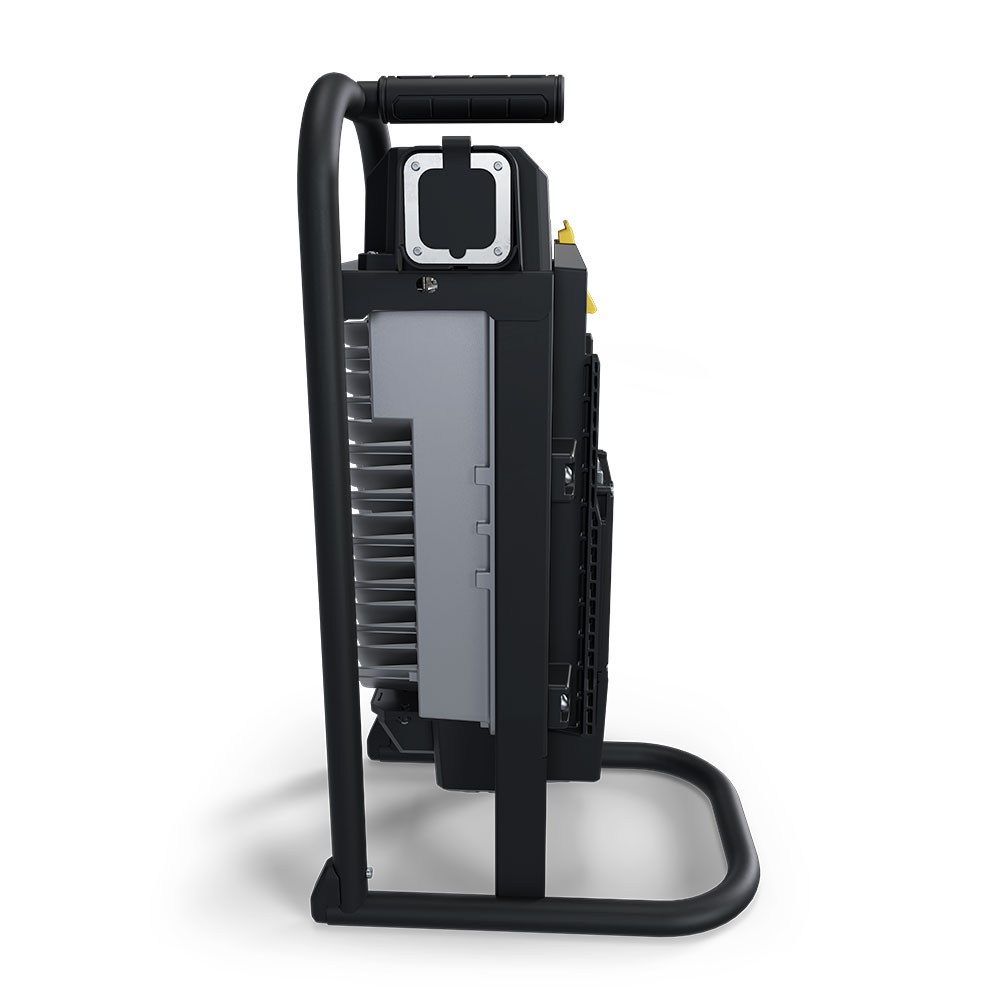

Vanguard® 1425W Portable Charger
Vanguard® 1425W Portable Charger
- Effortlessly integrates with the Vanguard Si1.5 swappable commercial battery.
- Convenient, all-in-one design for fast and simple charging.
- Includes Bluetooth functionality for real-time monitoring of AC input and DC output specifications.

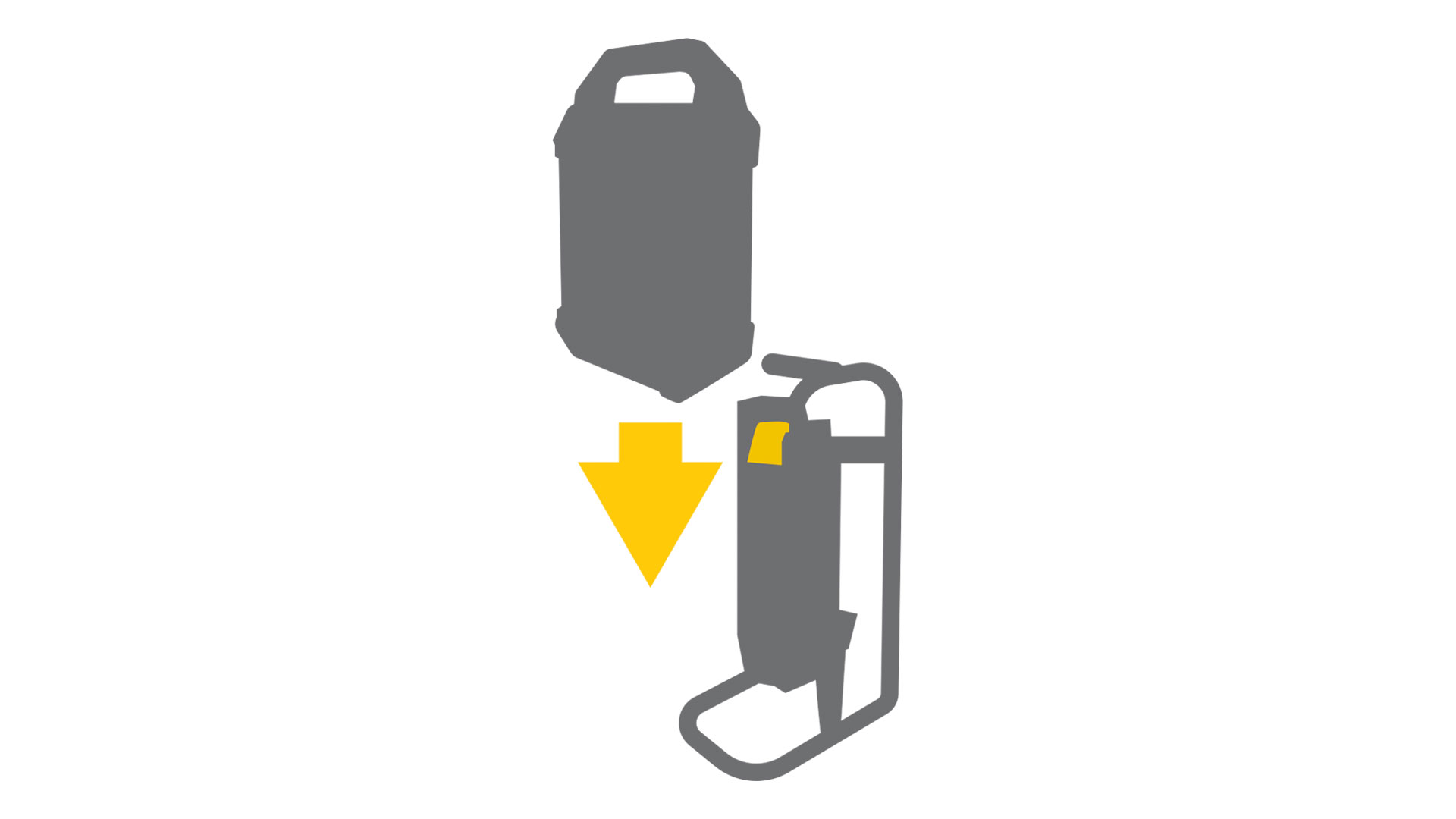

- Uses the same docking system as your equipment for seamless user interaction.
Click and drag image to rotate.
Features
Specifications
At least one product must be displayed. Please select another option to remove this product
Enclosure Rating
IP66, NEMA 4
Voltage Range, Rated (AC Input)
100-240 VAC
Voltage Range, Operating (AC Input)
80-265 VAC (<108 VAC, reduced power)
Frequency, Rated (AC Input)
50-60 Hz
Frequency, Operating (AC Input)
45-65 Hz
Phase (AC Input)
Single-phase
Current, Maximum (AC Input)
<15 A
Efficiency (AC Input)
>91% peak
Protection (AC Input)
Current limit, surge, transient, under voltage, over voltage
Power (DC Output)
1425W
Voltage, Nominal (DC Output)
48 VDC
Voltage, Maximum (DC Output)
72 VDC
Current Maximum (DC Output)
30 A
Protection (DC Output)
Current limit, short circuit, reverse polarity, under voltage, over voltage, wrong battery voltage
Operating Temperature Range
-25°C to 60°C (-13°F to 140°F)
Storage Temperature Range
-40°C to 85°C (-40°F to 185°F)
