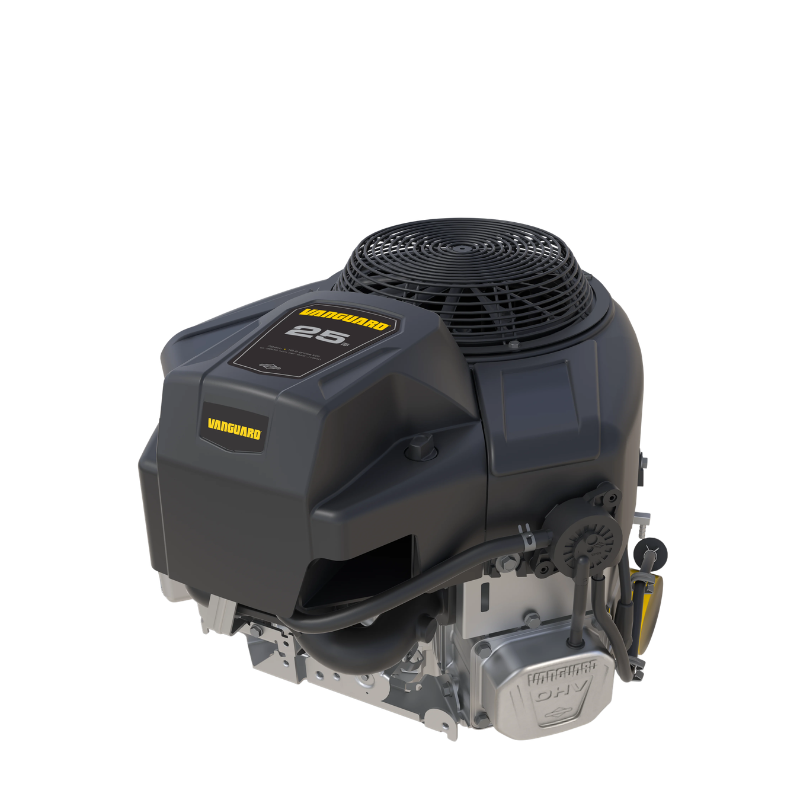

VANGUARD 18,6 Gross kW*

VERTICAL SHAFT V-TWIN COMMERCIAL ENGINE

POWER AND RELIABILITY FOR HOMEOWNERS & LIGHT COMMERCIAL USE

Vanguard™ V-Twin petrol engines deliver the performance and reliability that serious homeowners and light commercial users need from ride-on mowers, utility vehicles and other outdoor power equipment. The Vanguard 724cc engine produces 18,6 kW gross power* and is available with the optional patented Oil Xtend™ System, which extends the engine oil change interval to 250 hours, compared with the 100-hour industry standard.

Longer engine life, lower cost per hour

The patented 5-Step Cyclonic Debris Management System keeps harmful debris out of the engine, even under heavy-debris conditions, so your equipment stays productive for longer.
Built to stay in the fleet, not in the workshop

Extreme reliability components reduce leaks, repairs and unplanned downtime: a strengthened cylinder block with a third dowel, a commercial-grade liquid RTV sump gasket, impact-resistant die-cast aluminium valve covers, and Viton seals protecting the oil pump and PTO shaft.
Every shift starts on time

A commercial-grade solenoid shift starter delivers reliable, quick starts in heavy-duty applications from 0 °C to 48.9 °C, so crews don’t lose working hours to non-starts.
Fewer service stops, lower maintenance costs

The optional patented Oil Xtend™ System extends the maintenance interval to 250 hours, 2.5 times the industry-standard 100 hours. The interval covers oil, oil filter, fuel filter, air filter and spark plug, and the 6x larger filter housing and EZ Oil Drain Hose make each service quick and clean.

Patented Oil Xtend™ System (optional)

Maximize uptime and stay productive longer with the exclusive 250-hour maintenance system. Learn more about Oil Extend
Best-in-Class Debris Management

Patented 5-step cyclonic debris management system keeps harmful debris out of the engine, even under heavy-debris conditions.

Extreme Reliability Components

A strengthened cylinder block, impact-resistant aluminum valve covers, and premium commercial-grade seals provide rugged, leak-proof protection to keep equipment running in the toughest conditions.
Vanguard Service and Support

Dedicated support with a 3-Year warranty*, 12,000+ Briggs & Stratton trained dealers and 9,000 certified technicians to ensure rapid access to parts and service to maximize uptime.

Market	Requirements	Example applications
Commercial Turf	From turf cutters to lawn aerators, Vanguard delivers the power needed to keep turf professionals ahead.	Zero-Turn-Mower
Rental	Easy-starting power with maximum uptime. That's what fleets and customers desire. Vanguard power solutions feature industry-leading innovations, supported by a robust training program or top-tier service and maintenance.	Zero-Turn-Mower

Our various partners trusted in Vanguard power solutions and experienced a great succes.

You want to know how they did?

Discover Our Case Studies

Engine Type	V-Twin, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number	44K8
*Gross kW @ 3'600 rpm**	18,7
*Gross HP @ 3'600 rpm**	25,0
Displacement (cc)	724
Cylinder	Cast iron sleeve
Bore & Stroke (mm)	79,2 x 83,8
Fuel Tank Capacity (l)	NA
Oil Capacity (l)	1,98 (2,22 with Oil Xtend)
Compression Ratio	8: 5 : 1
Air Cleaner	Integrated Cyclonic Air Cleaner
Ignition System	Magnetron® Electronic Ignition
Lubrication System	Full Pressure Lubrication with Oil Filter
Dimensions L x W x H (mm)	490 x 447 x 399
Dry Weight (kg)	38,1
Optional	Oil Xtend System Alternator (16, 20) Oil Pressure Switch Straight Keyed Tapered Cranks (1" & 1-1/8" Diameters) Flexible Oil Drain Extension Exhaust Mounting Studs CARB Compliant Purge Ports Pre-filter
Warranty	Get more information about our warranties.
Operator Manuals	Download Operator Manuals
All Vanguard engine specifications are European Stage 5 and EPA Phase 3 emissions compliant.

* Power levels are stated gross kilowatts per SAE J1940 as rated by Briggs & Stratton.
** See operator's manual or dealer for complete warranty details.

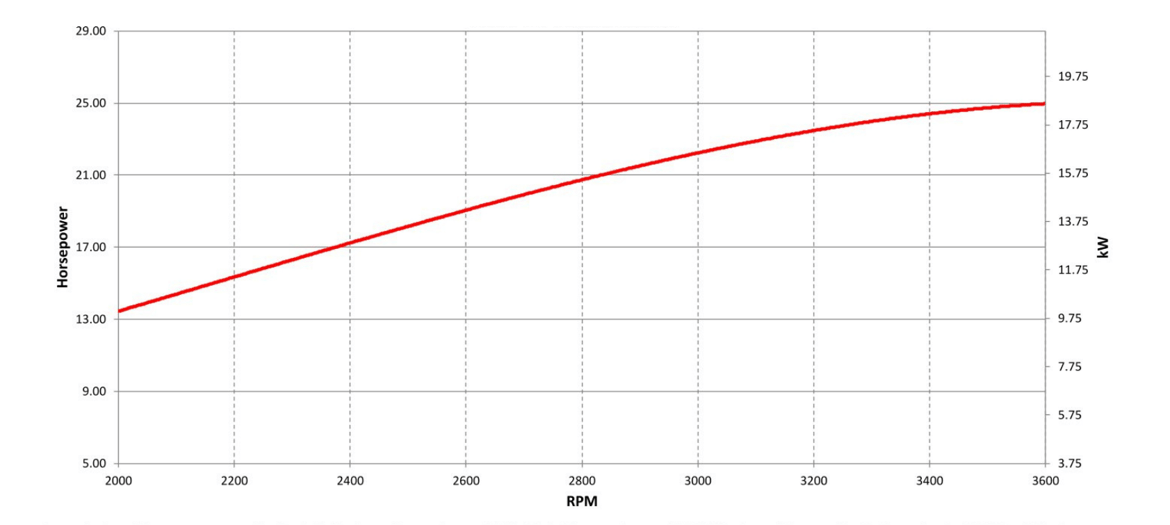

Power Curve

18,6 verticalshaft-engine

28 HP GROSS POWER*

* Power Ratings: The gross power rating for individual gasoline engine models is labelled in accordance with SAE (Society of Automotive Engineers) code J1940 Small Engine Power & Torque Rating Procedure, and is rated in accordance with SAE J1995. Torque values are derived at 2600 RPM for those engines with "rpm" called out on the label and 3060 for all others; horsepower values are derived at 3600 RPM. The gross power curves can be viewed at www.briggsandstratton.com. Net power values are taken with exhaust and air cleaner installed whereas gross power values are collected without these attachments. Actual gross engine power will be higher than net engine power and is affected by, among other things, ambient operating conditions and engine-to-engine variability. Given the wide array of products on which engines are placed, the gasoline engine may not develop the rated gross power when used in a given piece of power equipment. This difference is due to a variety of factors including, but not limited to.the variety of engine components (air cleaner, exhaust. charging, cooling, carburettor. fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this engine.
