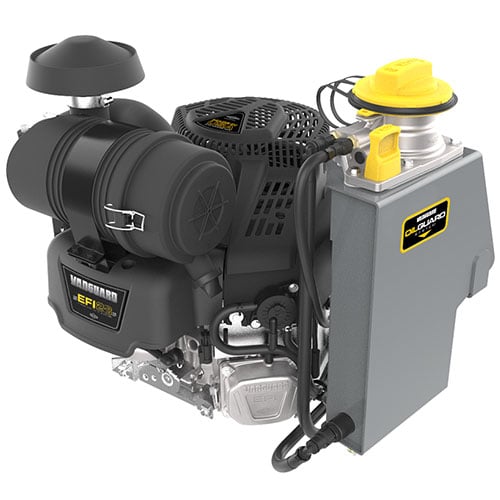

Oil-Guard_engine-with-tank

OIL GUARD™

LOWER TCO. INCREASED PRODUCTIVITY.

Vanguard® always lookes for ways to reduce downtime with the most significant maintenance item – engine oil. The result is the groundbreaking Oil Guard™ System.

The System, exclusive to Vanguard engines, extends oil maintenance intervals from 100 to 500 hours resulting in maximized equipment up-time and lower total cost of ownership.

This is what contractors asked for.

This is what Oil Guard™ delivers.

This is productivity defined.



REDUCED TOTAL COST OF OWNERSHIP
UP TO 60% OIL MAINTENANCE COST SAVINGS.*
oilguard-60percent

*Cost savings based on standard oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval. Per season, per unit on oil maintenance.
  • 500 Hour Oil Maintenance Intervals
    Intervals extended from 100 to 500 hours means less downtime and more time on the job.
  • Cleaner, Faster, Easier Oil Changes
    An easy fill cap and integrated oil filter make oil changes faster and simple.

LONGER ENGINE LIFE
oilguard-57liter2

5,7 L OIL CAPACITY.

With 187% more oil capacity than the standard Vanguard 810cc engine the cylinder block has significantly improved cooling which results in lower engine temperature leading to extended engine life.

LOWER ENGINE TEMPERATURE

Lower engine temperature allows for extended engine life.
Oil-Guard_lower-engine-temp_standard

Standard Sump System
Oil-Guard_lower-engine-temp_Oil-Guard

OilGuard System
with external oil reservoir

OPTIMIZED OIL FILTRATION FEATURES

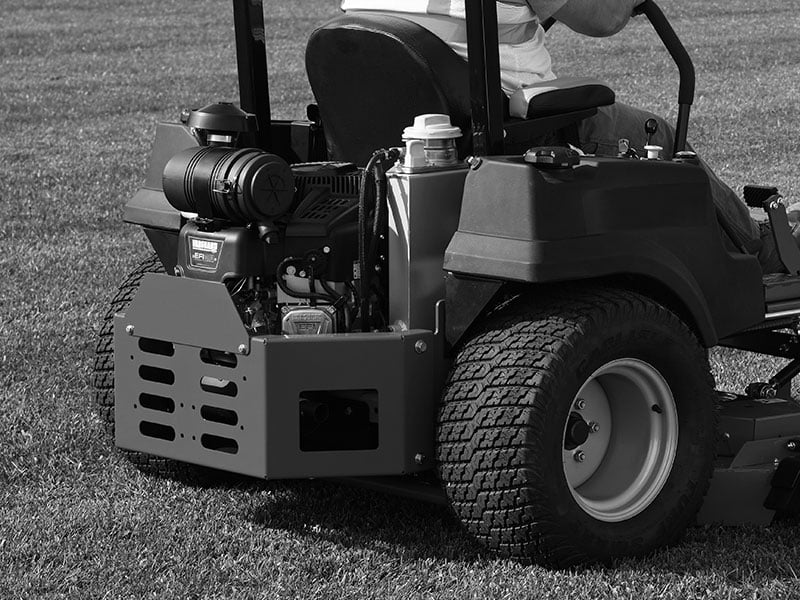

Oil-Guard_maintenance-cost-savings_800x600_

oilguard-80-percent

IMPROVED FILTRATION EFFICIENCY.

Versus traditional systems.

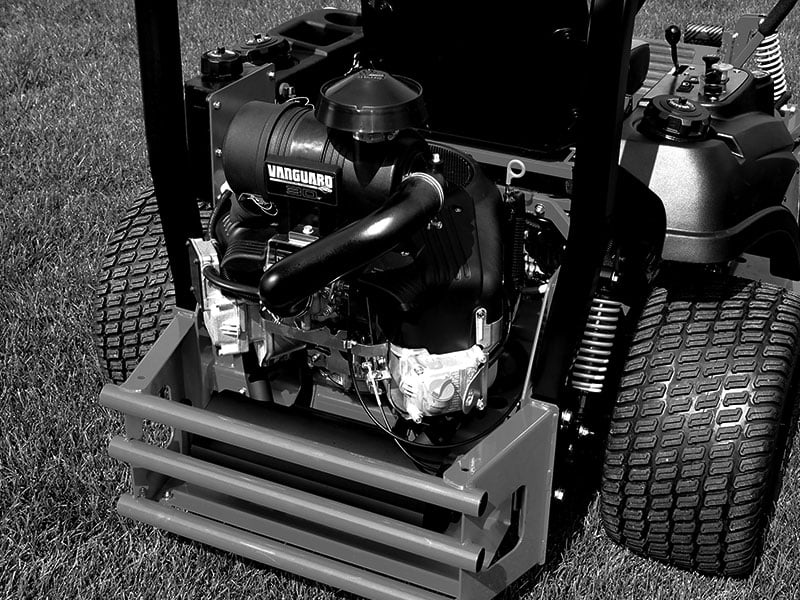

Oil-Guard_larger-filter_800x600_

oilguard-82-percent2

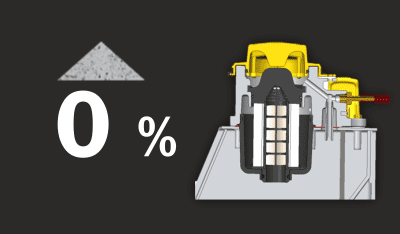

LARGER FILTER.

Versus traditional systems.

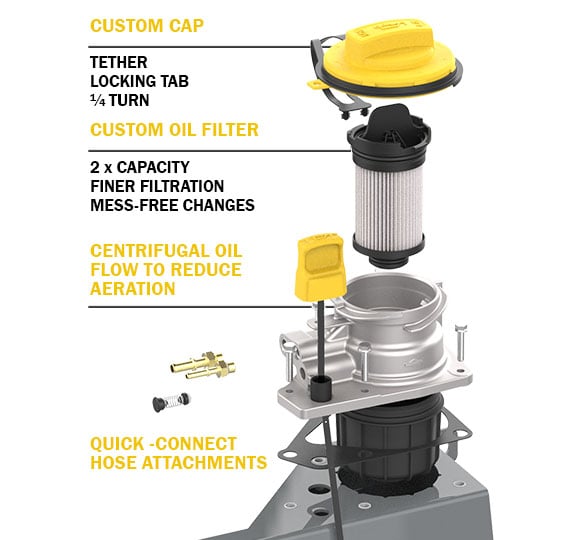

Oil-Guard_filtration_

FASTER & EASIER:

  • Easy Access Filter
    The Oil Guard™ system features tool-less access to service and replace the oil filter cartridge.
  • Quick Oil Drain
    The 4,7L oil tank and 1L internal engine oil can be drained in less than 5 minutes.
  • Wide Mouth Opening
    Fast and easy oil fill capability without any unnecessary oil spillage.
  • 5,7l Oil System Capacity
    The Oil Guard™ system contains 5,7 litre of oil between the tank and the engine.
  • 4,7l Welded Aluminium Tank
    The Oil Guard™ tank has a 4,7 litre capacity, which protects and cools the engine oil.

500 HOUR OIL CHANGE INTERVALS.

EXTREME UNMANNED OPERATION

You know what 45° means?...

PRODUCTIVITY!
oilguard-45degree

UPGRADE TO OIL GUARD™ WITH EFI

When powering your unmanned remote controlled equipment with a Vanguard EFI engine featuring the Oil Guard™ System, your versatility is extended. With EFI and Oil Guard™ your unmanned equipment can operate continuously on inclinations up to 45°*.

* Extreme inclination work is only recommended with unmanned remote controlled equipment.

FOR INCREASED APPLICATION DESIGN FLEXIBILITY.

Oil-Guard_tank-options4

Two Oil Guard™ tank options (Rear & Side mount)
OilGuard_Conceptboard_Innovation
OilGuard_Innovation_Logo

COMPATIBLE ENGINES

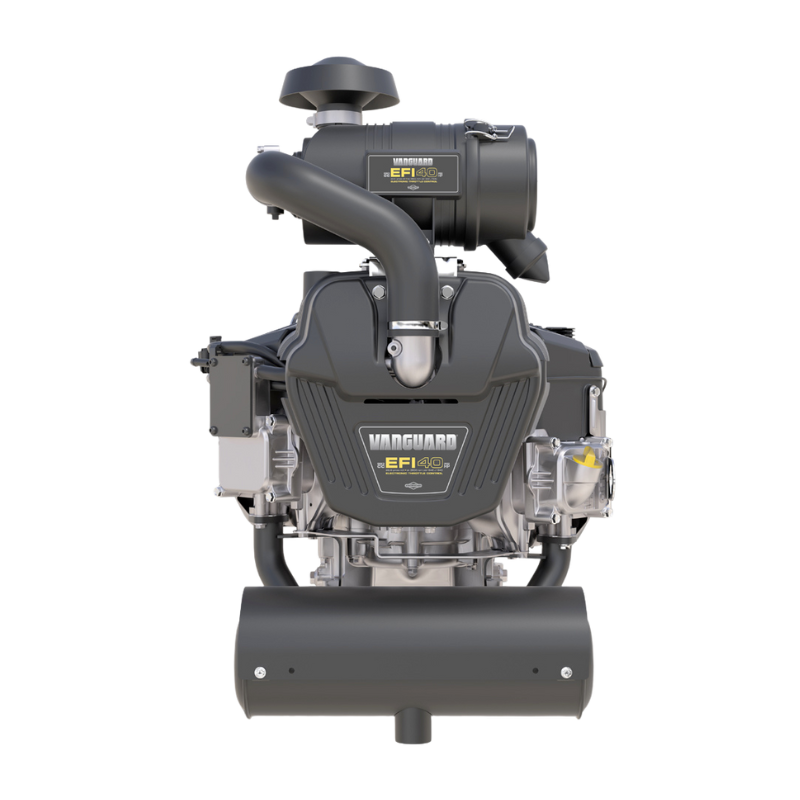

Vanguard-EFi-ETC-29,9-Gross-kW-vertical-shaft-engine
Vanguard 29,9 Gross kW* EFI/ETC

40 HP

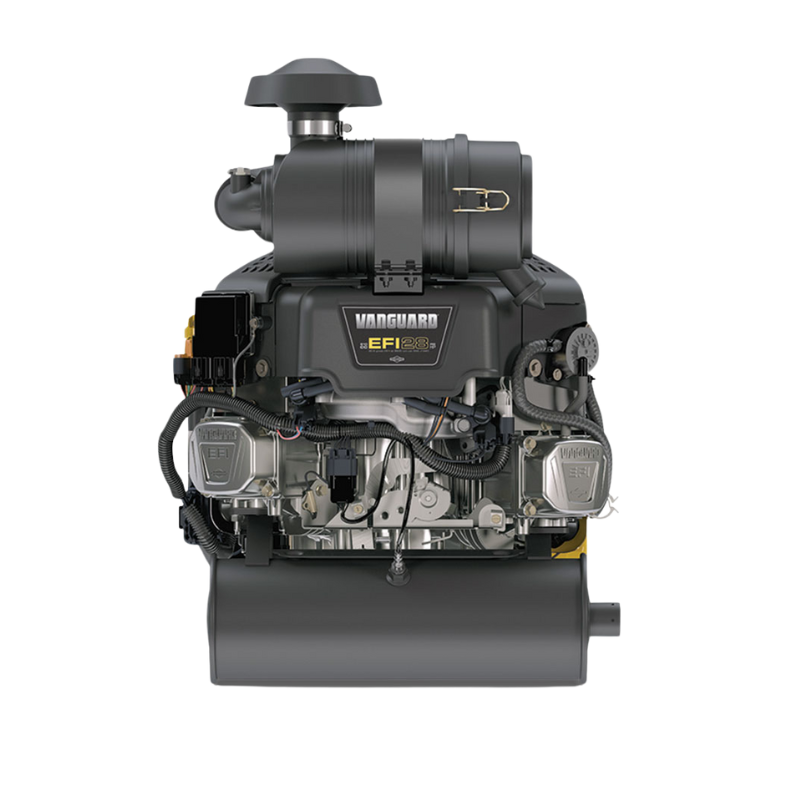

Vanguard-EFi-ETC-20,9-Gross-kW-vertical-shaft-engine
Vanguard 20,9 Gross kW* EFI/ETC

28 HP

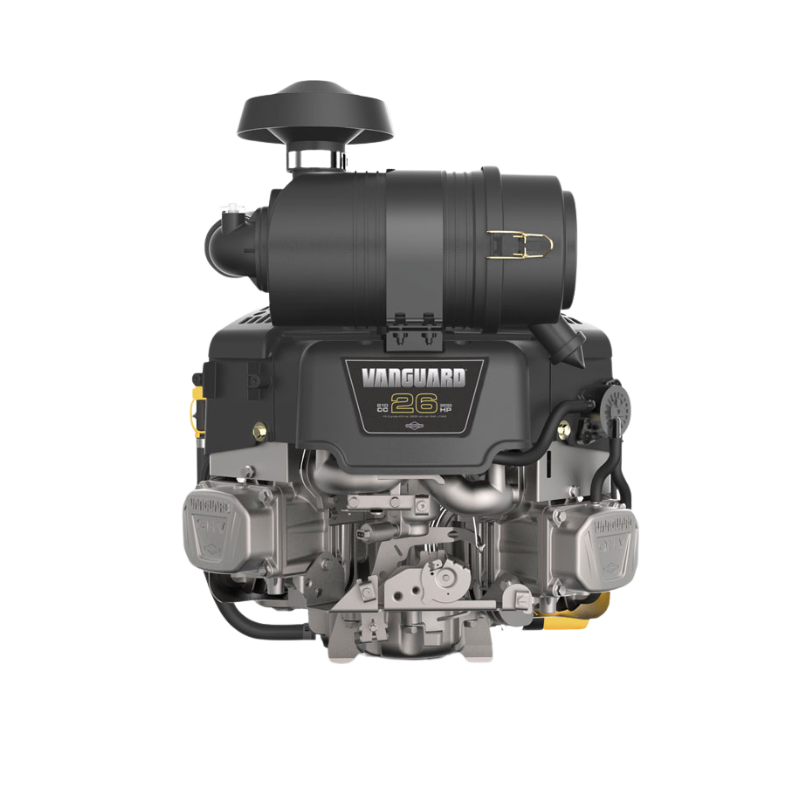

Vanguard-19,4-Gross-kW-vertical-shaft-engine
Vanguard 19,4 Gross kW* EFI/ETC

26 HP

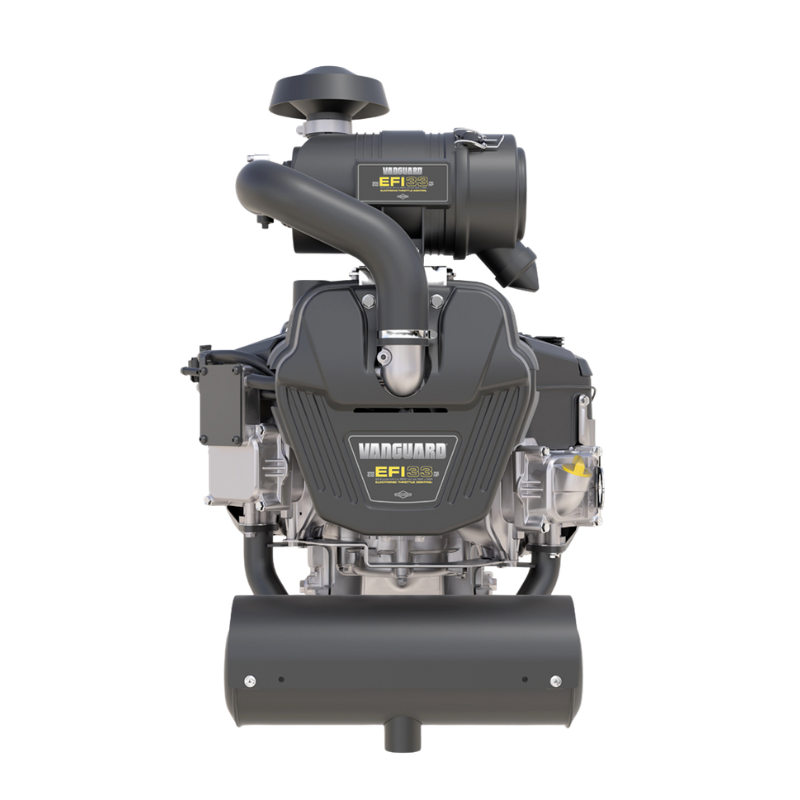

Vanguard-EFi-ETC-24,6-Gross-kW-vertical-shaft-engine
Vanguard 24,6 Gross kW* EFI/ETC

33 HP
