VANGUARD 24,6 Gross kW*



V-TWIN HORIZONTAL SHAFT COMMERCIAL ENGINE





 EXCEPTIONAL DURABILITY & RELIABILITY



 The Vanguard® 24,6 gross kW* horizontal shaft engine features a compact V-Twin design, delivering powerful performance for challenging tasks. With reduced vibrations and longer runtimes, it ensures smoother operation. Built for exceptional durability and reliability, this 33 HP engine excels in demanding conditions, making it ideal for use across various industries, including landscaping, agriculture, and construction.
  • Power for heavy-duty tasks

    The V-Twin design delivers higher power and torque, making it ideal for heavy-duty applications.

  • Smooth operator
    The V-Twin configuration provides better balance and reduced vibration, enhancing operator comfort and extending equipment life.

  • Proven versatility
    This engine is suitable for a wide range of applications, including commercial mowers, generators, and industrial equipment.


  • Durable design
    Built for demanding environments, this engine boosts a robust design without compromising on power or performance.
Vanguard-24,6-Gross-kW-horizontal-shaft-engine-main





FEATURES & BENEFITS
  • Maximum Durability

    Engine block designed to provide superior durability. Cast iron cylinder sleeve adds integrity and durability that withstands wear and abuse while providing improved oil control.

  •
  • V-Twin OHV Technology

    V-Twin engine design provides better balance and allows for increased power. OHV technology optimizes performance for a longer engine life and enhanced fuel economy.

  •
  • Superior Balance

    The dynamically balanced crankshaft, light weight piston and ring package minimize engine noise and vibration and improve high temperature durability.

  •
  • OEM Selectable speed option

    OEMs can recalibrate the engine ECU to achieve specific speed settings using either analog signals (0-5V) or CAN (Controller Area Network) controls.*



  •
  • Optimized Fuel Delivery

    Reliable starting and superior performance.



horizontal-shaft_big-block_optimized-fuel-delivery
horizontal-shaft_small-block_cyclonic-air-cleaner
  •
  • Cyclonic Air Cleaner

    Advanced protection against airborne debris entering the engine.

  •
  • Improved Sound Quality

    Engineered resin blower housing and phase modulated flywheel fan for lower noise level and improved sound quality.

  •
  • Extended Engine Life

    Maximum lubrication and critical engine components protection. The spin-on filter keeps oil cleaner for an extended engine life. Dual ball bearings provides added durability and extends engine life.

  •
  • Smooth Easy Starting

    The mechanical compression release eases the starter to crank the engine. Magnetron electronic ignition system ensures quick dependable starts with no maintenance required. The result is a smooth easier starting and longer starter life. Optional rewind start and solenoid shift starter.



  •
  • High Efficiency Head Design

    Angled ports optimizes tumble and mixture preparation for improved efficiency, smoother idle, lower emissions and more power.



* For more information, please contact the Briggs & Stratton EMEA Sales representatives



POPULAR MARKETS & APPLICATIONS

Vanguard Pointer grey 1200x50
Market Requirements Example applications

Rental
Rental-market-rectangle

Easy-starting and maximum uptime—just what fleets need. Vanguard’s power solutions are backed by a strong training program for superior service and maintenance.

Light Towers

Industrial & Construction
Industrial-Construction-market-rectangle

From heavy-duty zero-turn mowers to commercial-grade blowers, Vanguard delivers the easy-to-maintain power needed to keep turf professionals ahead.

Road Marking Machine

Fire & Rescue

Reliable. Powerful. Steady. When every second counts, fire & rescue professionals choose Vanguard engines and battery power again and again.

Fire Pumps, Ventilation Fans
Case-studies-engines-animated-gif

Our various partners trusted in Vanguard power solutions and experienced a great succes.

You want to know how they did?

Discover Our Case Studies

 SPECIFICATIONS

Vanguard Pointer grey 1200x50
Eingine Type V-Twin, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number 6114
Gross kW* @ 3'600 rpm 24,6
Gross HP* @ 3'600 rpm 33,0
Displacement (cc) 993
Cylinder Cast iron sleeve
Bore & Stroke (mm) 85,5 x 86,5
Fuel Tank Capacity (l) NA
Oil Capacity (l) 2,3
Compression Ratio 8.2 : 1
Air Cleaner Five-Inch Cyclonic Air Cleaner
Ignition System Magnetron® Electronic Ignition
Lubrication System Full Pressure Lubrication with Spin-On Oil Filter
Dimensions L x W x H (mm) 379 x 496 x 725
Dry Weight (kg)  56,8
Optional

  • Oil Pressure Switch

  • Flywheel Stub Shaft

  • Low Profile Air Cleaner

  • Integrated Fuel Tank

  • Alternators (20, 20-50 amp)

  • Key Switch

  • CDI Ignition with 4750 rpm Rev Limiter

  • Straight Keyed (1" & 1-1/8" Diameters) Tapered (SAE 2.25"/12" & 10:1)
Warranty

3-year-warranty-badge-200x200

Additional 1 year warranty for registered engines. Get more information about our warranties.
Operator Manuals

Vanguard-Manuals-icon-200x200

Download Operator Manuals
All Vanguard engine specifications are European Stage 5 and EPA Phase 3 emissions compliant.

* Power levels are stated gross kilowatts per SAE J1940 as rated by Briggs & Stratton.

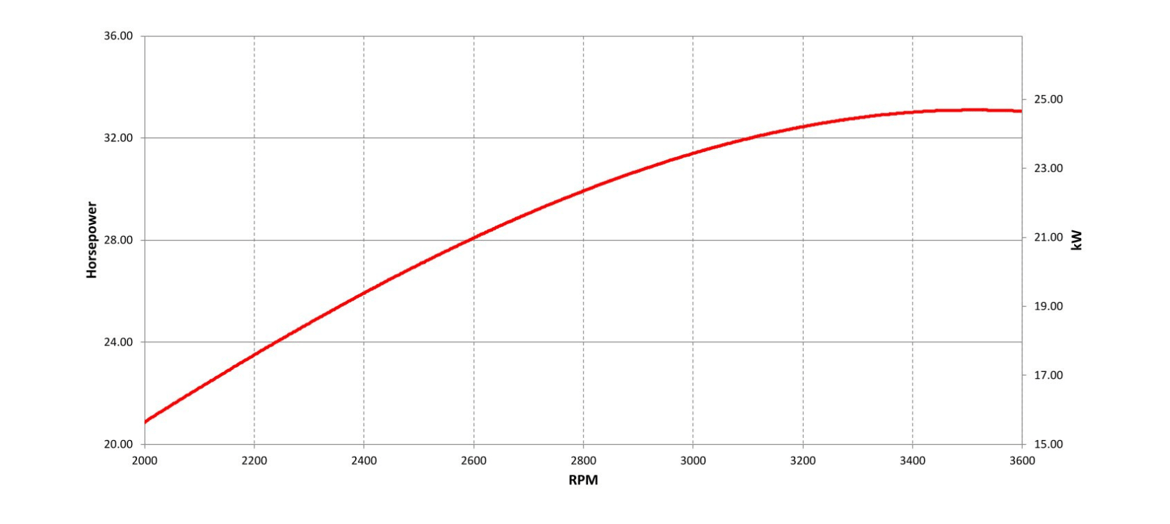

Power Curve

6295Y Vanguard 24,6 Gross kW Horizontal Shaft engine



33 HP GROSS POWER*

* Power Ratings: The gross power rating for individual gasoline engine models is labelled in accordance with SAE (Society of Automotive Engineers) code J1940 Small Engine Power & Torque Rating Procedure, and is rated in accordance with SAE J1995. Torque values are derived at 2600 RPM for those engines with "rpm" called out on the label and 3060 for all others; horsepower values are derived at 3600 RPM. The gross power curves can be viewed at www.briggsandstratton.com. Net power values are taken with exhaust and air cleaner installed whereas gross power values are collected without these attachments. Actual gross engine power will be higher than net engine power and is affected by, among other things, ambient operating conditions and engine-to-engine variability. Given the wide array of products on which engines are placed, the gasoline engine may not develop the rated gross power when used in a given piece of power equipment. This difference is due to a variety of factors including, but not limited to.the variety of engine components (air cleaner, exhaust. charging, cooling, carburettor. fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this engine.
