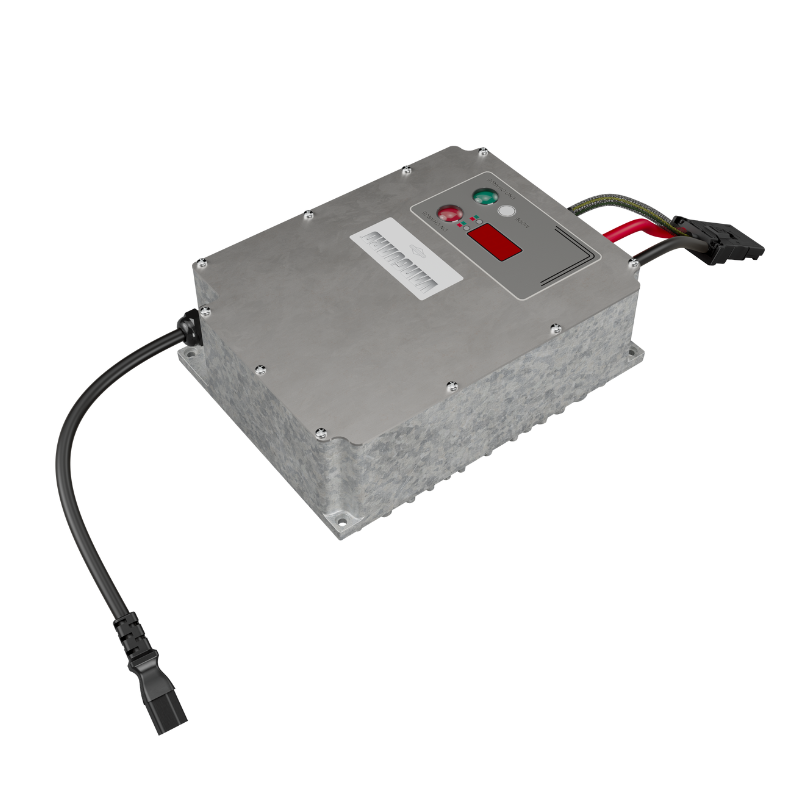

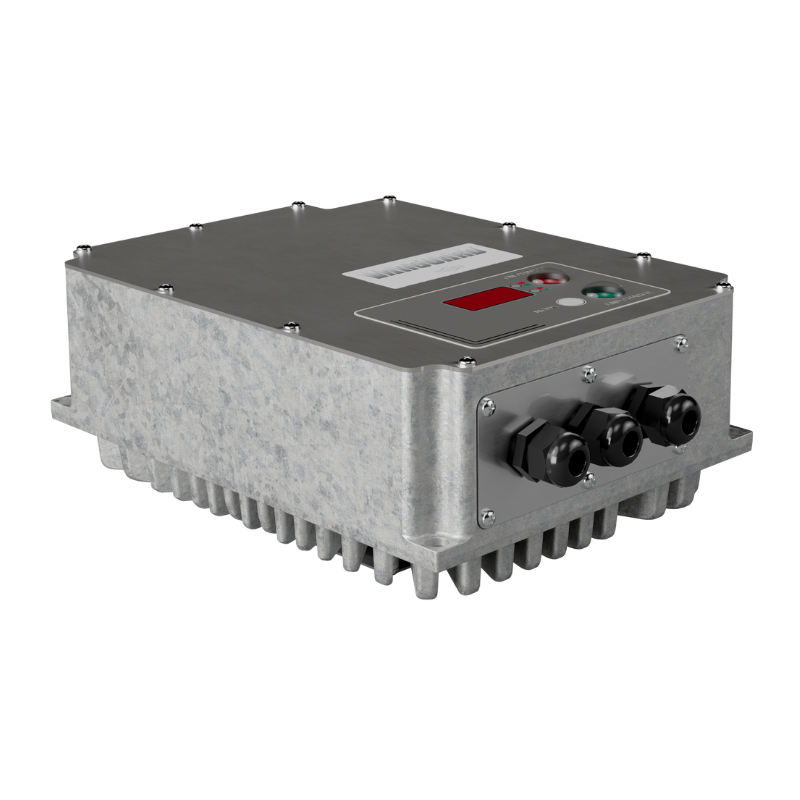

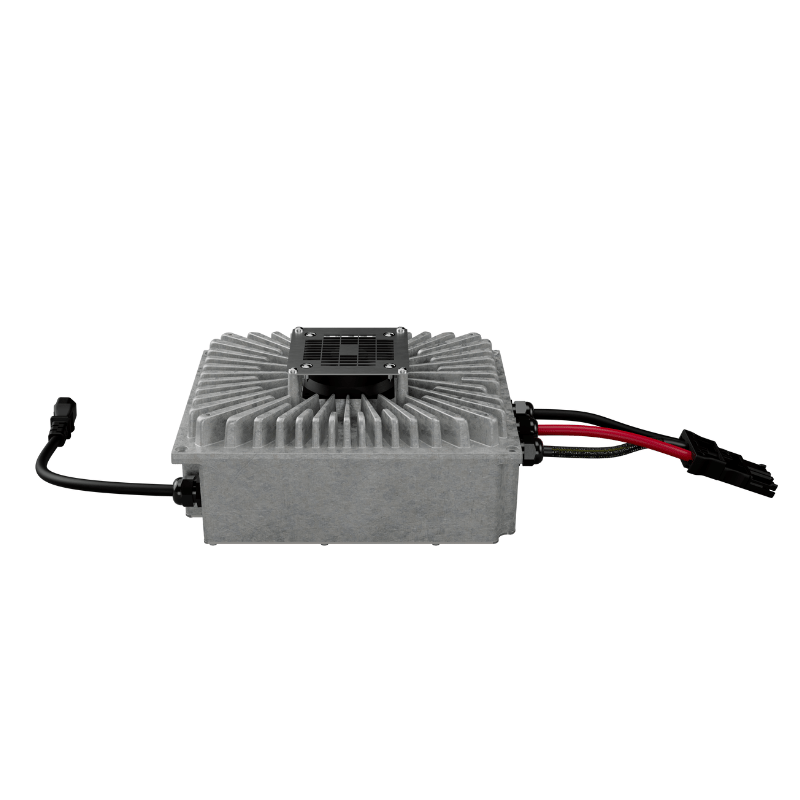

VANGUARD™ 3000W CHARGER

LITHIUM-ION BATTERY CHARGER

The Vanguard™ 3000W Charger stands as the most powerful charger in the lineup, designed for optimal charging of Vanguard™ fixed and swappable battery packs. This robust single-phase charging system effortlessly delivers electrical current from a standard 230V wall outlet directly to the battery. With the capability to connect two chargers in parallel, it significantly reduces charging times. LED indicators provide clear updates on charging progress, ensuring efficient power management and peak battery performance.

Works seamlessly with all Vanguard battery packs.
Equipped with Bluetooth capabilities for monitoring AC input and DC output specifications.
Fast recharge times:

Fi3.5 (24V 3,5kWh): 4,0 hours

Fi3.5 (48V 3,5kWh): 2,0 hours

Fi5.0 (48V 5,0kWh): 2,5 hours

Fi7.0 (48V 7,0kWh): 3,0 hours

Convenient Charging Options

Ability to plug the charger into a standard 120-volt wall outlet or 240V outlet to seamlessly deliver electric current to the Vanguard battery.
Powerful and Safe Charging

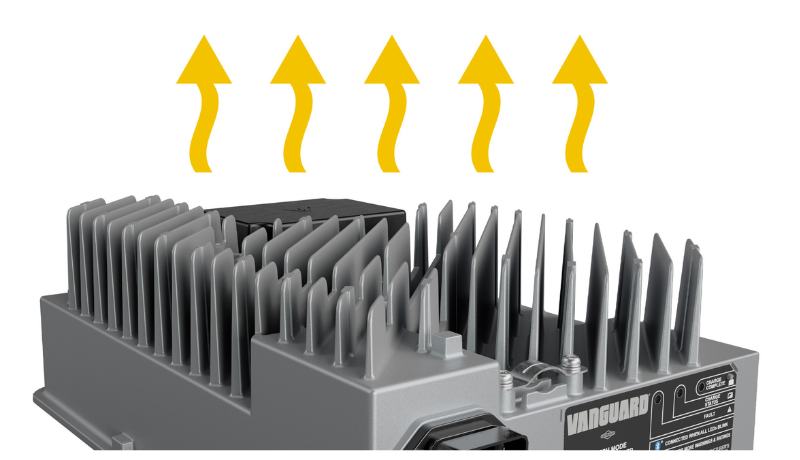

Rugged design made to be mounted on-board or off-board. The Vanguard charger is built with cooling fins that dissipate heat. Active cooling allows you to both safely and effectively maximize the charging rate to your Vanguard batteries.

Clear Charging Communication

This battery charger is designed with LED lights to clearly illuminate the battery’s charging status – ON charge, END charge.
Supports Many Applications

This charger gives Vanguard batteries the power it needs to support applications in the recreation, floor care, industrial, and outdoor power equipment markets.

Charger Type	Fi Series 3000W single-phase charging system
Model Number	80114089
Charging Rate (A / kW)	60 / 3
Enclosure Rating	IP55
Voltage Range, Rated (AC Input)	100-240 Vac
Voltage Range, Operating (AC Input)	90-264 VAC (reduced output when powered by 120 VAC)
Frequency, Rated (AC Input)	50-60 Hz
Frequency, Operating (AC Input)	N/A
Phase (AC Input)	Single-phase
Current, Maximum (AC Input)	16 A (at 220 VAC)
Efficiency (AC Input)	≥90%
Protection (AC Input)	Current limit, surge, transient, under voltage, over voltage
Power (DC Output)	3000W
Top Voltage (V)	48 VDC
Current Maximum (DC Output)	60 A
Voltage, Maximum (DC Output)	58.8 VDC
Protection (DC Output)	Current limit, short circuit, reverse polarity, under voltage, over voltage, wrong battery voltage
Operating Temperature Range	-20°C to 50°C
Storage Temperature Range	-40°C to 85°C
Dimensions L x W x H (mm)	323,2 x 220 x 140
Warranty	3 year commercial limited warranty for all lithium-ion battery chargers. Get more information about our warranties.
Operator Manuals	Download Operator Manuals
