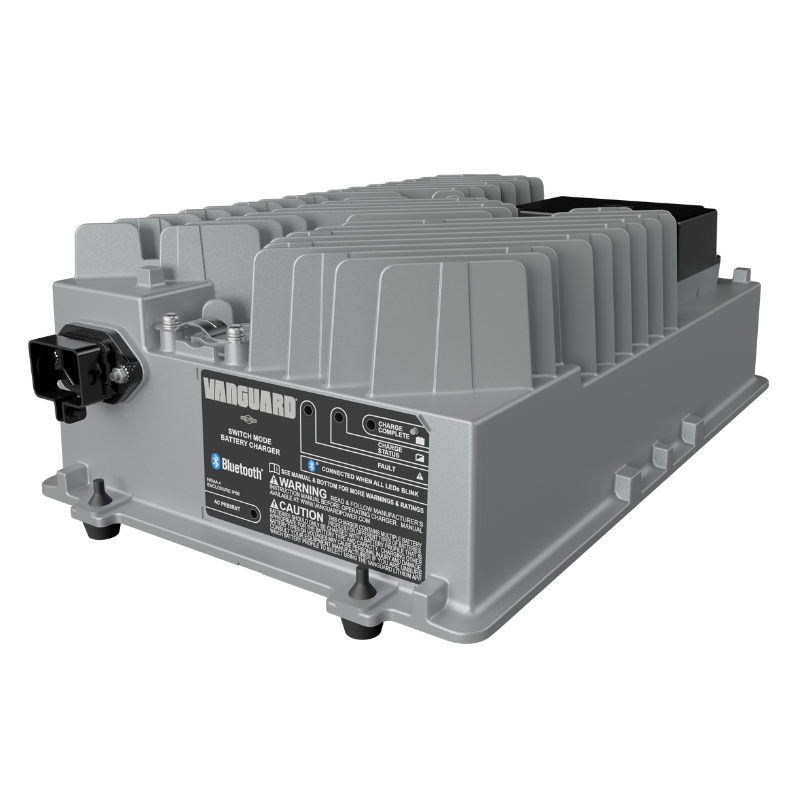

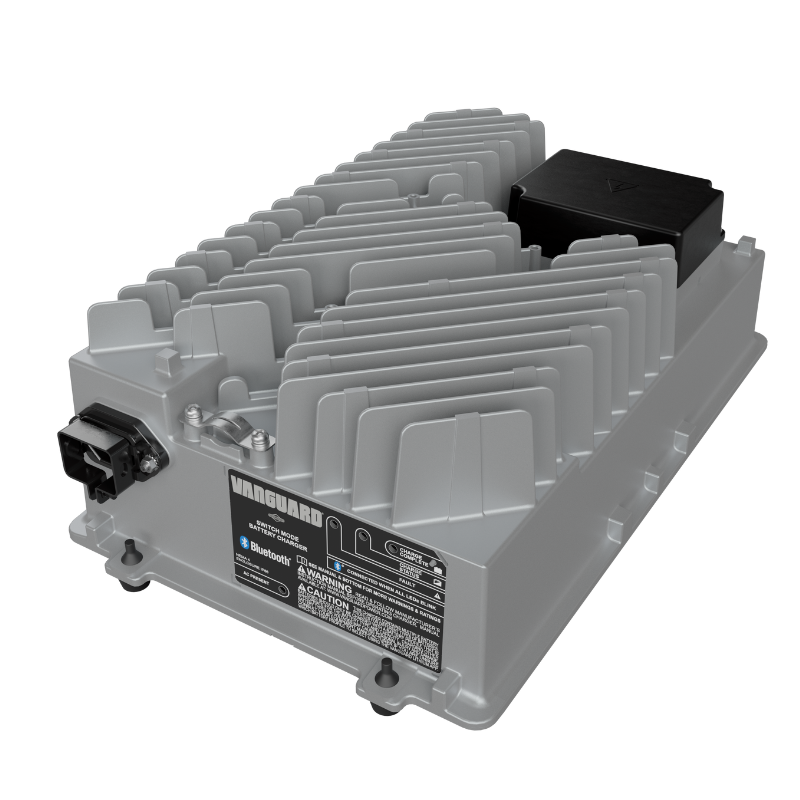

VANGUARD™ 1425W CHARGER

LITHIUM-ION BATTERY CHARGER

The Vanguard™ 1425W Charger is the perfect solution for charging Vanguard™ swappable battery packs. Featuring a fan-less passive cooling system, it offers safe and quiet operation. With Bluetooth connectivity, you can easily monitor charging status and diagnostics in real-time using the Vanguard™ Lithium app. This charger plugs into standard wall outlets and supports parallel charging to reduce charging times. LED indicators provide clear updates on charging status, ensuring efficient power management and optimized battery performance. Ideal for reliable and fast charging, the Vanguard™ 1425W Charger is a must-have for all your power needs.

Works seamlessly with the 48V 1,5kWh* commercial battery pack.
Equipped with Bluetooth capabilities for monitoring AC input and DC output specifications.
Fast recharge times:

Si1.5 (48V 1,5kWh): 1,25 hours

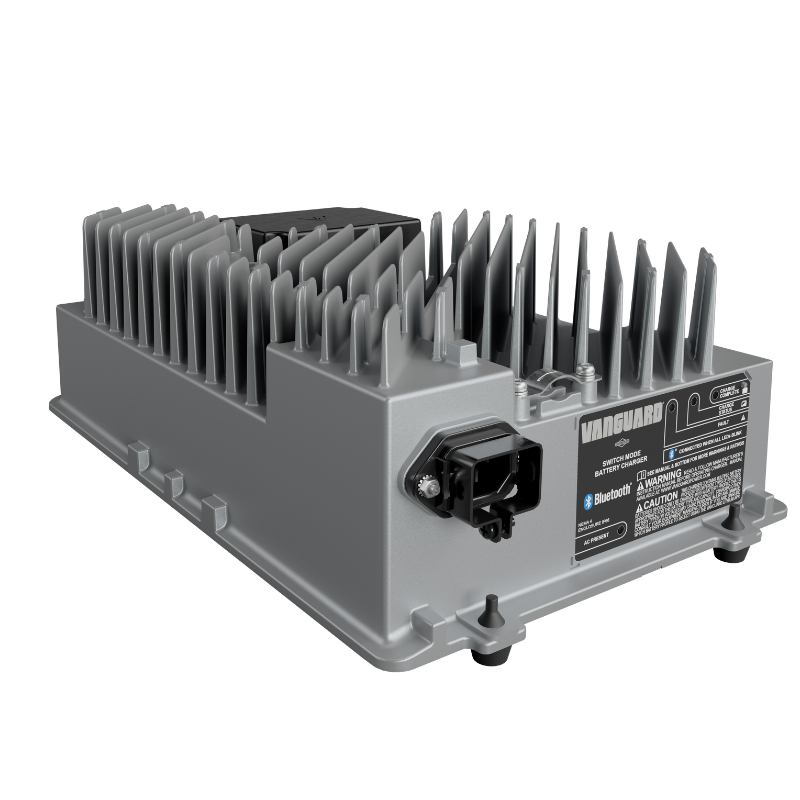

Vanguard-1425W-charger-front-l-transparent-2

Vanguard Lithium App

The Vanguard Lithium app connects to your charger with Bluetooth communication and is readily available in the app store.
Accelerated Charging

Faster recharge time for the Vanguard Battery product lineup.
Designed for Your Safety

Built with cooling fins, our chargers dissipate heat. Passive cooling allows you to both safely and effectively charge your batteries.

Powerful And Convenient

The most powerful fan-less on/off-board charger that works on a standard wall outlet.
Clear Communication

Each battery charger is equipped with four LED lights to communicate information on the battery, charger, and Bluetooth connection.
Supports Many Applications

This charger gives Vanguard batteries the power it needs to support applications in the recreation, floor care, industrial, and outdoor power equipment markets.

Charger Type	Si Series 1425W single-phase charging system with Bluetooth® monitoring
Model Number	80126739
Charging Rate (A / kW)	30 / 1,425
Enclosure Rating	IP66, NEMA 4
Voltage Range, Rated (AC Input)	100-240 Vac
Voltage Range, Operating (AC Input)	80-265 VAC (< 108 Vac: reduced power)
Frequency, Rated (AC Input)	50-60 Hz
Frequency, Operating (AC Input)	45-65 Hz
Phase (AC Input)	Single-phase
Current, Maximum (AC Input)	< 15 A
Efficiency (AC Input)	< 91% peak
Protection (AC Input)	Current limit, surge, transient, under voltage, over voltage
Power (DC Output)	1425W
Top Voltage (V)	48 VDC
Current Maximum (DC Output)	30 A
Voltage, Maximum (DC Output)	72 Vdc
Protection (DC Output)	Current limit, short circuit, reverse polarity, under voltage, over voltage, wrong battery voltage
Voltage, Min Start-up (DC Output)	10 Vdc
Operating Temperature Range	-25°C to 60°C
Storage Temperature Range	-40°C to 85°C
Dimensions L x W x H (mm)	341 x 208 x 115
Warranty	4 year commercial limited warranty for all lithium-ion battery chargers. Get more information about our warranties.
Operator Manuals	Download Operator Manuals
