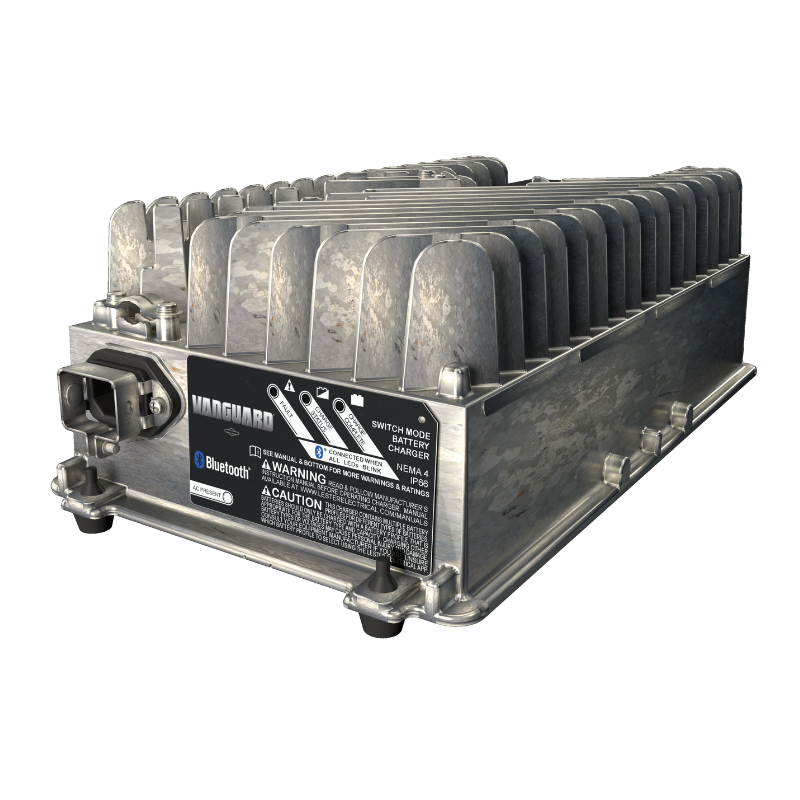

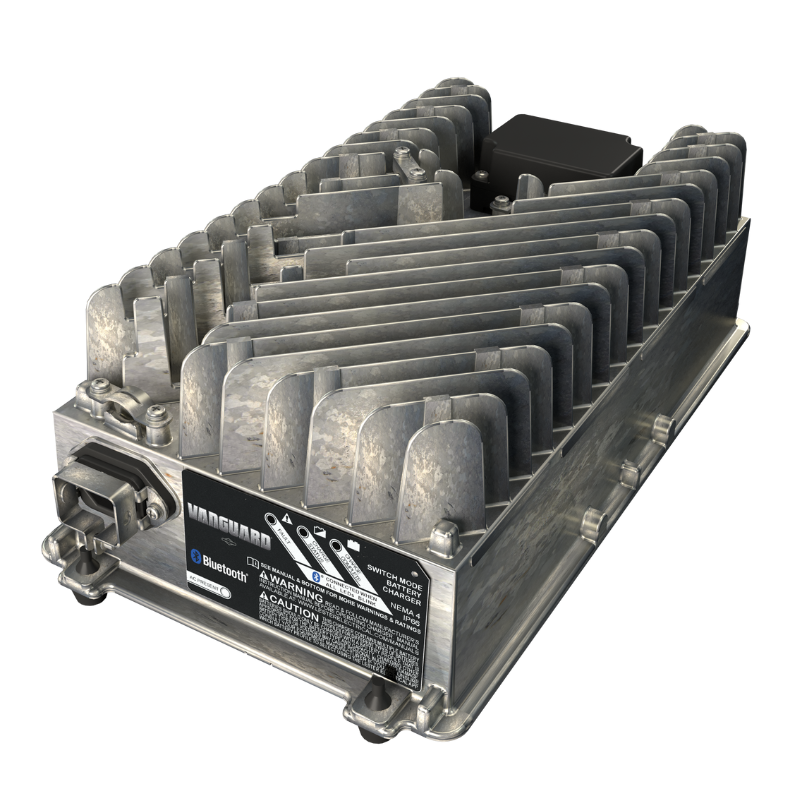

VANGUARD™ 1050W CHARGER

LITHIUM-ION BATTERY CHARGER



 The Vanguard™ 1050W charger offers efficient and reliable charging for Vanguard battery packs. Its passive cooling system with built-in fins ensures safe operation without a fan, while Bluetooth connectivity allows real-time monitoring via the Vanguard Lithium app. The charger supports parallel connection to reduce charging times and features LED indicators for clear status updates. Designed for convenience, it easily plugs into standard wall outlets and is suitable for both on-board and off-board mounting. This charger optimizes battery performance and longevity, making it an essential tool for dependable power management.

  • Bluetooth capabilities for monitoring AC input and DC output specifications.

  • Features advanced charge and termination algorithms, optimizing daily battery capacity as well as overall battery life.

  • Fast recharge times:

    Fi3.5 (24V 3,5kWh):    4,0 hours
    Fi3.5 (48V 3,5kWh):    6,0 hours
    Fi5.0 (48V 5,0kWh):    5,5 hours
    Fi7.0 (48V 7,0kWh):     8,0 hours

  • Two chargers can be connected in parallel to reduce charging time.

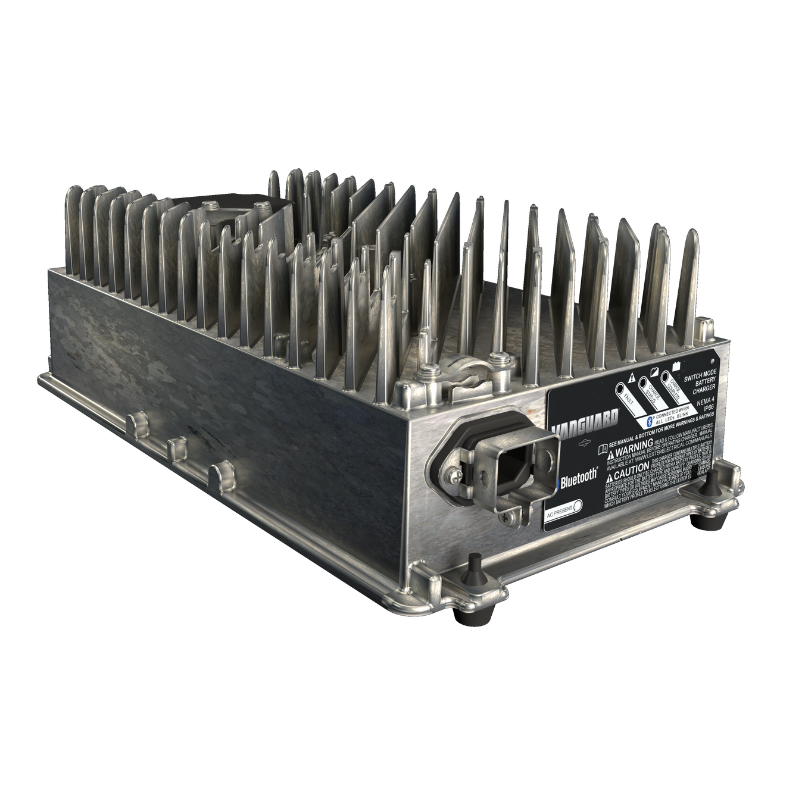

Vanguard-1050W- charger-front-l

FEATURES & BENEFITS

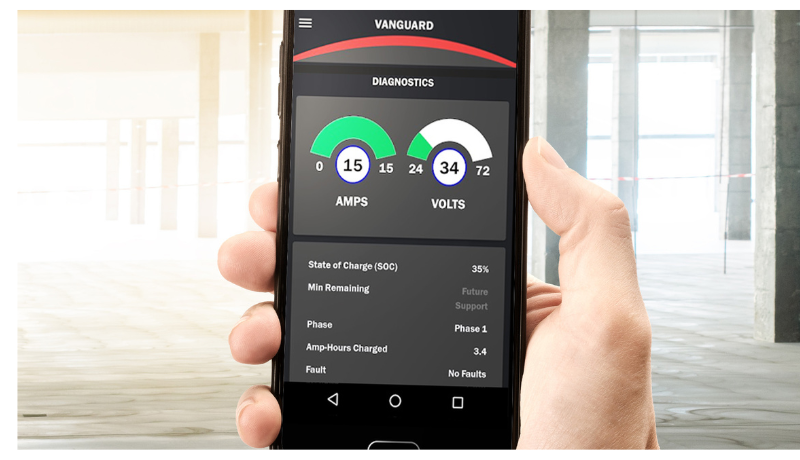

  • Vanguard Lithium App

    The Vanguard Lithium app connects to your charger with Bluetooth communication and is readily available in the app store.

  •
  • Access Your System's Data

    View the real-time charge cycle status and other diagnostic information on multiple batteries at once. Create profiles for each battery.

  •
  • Designed for Your Safety

    Built with cooling fins, our chargers dissipate heat. Passive cooling allows you to both safely and effectively charge your batteries.



Charger-feature-clear-communication-led-lights
Charger-feature-access-data-app
  •
  • Powerful

    A powerful fan-less charger that can be mounted on-board or off-board.

  •

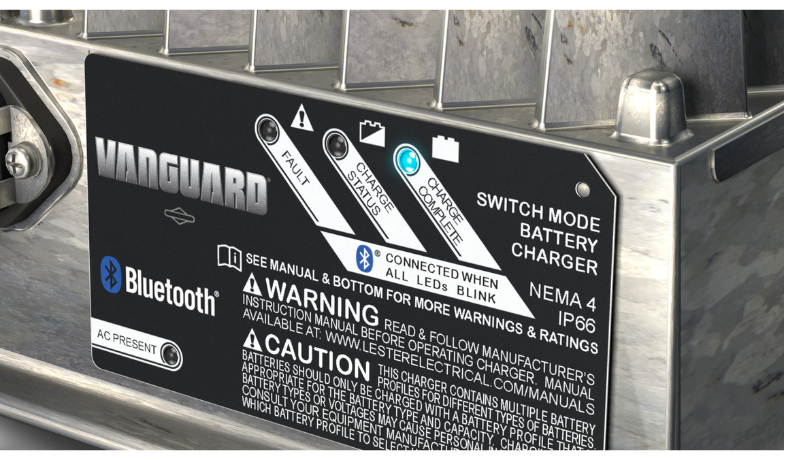

  • Clear Communication

    Each battery charger is equipped with four LED lights to communicate information on the battery, charger, and Bluetooth connection.

  •
  • Convenient

    Plug the charger into a standard wall outlet to seamlessly deliver electric current to the Vanguard battery.





SPECIFICATIONS

Vanguard Pointer grey 1200x50
 Charger Type   1050W single-phase charging system with Bluetooth® monitoring
Model Number  80086414
Charging Rate (A / kW)  25 / 1,05
Enclosure Rating  IP66, NEMA 4
Voltage Range, Rated (AC Input)  100-240 Vac
 Voltage Range, Operating (AC Input)  85-265 VAC (< 108 Vac: reduced power)
Frequency, Rated (AC Input) 50-60 Hz
Frequency, Operating (AC Input) 45-65 Hz
Phase (AC Input) Single-phase
Current, Maximum (AC Input) < 12 A
Efficiency (AC Input) < 91% peak, CEC test procedure, 115 Vac, AC and DC losses included
Protection (AC Input) Current limit, surge, transient, under voltage, over voltage
Power (DC Output) 1050W
 Top Voltage (V)   36 Vdc, 54 Vdc, 72 Vdc (DC Output)
 Current Maximum (DC Output)   25 A, 25 A, 22 A
 Protection (DC Output)  Current limit, short circuit, reverse polarity, under voltage, over voltage, wrong battery voltage
 Voltage, Min Start-up (DC Output)  10 Vdc
Operating Temperature Range                  -25°C to 60°C
Storage Temperature Range -40°C to 85°C
Dimensions L x W x H (mm) 336 x 182 x 113
Warranty

Vanguard-4-year-battery-badge-200x200

 4 year commercial limited warranty for all lithium-ion battery chargers. Get more information about our warranties.
