RETIRED ENGINES
ONGOING SUPPORT FOR OUR FORMER MODELS
These engine models are no longer in production, but we know that many of them are still operating in the field. If you require technical information, service support, or assistance in finding a suitable replacement engine, you will find all the relevant details here.

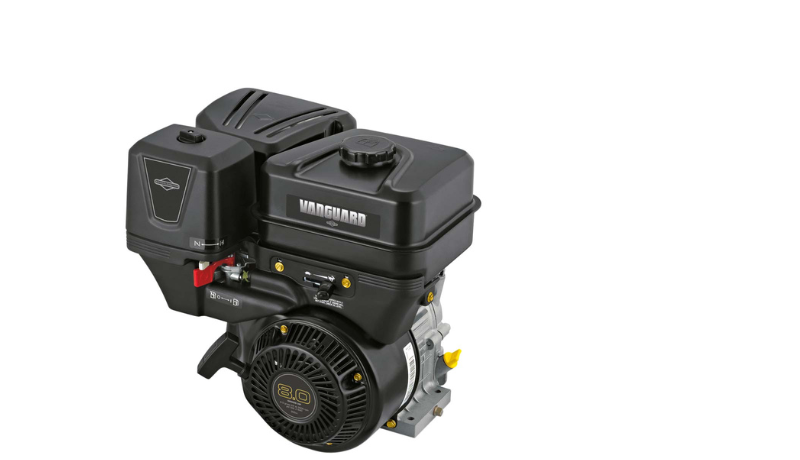

Vanguard® 6,0 Gross kW*
 Single-cylinder, 4-stroke, air-cooled, OHV |
| Model number: 19L1 |
| Gross HP* @ 3'600 rpm: 8 HP |
| Displacement: 305 (cc) |
Vanguard® 7,5 Gross kW*
| Single-cylinder, 4-stroke, air-cooled, OHV |
| Model number: 19L2 |
| Gross HP* @ 3’600 rpm: 10 HP |
| Displacement: 305 (cc) |

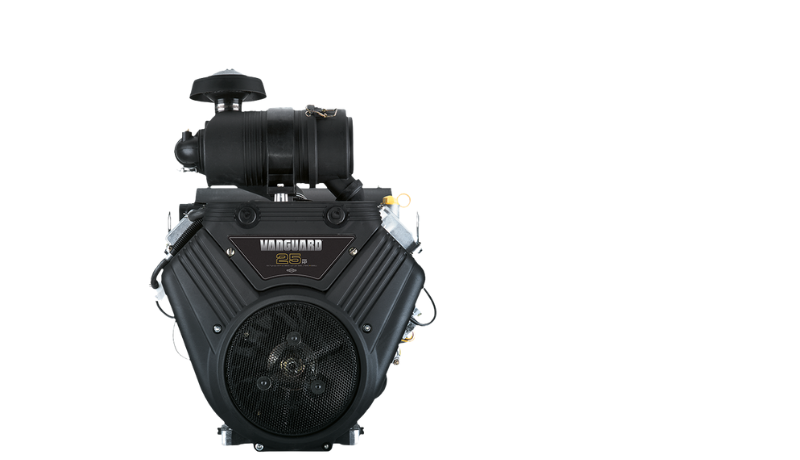

Vanguard® 18,7 Gross kW*
| V-Twin, 4-stroke, air-cooled, OHV |
| Model number: 5404 |
| Gross HP* @ 3’600 rpm: 25 HP |
| Displacement: 896 (cc) |

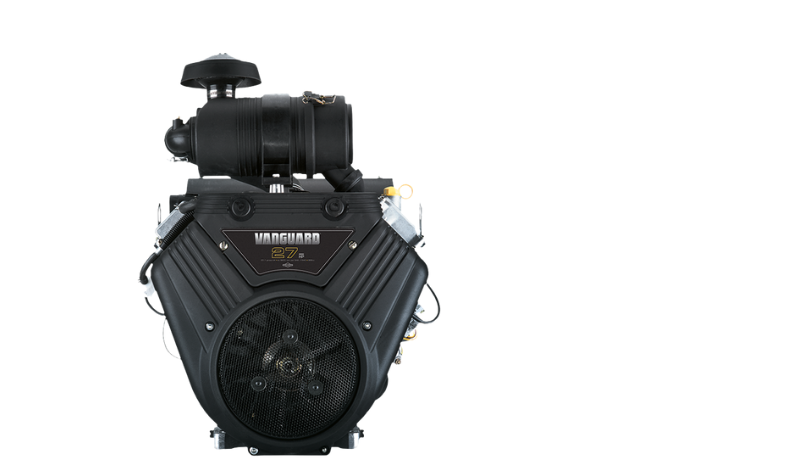

Vanguard® 20,1 Gross kW*
| V-Twin, 4-stroke, air-cooled, OHV |
| Model number: 5414 |
| Gross HP* @ 3’600 rpm: 27 HP |
| Displacement: 896 (cc) |
Vanguard® 21,6 Gross kW*
| V-Twin, 4-stroke, air-cooled, OHV |
| Model number: 5424 |
| Gross HP* @ 3’600 rpm: 29 HP |
| Displacement: 896 (cc) |

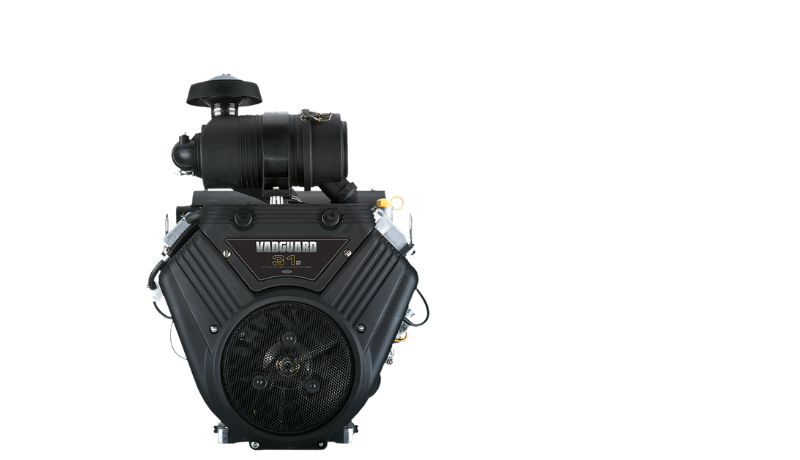

Vanguard® 23,1 Gross kW*
| V-Twin, 4-stroke, air-cooled, OHV |
| Model number: 5434 |
| Gross HP* @ 3’600 rpm: 31 HP |
| Displacement: 896 (cc) |

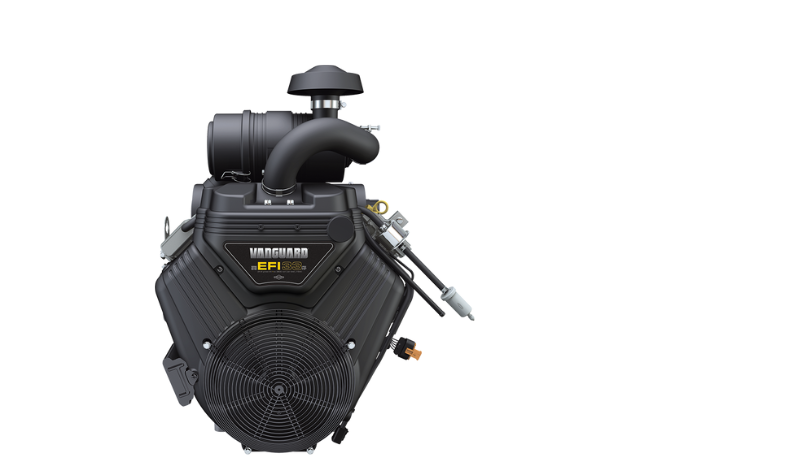

Vanguard® 24,6 Gross kW*
| V-Twin, 4-stroke, air-cooled, OHV |
| Model number: 54E1 |
| Gross HP* @ 3’600 rpm: 33 HP |
| Displacement: 896 (cc) |

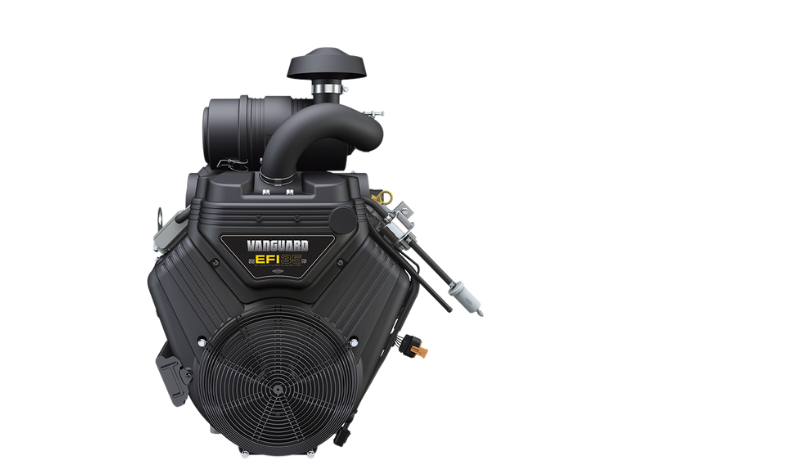

Vanguard® 26,1 Gross kW* EFI
| V-Twin, 4-stroke, air-cooled, OHV |
| Model number: 61E1 |
| Gross HP* @ 3’600 rpm: 35 HP |
| Displacement: 993 (cc) |

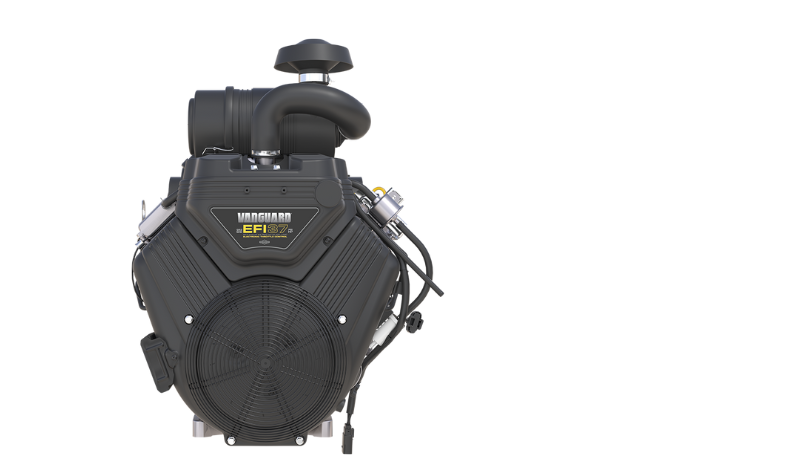

Vanguard® 27,6 Gross kW* EFI
| V-Twin, 4-stroke, air-cooled, OHV |
| Model number: 61E3 |
| Gross HP* @ 3’600 rpm: 37 HP |
| Displacement: 993 (cc) |
* All power levels are stated gross kW at 3'600 rpm per SAE J1940.
