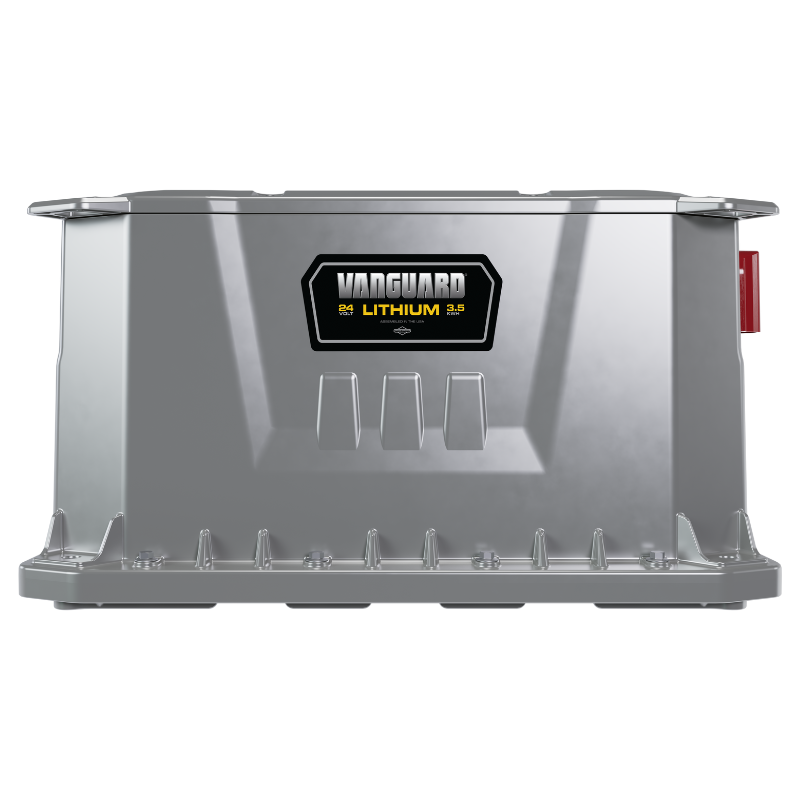

24V 3,5kWh^* COMMERCIAL BATTERY

FIXED BATTERY PACK (Fi3.5)

SUPERIOR ALTERNATIVE TO LEAD-ACID

The Vanguard™ 24V 3,5 kWh* fixed commercial battery (Fi3.5) expands Vanguard’s battery portfolio by offering a lower voltage option tailored for OEMs. Designed as an ideal replacement for traditional 24V lead-acid batteries, the 24V Fi3.5 is perfect for applications in the lift access, cleaning, and construction industries. This durable and reliable battery delivers superior performance across various demanding environments.

Durable

Multiple protective features tested to withstand harsh conditions, including extreme temperatures, impact, vibration and dirt.

Intelligent & Safe

The integrated Battery Management System monitors temperatures and voltages of each cell bank to ensure sage operations and maximum safety.

Efficient maintenance

The unique design of the Cell Module Assembly (CMA) enables precise monitoring of battery performance metrics and is easily serviceable.

Flexibility

Single CANbus J1939 communication protocol allows easy integration into any application.

_{* Total energy measured using a 0.2C discharge per IEC 61960-3:2017}

FEATURES & BENEFITS

SPECIFICATIONS

PRODUCT LITERATURE

Same battery. Many applications.

Swappable test

FEATURES & BENEFITS

Zero Noise & Emissions¹

Supporting a greener environment and allows the application to be used indoors.

Maximum Efficiency

Designed to deliver a 2.000 cycle lifespan with virtually no scheduled maintenance.

Uncomplicated Troubleshooting

Diagnostic protocols use standard CANbus procedures.

Flexible, Integrated System

The integrated Lithium-Ion battery system delivers versatile power and performance that can be configured for multiple capacities and voltages.

Effortless Integration

There are two CANbus ports so OEMs can easily exchange information with the battery pack. One CANbus uses the J1939 automotive standard, while the other is designed for uncomplicated data transfer with the OEM's current communication network: No reprogramming of that network is required.

Consistently Delivering Confidence

The integrated Battery Management System (BMS) continuously tracks voltage and temperature, ensuring reliable monitoring.

_{¹The battery pack is silent, however the application itself may make noise. Zero emissions apply only to the battery pack during operation.}

POPULAR MARKETS & APPLICATIONS

Landscape & Agriculture

Vanguard battery solutions offer reliable power, reducing fuel costs and maintenance, while supporting sustainable farming and boosting productivity in all conditions.

Example applications:

Wood Chipper

Blowers

Rental

Easy-starting and maximum uptime—just what fleets need. Vanguard’s power solutions are backed by a strong training program for superior service and maintenance.

Example application:

Demolition Robot

Our various partners trusted in Vanguard power solutions and experienced a great succes.

You want to know how they did?

DISCOVER OUR CASE STUDIES

SPECIFICATIONS

Fi Series Name	Fi3.5
Model Number	80127410
Nominal Voltage (V)	51,6
Top Voltage (V) per IEC 61960	29,4
Cutoff Voltage (V)	17,5
Nominal Capacity per IEC 61960	135,9 Ah / 3,5 kWh
Communication Protocols	CAN J1939
Discharge Temperature Range	-20°C to +60°C
Charging Temperature Range	0°C to +45°C
Marketed Durability Hours/Cycles	Up to 2.000 cycles to 80% initial capacity
Parallel Capable	Yes, up to 10 batteries
Rated Discharging current	200
Battery Series	Fixed
Ingress Protection Rating
Warranty	Vanguard offers an 8 year commercial limited warranty for all lithium-ion battery packs. Get more information about our warranties.
Operator Manuals	Download Operator Manuals

_{* Total energy measured using a 0.2C discharge per IEC 61960-3:2017}

RELATED PRODUCTS

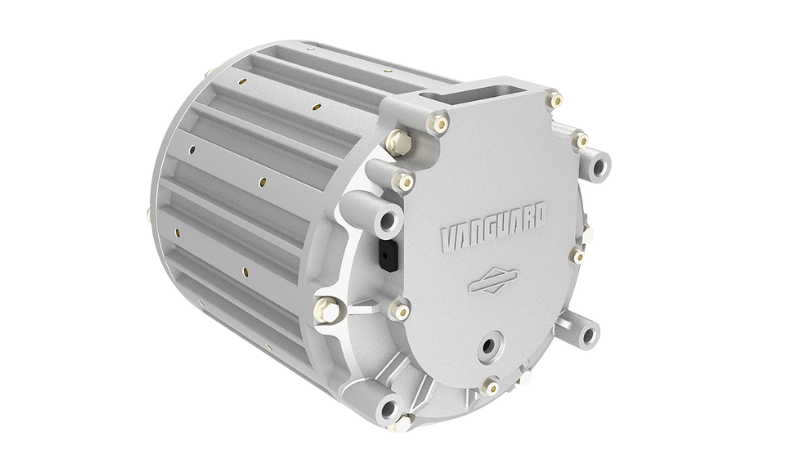

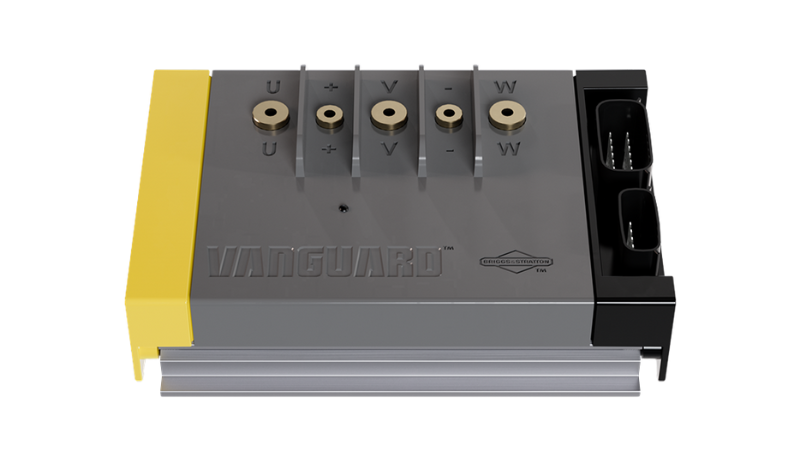

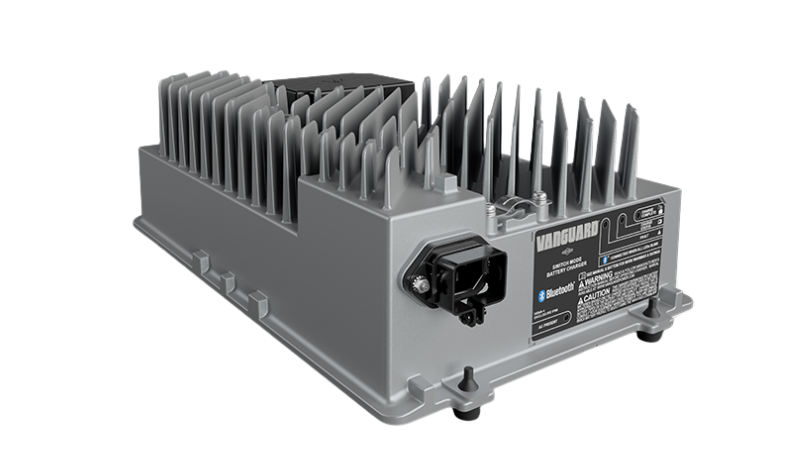

The Vanguard™ battery system solution offers a complete set of advanced lithium-ion battery packs, high-performance motors, motor controllers, and efficient chargers. Designed for seamless integration, these components work harmoniously to deliver an exceptionally balanced, powerful, and reliable energy solution. Get the full Vanguard™ system today for superior performance!
