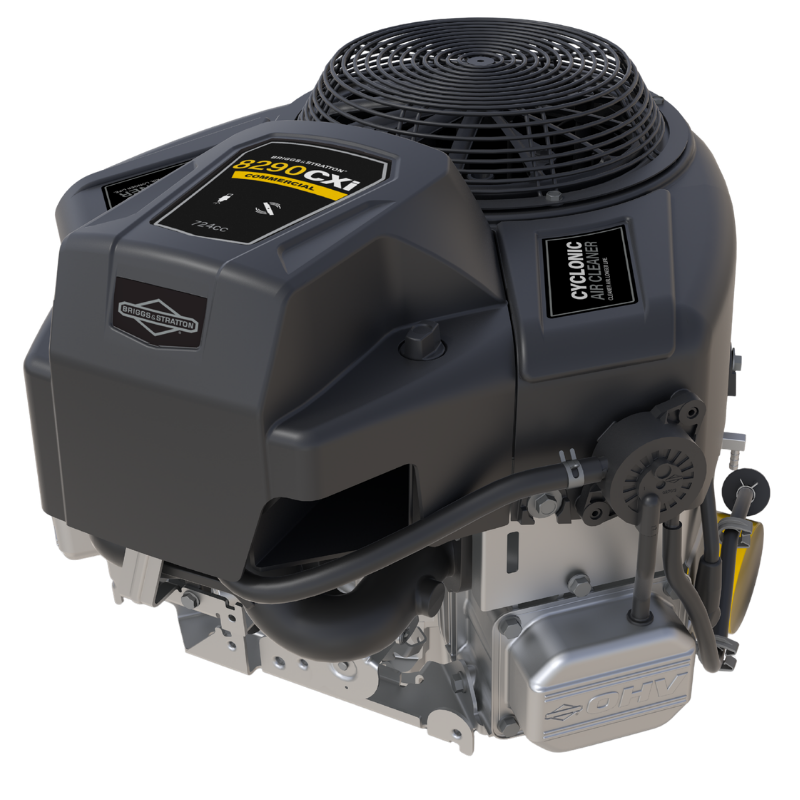

8290CXi Series 18,7 Gross kW

V-TWIN VERTICAL SHAFT ENGINE



BUILT TO TACKLE TOUGH JOBS




The Briggs & Stratton 8290CXi Series commercial vertical shaft engine is engineered for demanding commercial applications. Utilizing Over Head Valve (OHV) technology and a V-Twin layout, this engine delivers true commercial power in a well-balanced design. Built to tackle tough jobs with ease, it offers superior power, efficient fuel consumption, and impressive durability. Ideal for zero-turn mowers and other heavy-duty lawn care equipment, the CXi Series features enhanced debris management and easy maintenance, ensuring reliability and minimal downtime - perfect for the rental and commercial turf sector.
  • High Performance

    Delivers robust power and torque for demanding commercial applications.

  • Convinient operation

    Provides smoother operation with reduced vibrations for increased user comfort.

  • Power for tough turf tasks

    Ideal for zero-turn mowers and other heavy-duty lawn care equipment.

  • Durable companion

    Built to withstand tough conditions, ensuring long-lasting reliability.


Cxi Series 8290

FEATURES & BENEFITS

Oil Extend™

(Optional)

Boosts uptime by extending maintenance intervals to 250 hours — 2.5 times longer than the 100-hour industry standard.

View Details
CXi 8290 Engine-oil-extend-preview
  • Superior Debris Management

    The patented 5-step debris management system with integrated cyclonic air cleaner and chopper fan extends durability under heavy debris conditions and long service intervals.

  •
  • V-Twin OHV Technology

    V-Twin engine design provides better balance and allows for increased power. OHV technology optimizes performance for a longer engine life and enhanced fuel economy.

  •
  • More Useable Power

    The high torque cam design creates more usable power for the toughest conditions.


  •

commercial-series_v-twin-ohv-technology2
Superior Debris Management

  • Extended Engine Life

    Maximum lubrication and critical engine components protection. The spin-on filter keeps oil cleaner for an extended engine life. Dual ball bearings provides added durability and extends engine life.

  •
  • Strength and Durability

    The commercial-grade block and sump provide superior durability. The cast iron cylinder sleeve also adds integrity and durability that withstand wear and abuse while providing improved oil control.

  •
  • Reduced Engine Vibration

    The high inertia flywheel allows for an improved shock load acceptance which translates to reduced engine vibration and smooth and consistent power.

  •

* Oil wastage has been reduced by 50% over the leading competitor based on service recommendations per the engine manufacturer's operators manual.

** Refer to equipment operators manual for usage instructions.



POPULAR MARKETS & APPLICATIONS

Vanguard Pointer grey 1200x50
Commercial-turf-market-rectangle


Commercial Turf

From heavy-duty zero-turn mowers to commercial-grade blowers, Vanguard delivers the power needed to keep turf professionals ahead.

Example applications: Zero-Turn-Mower, Lawn Tractors



Rental-market-rectangle


Rental

Easy-starting and maximum uptime—just what fleets need. Vanguard’s power solutions are backed by a strong training program for superior service and maintenance.

Example applications: Zero-Turn-Mower, Lawn Tractors




SPECIFICATIONS

Vanguard Pointer grey 1200x50
Eingine Type V-Twin, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number  44T9
Gross Torque (Nm) @ 3'600 rpm  47,48
Gross kW* @ 3'600 rpm  18,7
Gross HP* @ 3'600 rpm  25
Displacement (cc)  724
Cylinder Cast iron sleeve
Bore & Stroke (mm) 79,2 x 73,4
Fuel Tank Capacity (l) NA
Oil Capacity (l) 1,9
Compression Ratio 8.5 : 1
Air Cleaner Integrated Cyclonic Air Cleaner
Ignition System Magnetron® Electronic Ignition
Lubrication System Full Pressure Lubrication with Oil Filter
Dimensions L x W x H (mm) 497 x 462 x 399
Dry Weight (kg)  39
Optional
  • Oil Pressure Switch
  • CARB Compliant Purge Ports and 6,5 Liter Fuel Tank
  • Recoil Starter
  • High Flow Static Cover
  • Flexible Oil Drain Extension
  • Alternators (9,16 amp)
  • Exhaust Mounting Studs
  • Straight Keyed (1" & 1-1/8" Diameters)
  •  Vanguard Oil Xtend™ system
Warranty

3-year-warranty-badge-200x200

Additional 1 year warranty for registered engines. Get more information about our warranties.
Operator Manuals

Vanguard-Manuals-icon-200x200

Download Operator Manuals
All Vanguard engine specifications are European Stage 5 and EPA Phase 3 emissions compliant.

 * Power levels are stated gross kilowatts per SAE J1940 as rated by Briggs & Stratton.
** See operator's manual or dealer for complete warranty details.

Power Curve

6444Y 8290CXi Series V-Twin



25 HP GROSS POWER*

* Power Ratings: The gross power rating for individual gasoline engine models is labelled in accordance with SAE (Society of Automotive Engineers) code J1940 Small Engine Power & Torque Rating Procedure, and is rated in accordance with SAE J1995. Torque values are derived at 2600 RPM for those engines with "rpm" called out on the label and 3060 for all others; horsepower values are derived at 3600 RPM. The gross power curves can be viewed at www.briggsandstratton.com. Net power values are taken with exhaust and air cleaner installed whereas gross power values are collected without these attachments. Actual gross engine power will be higher than net engine power and is affected by, among other things, ambient operating conditions and engine-to-engine variability. Given the wide array of products on which engines are placed, the gasoline engine may not develop the rated gross power when used in a given piece of power equipment. This difference is due to a variety of factors including, but not limited to.the variety of engine components (air cleaner, exhaust. charging, cooling, carburettor. fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this engine.
