VANGUARD™ 1425W CHARGER PORTABLE

LITHIUM-ION BATTERY CHARGER



 The Vanguard™ Portable 1425W Charger is your go-to solution for charging the revolutionary Si1.5 swappable commercial battery. Equipped with a fan-less passive cooling system, it delivers safe, silent operation for hassle-free use. The charger features Bluetooth connectivity, allowing you to track charging status and diagnostics in real-time via the Vanguard™ Lithium app. Designed for convenience, it plugs into standard wall outlets and supports parallel charging to minimize charging times. The easy docking system simplifies the process of swapping and charging batteries, while LED indicators provide clear, at-a-glance updates on charging progress. Offering reliable and fast performance, the Vanguard™ 1425W Portable Charger is essential for efficient power management and seamless battery transitions.

  • Works seamlessly with the Vanguard Si1.5 swappable commercial battery.

  • Easy, all-in-one unit to make charging as quick and simple as possible.

  • Equipped with Bluetooth capabilities for monitoring AC input and DC output specifications.


  • Uses same dock that is used on equipment for easy common and user interaction.

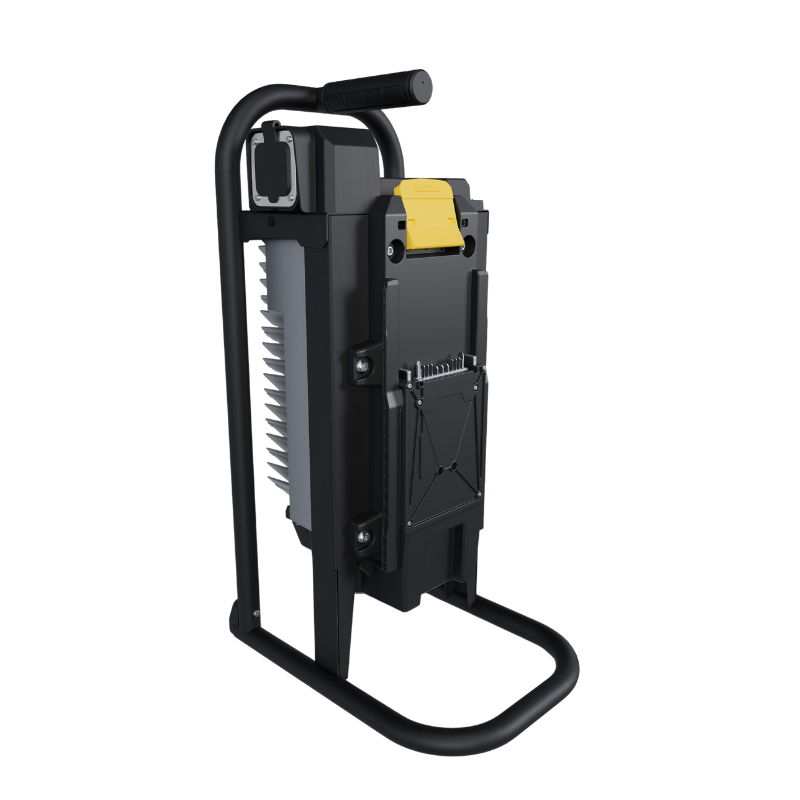

Vanguard-1425W-charger-swappable-battery-1-2

FEATURES & BENEFITS
  • Vanguard Lithium App

    The Vanguard Lithium app connects to your charger with Bluetooth communication and is readily available in the app store.

  • Efficient Charging

    Charges the Si1.5 swappable battery to 100% in just 75 minutes*.

  • Designed for Your Safety

    Built with cooling fins, our chargers dissipate heat. Passive cooling allows you to both safely and effectively charge your batteries.

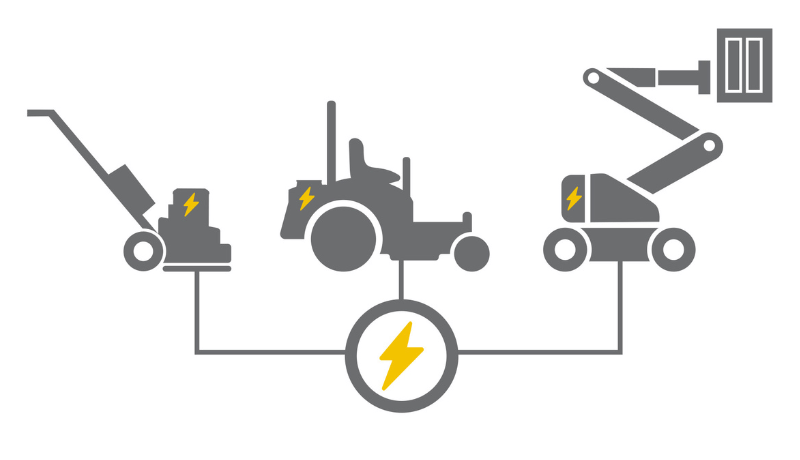

Charger-feature-many-applications



*Based on nominal temperatures, charge will vary at the extremes
Charger-feature-fast-charging
  •
  • Powerful And Convenient

    The most powerful fan-less on/off-board charger that works on a standard wall outlet.



  • Safe Charging

    The Vanguard charger is built with cooling fins that dissipate heat. Passive cooling allows you to both safely and effectively charge your Vanguard batteries.

  • Supports Many Applications

    This charger gives Vanguard batteries the power it needs to support applications in the recreation, floor care, industrial, and outdoor power equipment markets.





SPECIFICATIONS

Vanguard Pointer grey 1200x50
 Charger Type  Si Series 1425W single-bay-mounted charger with Bluetooth® monitoring
Model Number  80126934
Charging Rate (A / kW) 30 / 1,425
Enclosure Rating IP44, NEMA 4
Voltage Range, Rated (AC Input) 100-240 Vac
 Voltage Range, Operating (AC Input)  85-265 VAC (< 108 Vac: reduced power)
Frequency, Rated (AC Input) 50-60 Hz
Frequency, Operating (AC Input) 45-65 Hz
Phase (AC Input) Single-phase
Current, Maximum (AC Input) < 15 A
Efficiency (AC Input) < 91% peak
Protection (AC Input) Current limit, surge, transient, under voltage, over voltage
Power (DC Output) 1425W
 Top Voltage (V)  48 VDC
 Current Maximum (DC Output)  30 A
 Protection (DC Output)  Current limit, short circuit, reverse polarity, under voltage, over voltage, wrong battery voltage
 Voltage, Min Start-up (DC Output)  10 Vdc
Operating Temperature Range                  -25°C to 60°C
Storage Temperature Range -40°C to 85°C
Dimensions L x W x H (mm) 621 x 353,7 x 263,4
Weight (Kg)
 12,7
Warranty

Vanguard-4-year-battery-badge-200x200

 4 year commercial limited warranty for all lithium-ion battery chargers. Get more information about our warranties.
Operator Manuals

 Download Operator Manuals



PRODUCT LITERATURE

Vanguard Pointer grey 1200x50



VANGUARD BATTERY TECHNOLOGY

Vanguard Pointer grey 1200x50

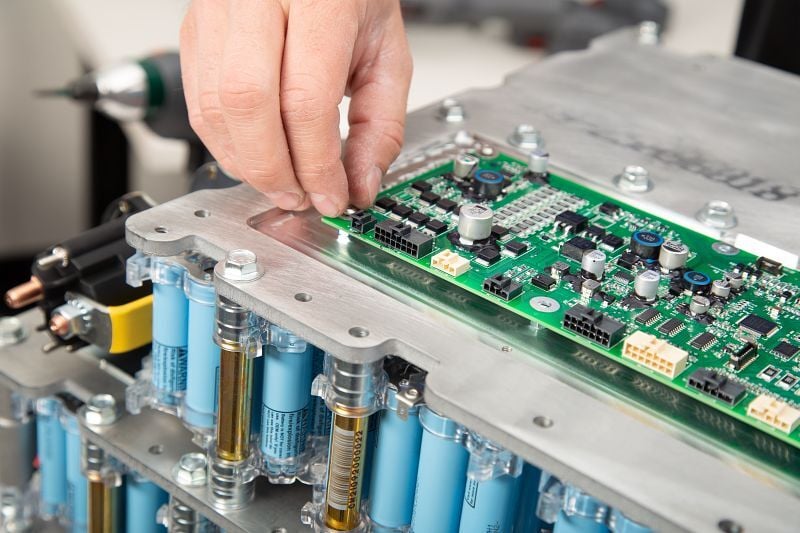

VanguardBattery-Technology
