WHAT IS THE RIGHT SPARK PLUG & GAP FOR MY ENGINE?

- This FAQ article applies to all Vanguard engines -

Checking and changing spark plugs is an essential step in routine engine maintenance and when troubleshooting problems with your outdoor power equipment. Before doing any engine repair or maintenance, be sure to check your manual for recommendations on specific parts numbers and safety precautions.

> Find your spark plug type & gap

Spark plug and gap

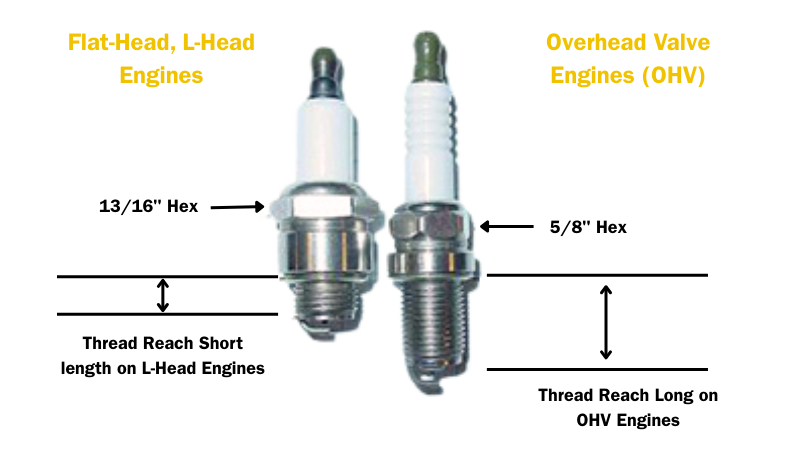

There are different types of spark plugs so be sure to use the correct one before replacing. You can see the different types shown to the left.


CAUTION!
 Be sure to use the right spark plug! Although several different spark plugs may screw into the engine, using the incorrect one will result in performance problems and possible internal engine damage.

Replacement Part Type Replacement Spark Plug Part Number Spark Plug Gap
Standard Plug 992304 (RC12YC - Resistor) .030"
Platinum Extended Life* 496018E (RC14YC - Resistor - Hot) .030"
Gold Terminal (EMS)** 691043 (QC12YC) .030"
Resistor (EMS)*** 792015 (XC92YC) .030"

*Used in cold climate for better cold starts and extended life - less need to change
**Used on emergency medical equipment
***Used on emergency medical equipment or regular equipment

> Where is the spark plug located on my engine?

yellow arrow

Due to the variety of engine and equipment configurations, your best source for spark plug information is your engine or equipment Operator's Manual. However, the following general guidelines will get you pointed in the right direction.

yellow arrow

For information regarding the service/replacement of spark plugs, please visit our servicing the spark plug FAQ. Please be aware that the size/shape of the spark plug varies depending on engine design.

> Spark plug location: Horizontal Engines

Spark Plug Horizontal Shaft Engines Single Cylinder
Spark Plug Horizontal Shaft Engines V-Twin
Spark Plug Horizontal Shaft Engines V-Twin

> Spark plug location: Vertical Engines

Spark Plug Vertical Shaft Engines V-Twin
Spark Plug Vertical Shaft Engines V-Twin
Spark Plug Vertical Shaft Engines V-Twin
